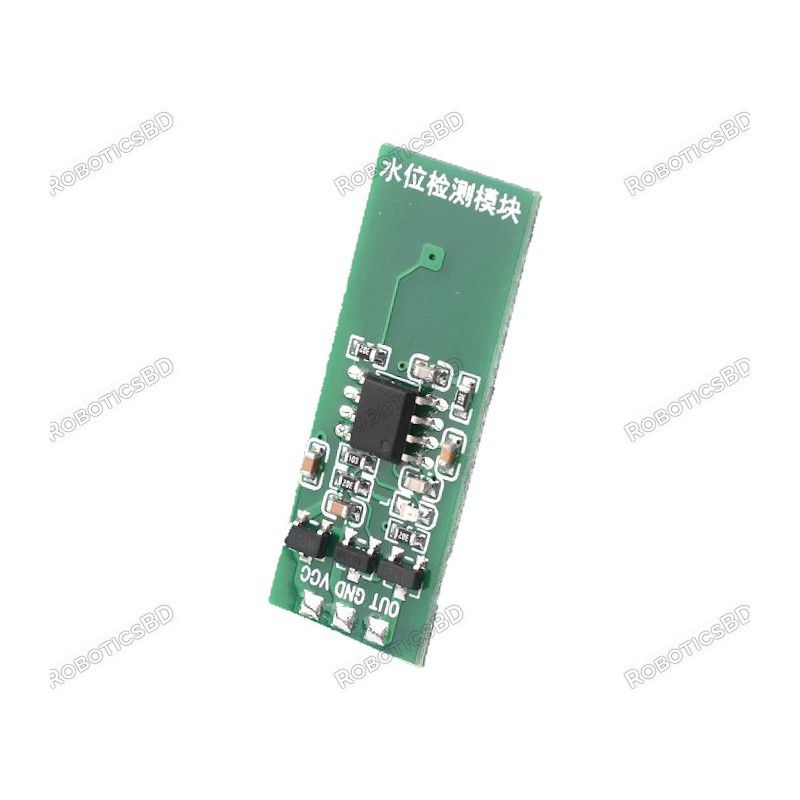

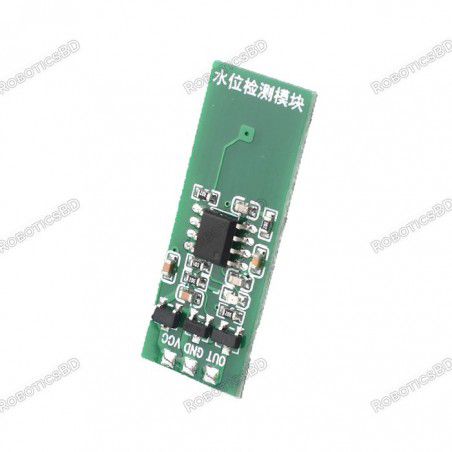

Product Description: The M03/M04 Non-Contact Liquid Level Detection Module Sensor offers reliable liquid level sensing without direct contact, ensuring convenience and accuracy in various applications. Designed for durability and refined performance, this module extends service life while providing accurate liquid level detection.
Key Features:
- Non-Contact Sensing: Enables liquid level detection without the need for direct contact, minimizing contamination and facilitating hassle-free operation.
- Durable Construction: Built to withstand harsh environments, ensuring long-lasting performance even in challenging conditions.
- Versatile Power Supply Options: M03 operates within a power supply voltage range of 3.3-5V, while M04 supports a wider range of 3.3-26V (recommended not to exceed 24V).
- Sensing Distance: Generally detects liquid levels within a range of 3mm-4.5mm (not applicable to metal materials).
- Compact Design: Compact product size of 10mm x 30mm, allowing for easy integration into various applications.
- Interface Description:
- GND: Power supply ground (0V)
- VCC: Power supply positive (+), supporting 3.3-5V for M03 and 3.3-26V for M04.
- OUT: Outputs high level without induction and low level with induction.
FAQ:
- Question: If the M04 input is 12V, how do I connect the pull-up resistor? Answer: Depending on the connected device, pull it up to 5V or 3.3V if connected to a microcontroller port. The voltage can be adjusted according to the device's specifications.
- Question: Can it be connected to a microcontroller or Arduino? Answer: Yes, the open-drain output allows for connection to PLCs, microcontrollers, or other equipment. M03 can be directly connected to an Arduino microcontroller, while M04 requires a pull-up resistor for open-drain output.
- Question: What is the working principle? Answer: Liquid output is low level when detected by the inductor and high level when not detected.
- Question: Can I buy the chip alone? Answer: Yes, the chip is available for purchase separately.
Enhance your liquid level detection applications with the reliable and versatile M03/M04 Non-Contact Liquid Level Detection Module Sensor, offering precise sensing and easy integration into your projects without the need for direct contact.
