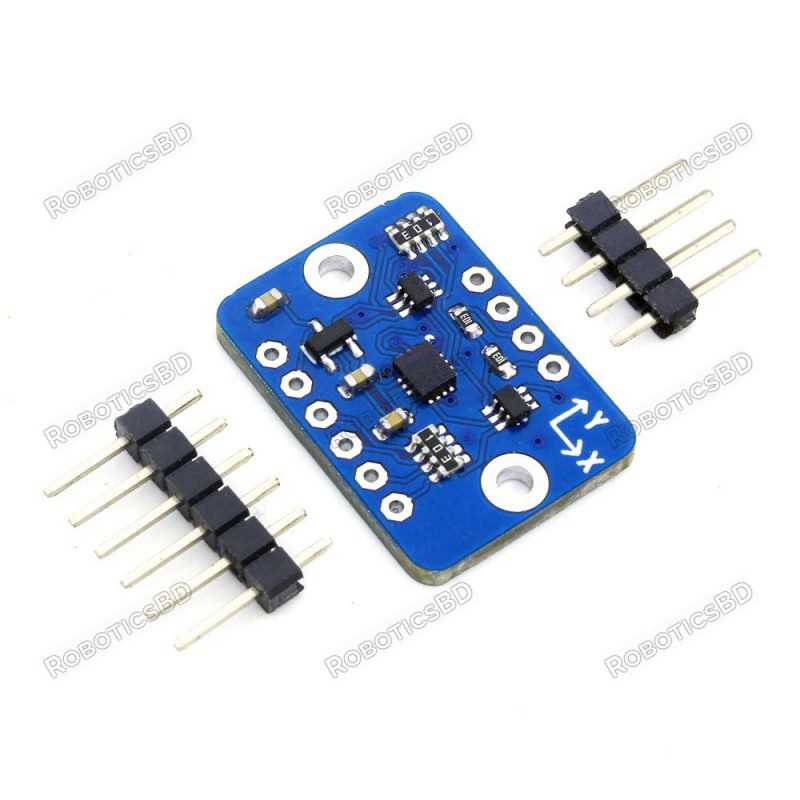

LSM6DS3TR-C IMU 3D digital Accelerometer & Gyroscope Module

RBD-2329

The LSM6DS3TR-C is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope performing at 0.90 mA in high-performance mode and enabling always-on low-power features for an optimal motion experience for the consumer.

BDT 1,150.00
BDT 1,150.00 BDT 1,150.00 BDT 1,150.00 BDT 1,150.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,150.00 Tax excluded
BDT 1,150.00 Tax included
BDT 0.00 Tax
BDT 1,150.00 Tax excluded
BDT 0.00 Tax
BDT 1,150.00 Tax included
Quantity
6 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The LSM6DS3TR-C is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope performing at 0.90 mA in high-performance mode and enabling always-on low-power features for an optimal motion experience for the consumer.

The LSM6DS3TR-C supports main OS requirements, offering real, virtual and batch sensors with 4 kbyte for dynamic data batching.

ST’s family of MEMS sensor modules leverages the robust and mature manufacturing processes already used for the production of micromachined accelerometers and gyroscopes.

The various sensing elements are manufactured using specialized micromachining processes, while the IC interfaces are developed using CMOS technology that allows the design of a dedicated circuit which is trimmed to better match the characteristics of the sensing element.

The LSM6DS3TR-C has a full-scale acceleration range of ±2/±4/±8/±16 g and an angular rate range of ±125/±250/±500/±1000/±2000 dps.

High robustness to mechanical shock makes the LSM6DS3TR-C the preferred choice of system designers for the creation and manufacturing of reliable products.

All features

  • Always-on” experience with low power consumption for both accelerometer and gyroscope
  • Power consumption: 0.90 mA in combo high-performance mode
  • Smart FIFO up to 4 kbyte based on features set
  • Android M compliant
  • Hard, soft ironing for external magnetic sensor corrections
  • ±2/±4/±8/±16 g full scale
  • ±125/±250/±500/±1000/±2000 dps full scale
  • Analog supply voltage: 1.71 V to 3.6 V
  • Independent IO supply (1.62 V)
  • Compact footprint, 2.5 mm x 3 mm x 0.83 mm
  • SPI & I2C serial interface with main processor data synchronization
  • Pedometer, step detector and step counter
  • Significant motion and tilt function
  • Standard interrupts: free-fall, wakeup, 6D/4D orientation
  • Embedded temperature sensor
Applications

  • Pedometer, step detector and step counter

  • Significant motion and tilt functions

  • Indoor navigation

  • Tap and double-tap detection

  • IoT and connected devices

  • Intelligent power saving for handheld devices

  • Vibration monitoring and compensation

  • Free-fall detection

  • 6D orientation detection

Product Details
RBD-2329
6 Items

Specific References

EAN13
2329
