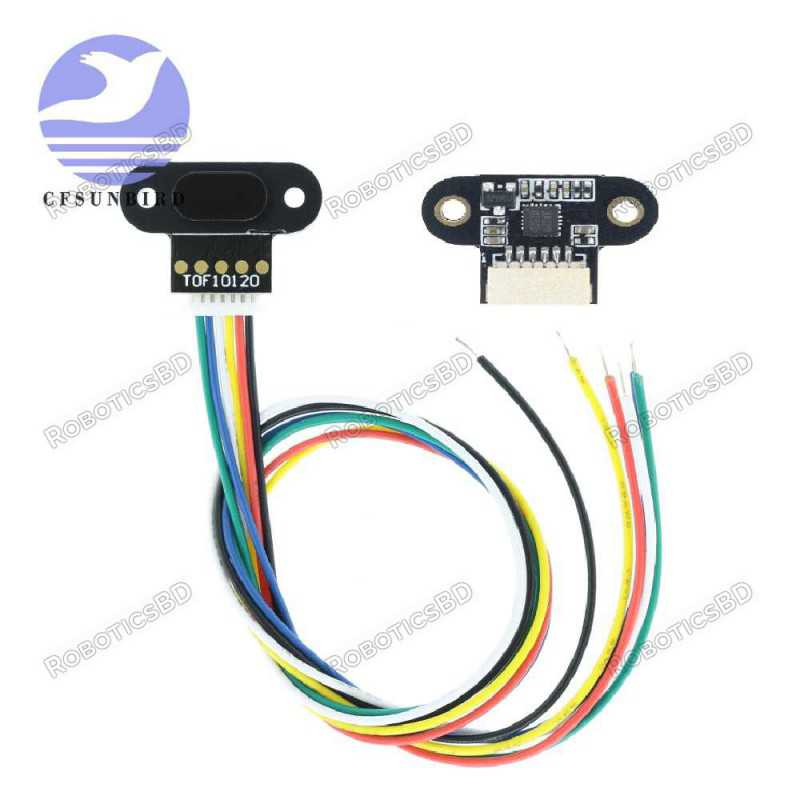

TOF10120 Laser Range Sensor Module Distance Sensor

RBD-1644

  • 940nm laser classified as class 1 under operation condition by IEC 60825-1:2014-3rd edition
  • Small ceramic package(20×13.2×2.0mm)
  • Long range absolute range measurement up to 1.8m within 5% accuracy at indoor
BDT 1,575.00
BDT 1,575.00 BDT 1,575.00 BDT 1,575.00 BDT 1,575.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,575.00 Tax excluded
BDT 1,575.00 Tax included
BDT 0.00 Tax
BDT 1,575.00 Tax excluded
BDT 0.00 Tax
BDT 1,575.00 Tax included
Quantity
In-Stock
8 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF).

The innovative time-of-flight technology allows performance independent of object reflectance.TOF10120's time-of-flight sensing technology is realized by Sharp's original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Cable:

  1. GND Black
  2. VCC Red
  3. RXD Yellow
  4. TXD white
  5. SDA blue
  6. SCL purple

Features:

  1. Operates in high infrared ambient light levels
  2. Advanced optical cross-talk compensation
  3. High speed ranging MAX 30ms
  4. Standard solder reflow compatible
  5. No additional optics
  6. Single power supply
  7. Txd interface for device control and data transfer
  8. High-speed AF
  9. Continuous AF for video
  10. User detection for Personal Computers
  11. Laptops/Tablets
  12. Robotics (obstacle detection)
  13. White goods (hand detection in automatic

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Ranging Range 100 - 1800mm
VCC: 3 - 5V DC
ICC_VDD: 35mA
Topr - - 20 + 70 °C
Tstg - 40 + 85 °C
Communication protocol
Bits per Second: 9600
Data Bits : 8
Parity : None
Stop bits : 1
Flow Control : None
Shipment Weight 0.015 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x TOF10120 Laser Range Sensor Module Distance Sensor..
