Passive Buzzer Module is a built-in construction of digital transducers, DC energy provides, extensively utilized in computer systems, printers, copiers, alarms, digital toys, car digital apparatus, phones, timers and different digital electronics projects for Alert sound. Featured By RoboticsBD.
This PCB Mounted Passive Buzzer Module can produce a range of sound tones depending on the input frequency, i.e it can generate tones between 1.5 to 2.5 kHz by switching it on and off at different frequencies either using delays or PWM. Featured By RoboticsBD.
This module is ideally suited to adding noise to your project and is compatible with a pin pitch of 2.54mm while functioning with microcontrollers such as the Arduino. This module lets you respond to programmatic changes with a lovely annoying buzzer that can be altered over a range of frequencies to ensure maximum irritation. Featured By RoboticsBD.
To operate the I/O pin must receive a square wave to trigger the buzzer. This can be produced within all popular microcontrollers. Featured By RoboticsBD.

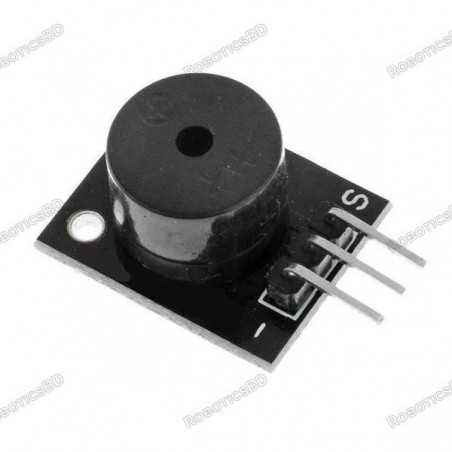

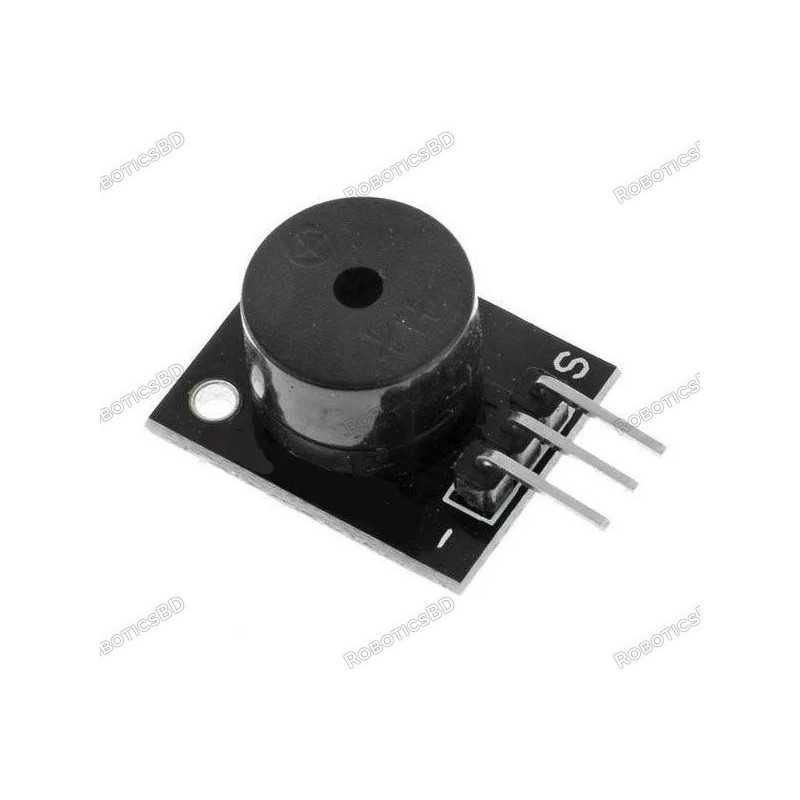

Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Note: PCB might be different from the picture as per stock
Connection Diagram:
Connections:
- Arduino: Buzzer
- GND: (minus sign)
- Center pin: No connection
- Any digital pin: S
Features:
- Operating Voltage : 1.5 ~ 15V DC
- Working Current: Less than 25mA
- Material: Plastic
- Tone Generation Range : 1.5 ~ 2.5kHz
- Dimensions (LxWxH): 26 x 15 x 11 mm
- Colour: Black
- Weight: 3g
| General Specification |
| Operating Voltage (VDC) |
1.5 ~ 15 |
| Max. Operating Current (mA) |
25 |
| Tone Generation Range (kHz) |
1.5 ~ 2.5 |
| Length (mm) |
15 |
| Width (mm) |
19.7 |
| Height (mm) |
10 |
| Weight (gm) |
1 (approx) |
| Shipment Weight |
0.01 kg |
| Shipment Dimensions |
12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
Documentation:
- The following Arduino Sample sketch will generate two different tones by turning on and off the buzzer at different frequencies using a delay.
-
int buzzer = 8; // set the buzzer control digital IO pin
void setup() {
pinMode(buzzer, OUTPUT); // set pin 8 as output
}
void loop() {
for (int i = 0; i < 80; i++) {
digitalWrite(buzzer, HIGH); // make a sound
delay(1); // send high signal to buzzer
digitalWrite(buzzer, LOW); // delay 1ms
delay(1); // send low signal to buzzer
}
delay(50);
for (int j = 0; j < 100; j++) {
digitalWrite(buzzer, HIGH); //make another sound
delay(2);
digitalWrite(buzzer, LOW); // delay 2ms
delay(2);
}
delay(100);
}
Package Includes:
1 x PCB Mounted Passive Buzzer Module
