Digital Electronic Weighing Sensor (Scale 1 Kg)
  • Digital Electronic Weighing Sensor (Scale 1 Kg)
  • Digital Electronic Weighing Sensor (Scale 1 Kg)
  • Digital Electronic Weighing Sensor (Scale 1 Kg)

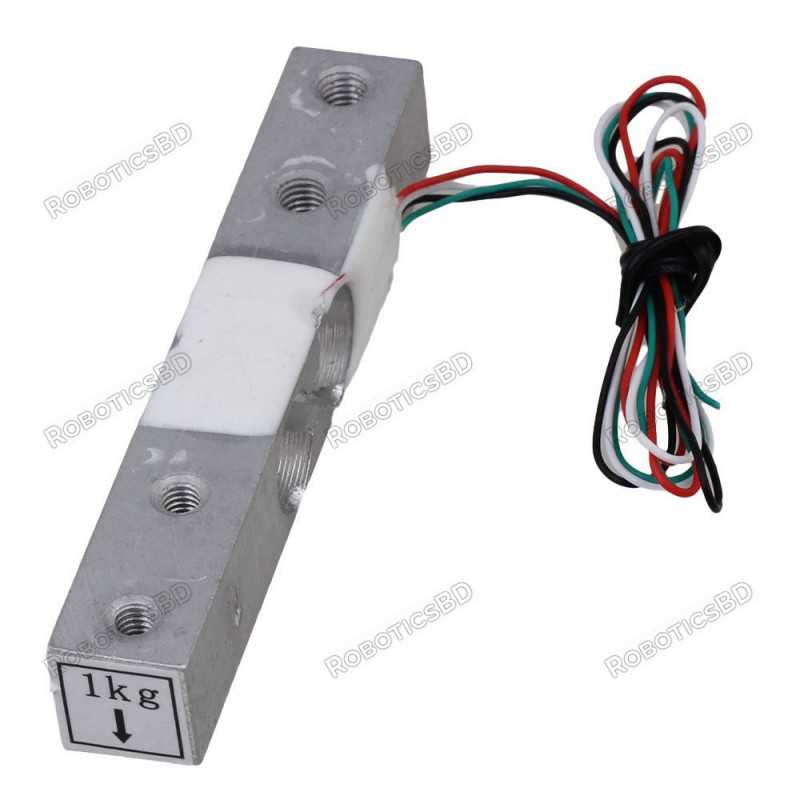

Digital Electronic Weighing Sensor (Scale 1 Kg) Loadcell

RBD-0551

  • Weighing Range: 0 ~ 1 kg.
  • Rated Output: 1.0 ± 0.1mV / V.
  • Non Linear Output: ± 0.03% F.S.
  • Input Impedance: 1066 ± 10% Ω.
  • Output Impedance: 1000 ± 10% Ω.
  • Insulation Resistance: 2000 MΩ. RoboticsBD
BDT 300.00
BDT 300.00 BDT 300.00 BDT 300.00 BDT 300.00
Tax included Tax excluded Tax included Tax excluded
BDT 300.00 Tax excluded
BDT 300.00 Tax included
BDT 0.00 Tax
BDT 300.00 Tax excluded
BDT 0.00 Tax
BDT 300.00 Tax included
Quantity
In-Stock
26 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This weighing Load Cell Sensor (sometimes called a strain gauge) can translate up to 1 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. RoboticsBD

With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight

It has Four lead wires which can be connected to  HX711 A/D Pressure Sensor.  It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it.

Installation of the Sensor is also the simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Connection Diagram with Arduino via HX711:

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model YZC-131
Material Aluminium
Dimensions in mm (LxWxH) 75 x 12.6 x 12.6
Weighing Range (Kg) 0 ~ 1
Rated Output 1.0 ± 0.1mV / V
Non Linear Output ± 0.03% F.S
Impedance (Ω) 1066 ± 10% Ω
Output Impedance 1000 ± 10% Ω
Insulation Resistance (MΩ) 2000
Hysteresis 0.03% F.S
Repeatability 0.03% F.S
Creep (5 minutes) 0.05% F.S
Zero Balance ± 0.1 mV / V
Cable Length (cm) 18
Operating Temperature Range (°C) -20 to 65
Weight (gm) 26
Shipment Weight 0.08 kg
Shipment Dimensions 12 × 5 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Weighing Load Cell Sensor 1Kg for Electronic Scale.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0551
26 Items

Specific References

EAN13
0551
