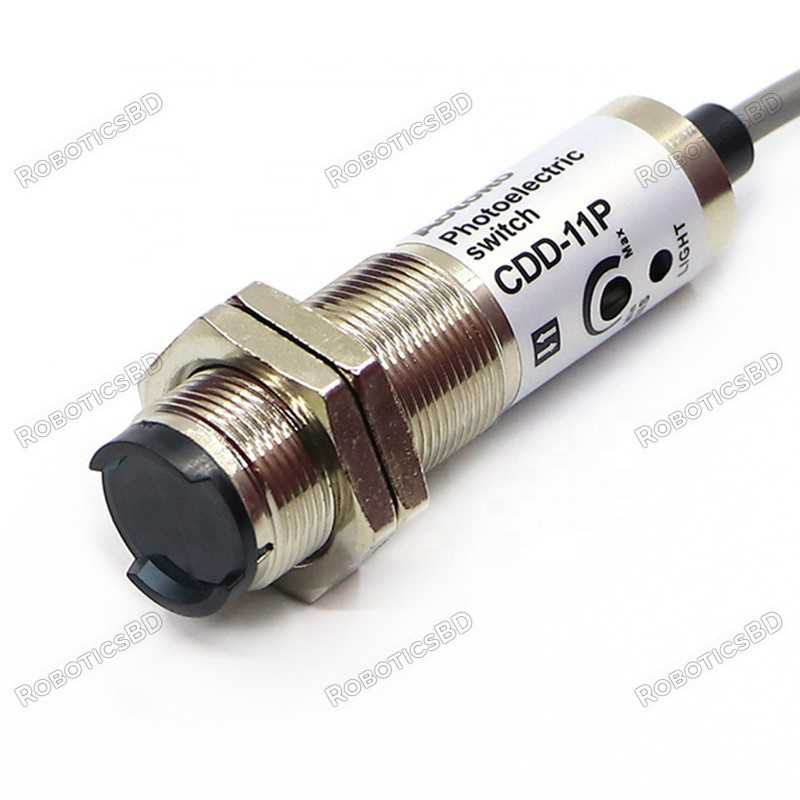

Photoelectric Sensor CDD-11P Diffuse PNP Infrared Metal Body NO+NC

RBD-1858

  • CDD-11P PNP Output
  • Photoelectric sensor
  • Epoxy filled housing ensures resistance to vibration
  • Rigid Nickel Plated Brass housing
This is PNP Output CDD-11P. For NPN Output CDD-11N please check here.
BDT 1,500.00
BDT 1,500.00 BDT 1,500.00 BDT 1,500.00 BDT 1,500.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,500.00 Tax excluded
BDT 1,500.00 Tax included
BDT 0.00 Tax
BDT 1,500.00 Tax excluded
BDT 0.00 Tax
BDT 1,500.00 Tax included
Quantity
In-Stock
19 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Photoelectric sensors work by converting changes in light intensity into changes in electrical signals to achieve control. A photoelectric switch is a small electronic device that detects changes in the intensity of the light it receives. Photoelectric sensor is usually composed of three parts, they are transmitter, receiver and detection circuit.

SMT automatic film production process, better consistency Strict process management All processes are in strict accordance with the standard documents to implement the ISO9001 management measures. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Packaging
  2. Positioning
  3. Quality Assurance

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. EASY TO INSTALL CYLINDRICAL
  2. SHORT CIRCUIT PROTECTION. REVERSE POLARITY PROTECTION
  3. LONG DISTANCE LENS
  4. STRONGE COPPER

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model CDD-11P
Type Reflective photoelectric sensor diffuse type.
Dimensions 69 L x 18 D mm.
Sensing distance 11 (cm).
Operating temperature -25 to 55 degrees C.
Operating Voltage 10-30 VDC (including ripple 10%).
Light source Infrared.
Output PNP open drain, 100mA / 30VDC.
Response Time 1.5 (ms).
Lag phase 10% Max.
Shipment Weight 0.065 kg
Shipment Dimensions 11 × 11 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x Photoelectric Sensor CDD-11P Diffuse PNP Infrared Metal Body NO+NC
