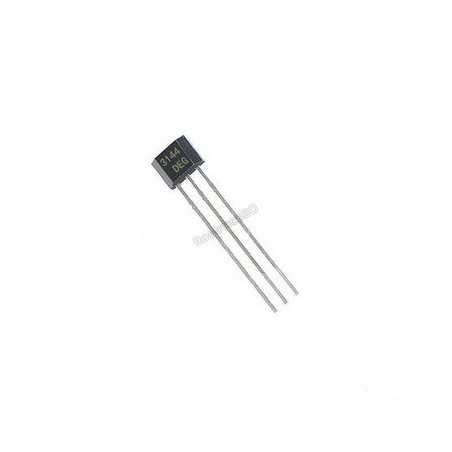

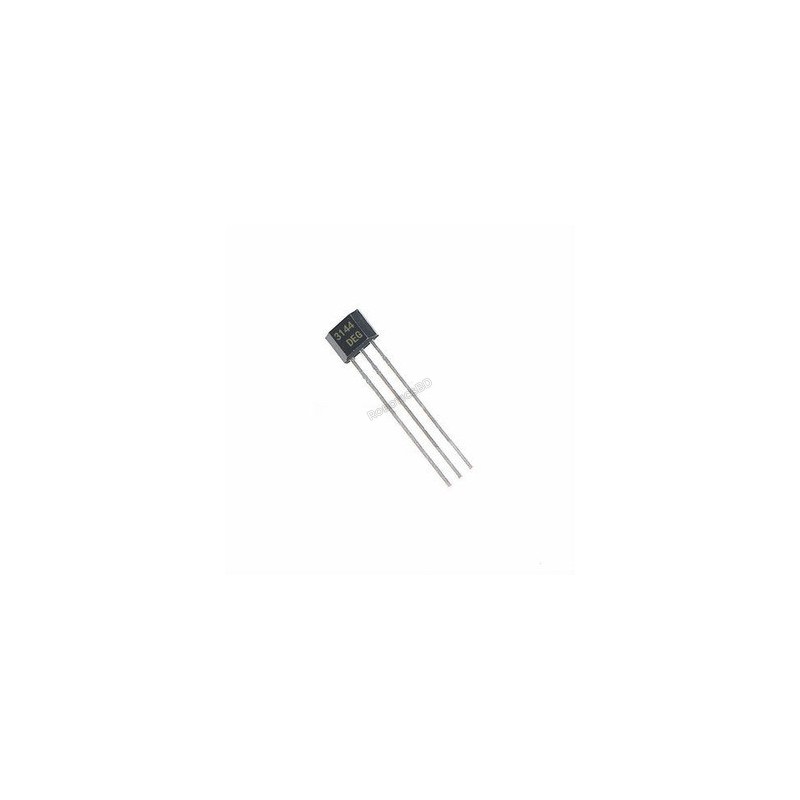

Hall Effect Sensor 6851/A3144 Robotics Bangladesh
  • Hall Effect Sensor 6851/A3144 Robotics Bangladesh
  • Hall Effect Sensor 6851/A3144 Robotics Bangladesh

Hall Effect Sensor 6851/A3144

RBD-1192

  • Digital Output Hall-effect sensor.
  • Operating voltage: typically 5V.
  • Output Current: 25mA.
  • It can be used to detect both the poles of a magnet.
BDT 28.00
BDT 28.00 BDT 28.00 BDT 28.00 BDT 28.00
Tax included Tax excluded Tax included Tax excluded
BDT 28.00 Tax excluded
BDT 28.00 Tax included
BDT 0.00 Tax
BDT 28.00 Tax excluded
BDT 0.00 Tax
BDT 28.00 Tax included
Quantity
In-Stock
6 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The A3144 Hall Effect Sensor Magnet Detector Switch for Arduino is a switch that will turn on/off in the presence of a magnetic field. If no magnetic field is present, the signal line of the sensor is HIGH (3.5 V). If a magnetic field is presented to the sensor, the signal line goes LOW, at the same time the LED on the sensor lights up. An onboard LED will also indicate the presence of a magnetic field. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Digital Output Hall-effect sensor.
  2. Operating voltage: typically 5V.
  3. Output Current: 25mA.
  4. It can be used to detect both the poles of a magnet.
  5. The output voltage is equal to the operating voltage.
  6. Operating temperature: -40°C to 85°C.
  7. Turn on and Turn off time is 2 μsec each.
  8. Inbuilt reverse polarity protection.
  9. Suitable for Automotive and Industrial Applications.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Color Black
Operating Voltage (VDC) 5
Power Consumption at Rest 3mA
Power Consumption when Switched 8mA
Operating Temperature (°C) -40 to 90
Length (mm) 20
Width (mm) 16
Weight (gm) 2
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. A3144 Datasheet

Package Includes :

1 x Hall Effect Sensor 6851/A3144
