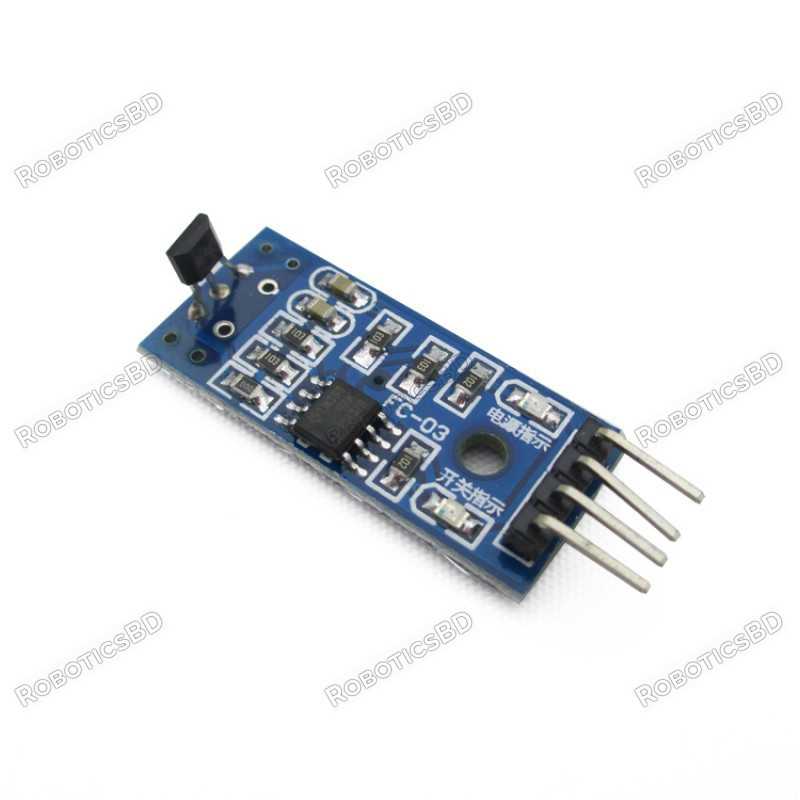

Hall Effect Sensor Switch Magnetic Detector Module For Arduino
  • Hall Effect Sensor Switch Magnetic Detector Module For Arduino

Hall Effect Sensor Switch Magnetic Detector Module For Arduino

RBD-0822

  • S49E hall sensor
  • Features wide-range voltage comparator LM393
  • Signal output indicator
  • Analog / Digital output
BDT 99.00
BDT 99.00 BDT 99.00 BDT 99.00 BDT 99.00
Tax included Tax excluded Tax included Tax excluded
BDT 99.00 Tax excluded
BDT 99.00 Tax included
BDT 0.00 Tax
BDT 99.00 Tax excluded
BDT 0.00 Tax
BDT 99.00 Tax included
Quantity
In-Stock
44 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a Comparator based LM393 Linear Hall Effect Sensor Module. This Module is based on S49E linear hall effect sensor. Using this module you can get digital as well as linear output. RoboticsBD

This module can be used to detect the presence of a magnetic field. If there is a magnetic field present, it will report a high-level signal. It can be used in many applications such as RPM sensor (for counting the number of shaft revolutions), Robot speed and distance measurements, door switch and robot arm position sensor. Generally, it can be used for any magnetic field detection. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Pin Description:
  1. VCC : 2.3 volts to 5.3 Volts
  2. GND : power supply ground
  3. AOUT (analog sensor output) : Arduino/ MCU input
  4. DOUT (digital sensor output) : Arduino/MCU input
Applications:
  1. Motor shaft speed measurement (shaft encoder)
  2. Object position detection

Features:

  1. S49E hall sensor
  2. Features wide-range voltage comparator LM393
  3. Signal output indicator
  4. Analog / Digital output

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Sensitivity adjustable
Size: 32mm X 14mm
mounting screw holes 3mm
Shipment Weight 0.005 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Hall Effect Sensor Switch Magnetic Detector Module For Arduino.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0822
44 Items

Specific References

EAN13
0822
