Hall Effect Sensor A1302 Robotics Bangladesh
  • Hall Effect Sensor A1302 Robotics Bangladesh
  • Hall Effect Sensor A1302 Robotics Bangladesh

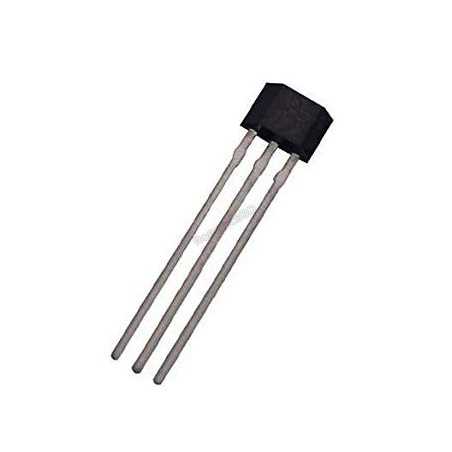

Hall Effect Sensor A1302 49E

RBD-1199

  • Low-noise output
  • Fast power-on time
  • Ratiometric rail-to-rail output
  • 4.5 to 6.0 V operation
  • Solid-state reliability
  • Factory-programmed at end-of-line for optimumperformance
  • Robust ESD performance
BDT 70.00
BDT 70.00 BDT 70.00 BDT 70.00 BDT 70.00
Tax included Tax excluded Tax included Tax excluded
BDT 70.00 Tax excluded
BDT 70.00 Tax included
BDT 0.00 Tax
BDT 70.00 Tax excluded
BDT 0.00 Tax
BDT 70.00 Tax included
Quantity
In-Stock
195 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The A1301 and A1302 are continuous-time, ratiometric, linear Hall-effect sensor ICs. They are optimized to accurately provide a voltage output that is proportional to an applied magnetic field. These devices have a quiescent output voltage that is 50% of the supply voltage. Two output sensitivity options are provided: 2.5 mV/G typical for the A1301, and 1.3 mV/G typical for the A1302.

The Hall-effect integrated circuit included in each device includes a Hall circuit, a linear amplifier, and a CMOS Class A output structure. Integrating the Hall circuit and the amplifier on a single chip minimizes many of the problems normally associated with low voltage level analog signals.

High precision in output levels is obtained by internal gain and offset trim adjustments made at end-of-line during the manufacturing process.

These features make the A1301 and A1302 ideal for use in position sensing systems, for both linear target motion and rotational target motion. They are well-suited for industrial applications over extended temperature ranges, from –40°C to 125°C. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Specifications:

  1. Output Sink Current IOUT 10 mA
  2. Operating Ambient Temperature TA Range E –40 to 85 ºC
  3. Operating Ambient Temperature TA Range K –40 to 125 ºC
  4. Maximum Junction Temperature TJ(max) 165 ºC
  5. Storage Temperature Tstg –65 to 170 ºC

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Supply Voltage VCC 8 V
Output Voltage VOUT 8 V
Reverse Supply Voltage VRCC –0.1 V
Reverse Output Voltage VROUT –0.1 V
Output Sink Current IOUT 10 mA
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x Hall Effect Sensor A1302

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1199
195 Items

Specific References

EAN13
1199
