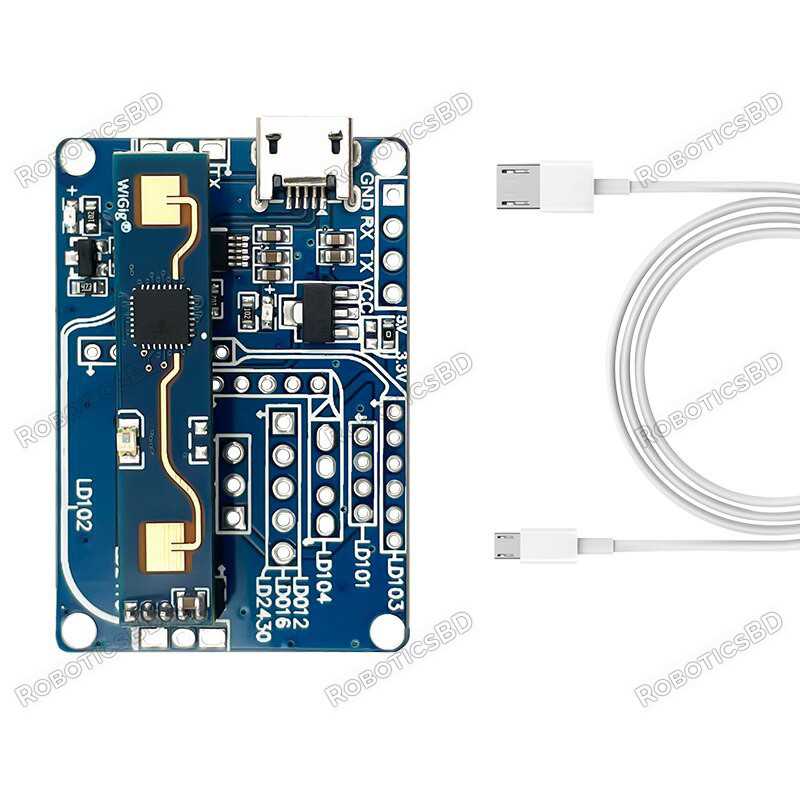

Human Presence Radar LD2410 Respiration and Heartbeat Monitoring Non-contact Induction Sensor Robotics Bangladesh
  • Human Presence Radar LD2410 Respiration and Heartbeat Monitoring Non-contact Induction Sensor Robotics Bangladesh
  • Human Presence Radar LD2410 Respiration and Heartbeat Monitoring Non-contact Induction Sensor Robotics Bangladesh

Human Presence Radar LD2410 Respiration and Heartbeat Monitoring Non-contact Induction Sensor

RBD-2152

  • Human Presence Radar LD2410
  • Respiration and Heartbeat Monitoring
  • Non-contact Induction Sensor
  • High-sensitivity 24GHz sensing module
BDT 2,250.00
BDT 2,250.00 BDT 2,250.00 BDT 2,250.00 BDT 2,250.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,250.00 Tax excluded
BDT 2,250.00 Tax included
BDT 0.00 Tax
BDT 2,250.00 Tax excluded
BDT 0.00 Tax
BDT 2,250.00 Tax included
Quantity
In-Stock
7 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Human Presence Radar LD2410 is an advanced non-contact induction sensor designed for respiration and heartbeat monitoring. Developed by Hilink Electronics, this high-sensitivity 24GHz sensing module utilizes FMCW frequency-modulated continuous wave technology to detect human targets in a specific area. With its accurate human body induction algorithm, it can identify both motion and stationary states of the human body. This sensor is primarily used in indoor settings to sense the presence of moving or micro-moving human bodies and provide real-time detection results. With a farthest sensing distance of up to 6 meters and a distance resolution of 0.75m, it offers precise monitoring capabilities. Additionally, the LD2410 provides a visual configuration tool, allowing users to easily customize sensing distance range, sensitivity, and unmanned delay time to meet specific application requirements. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. High-sensitivity 24GHz human presence sensing module
  2. Utilizes FMCW frequency-modulated continuous wave technology
  3. Accurate human body induction algorithm
  4. Detects both motion and stationary states of the human body
  5. Farthest sensing distance up to 6 meters
  6. Distance resolution of 0.75m
  7. Non-contact induction sensor for enhanced safety and convenience
  8. Ideal for respiration and heartbeat monitoring
  9. Real-time detection and output of sensing results
  10. Visual configuration tool for easy customization of sensing parameters

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Indoor monitoring systems
  2. Security and surveillance applications
  3. Healthcare and medical devices
  4. Smart home automation
  5. Occupancy detection in buildings
  6. Industrial automation and robotics
  7. Human presence detection in retail settings
  8. Non-contact vital signs monitoring
  9. Research and development projects
  10. Intelligent transportation systems

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Product Name Human Presence Radar LD2410
Sensing Frequency 24GHz
Sensing Method FMCW
Sensing Distance Up to 6 meters
Distance Resolution 0.75m
Induction Technology Non-contact
Application Respiration and Heartbeat Monitoring
Weight 3 gm
Dimensions 35 x 7 mm
Shipment Weight 0.028 kg
Shipment Dimensions 10 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheets/ Software (Access permission with your order ID)

Benefits

LD2410 human body sensing module adopts 24GHz millimeter wave radar sensor technology. Compared with other solutions, it has obvious advantages in human body sensing applications:

  1. In addition to being sensitive to moving human bodies, it can also sensitively sense static, micro-moving, sitting and lying human bodies that cannot be identified by traditional solutions
  2. It has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations
  3. It has good shell penetration and can be hidden in the shell to work without opening holes on the surface of the product, which improves the aesthetics of the product
  4. It can flexibly configure the farthest sensing distance and the sensitivity on each distance door to achieve flexible and fine personalized configuration.

Pin Description:

Package Includes:

1 x Human Presence Radar LD2410 Respiration and Heartbeat Monitoring Non-contact Induction Sensor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2152
7 Items

Specific References

EAN13
2152
