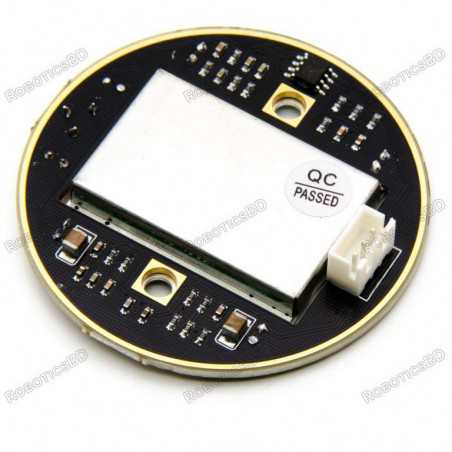

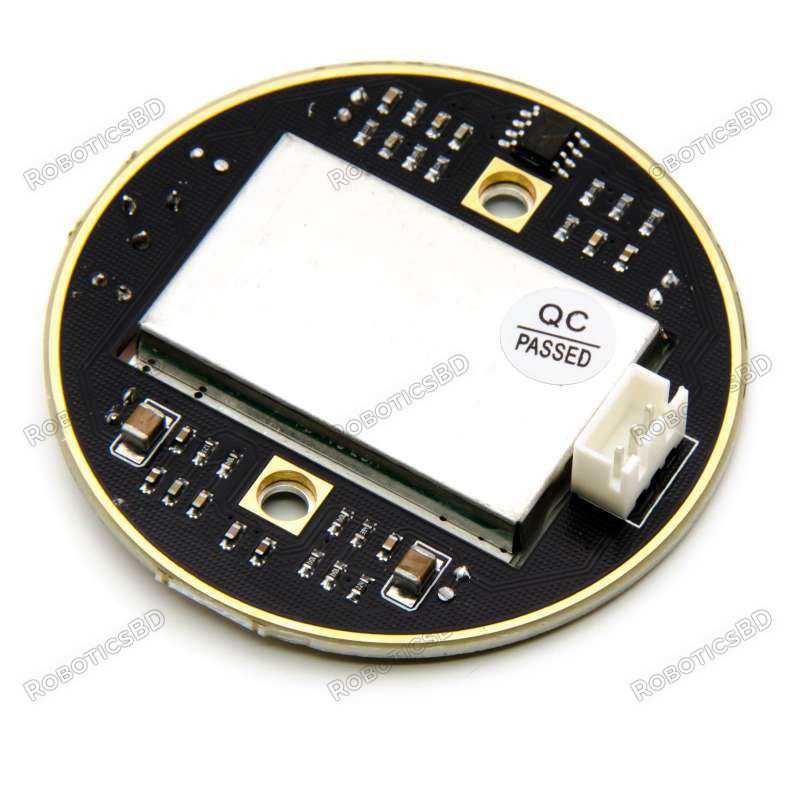

The 10.525GHz HB100X Microwave Sensor Module is a versatile tool that can be used to detect the movement of objects. The module uses a microwave beam to detect movement, and it is not affected by the ambient temperature. The module is easy to use, and it can be connected directly to a microcontroller
This Microwave moving object detector is designed by the Doppler Radar principle. It is mainly used in automatic door control, safety guard systems, and video control systems. This module uses a 10.525 GHz band to detect movement. This HB100 microwave sensor is easy to use because it can be connected directly to a microcontroller. A "bare" HB100 sensor requires an amplifier to amplify the signal; this module already has it built-in. It is ideal to be used with a microcontroller because no other external components are required.
The microwave motion sensor is a microwave-moving object detector designed using the Doppler radar principle. Unlike ordinary infrared detectors, microwave sensors detect the motion of an object by detecting microwaves reflected from the object. The detection will not be limited to the human body. The microwave sensor is not affected by the ambient temperature, has a long detection range and high sensitivity, and is widely used in industrial, transportation, and civil devices such as vehicle speed, automatic doors, sensor lights, parking sensors and even burglar alarm sensors. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Microwave sensor module
- Uses 10.525 GHz band to detect movement
- Easy to use, can be connected directly to a microcontroller
- Built-in amplifier
- Ideal for use with a microcontroller
- Widely used in industrial, transportation, and civil devices
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Automatic door control
- Safety guard systems
- Video control systems
- Vehicle speed
- Automatic doors
- Sensor lights
- Parking sensors
- Burglar alarm sensors
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Operating Frequency |
10.525 GHz |
| Detection Range |
5-10 meters |
| Sensitivity |
-95 dBm |
| Power Supply |
5V |
| Working Current |
20mA |
| Dimensions |
42mm x 22mm x 12mm |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Additional Information:
- Do not exceed the maximum operating voltage or current.
- Do not operate the module in temperatures outside of the specified range.
- Do not expose the module to water or other liquids.
- The 10.525GHz HB100X Microwave Sensor Module is a great tool for a variety of applications.
- The module is easy to use and can be connected to a variety of devices.
- The module is a valuable tool for detecting the movement of objects.
Package Includes:
1 x 10.525GHz HB100X Microwave Sensor Module
