NEO-M8N GPS Module with Ceramic Active Antenna Robotics Bangladesh
  • NEO-M8N GPS Module with Ceramic Active Antenna Robotics Bangladesh

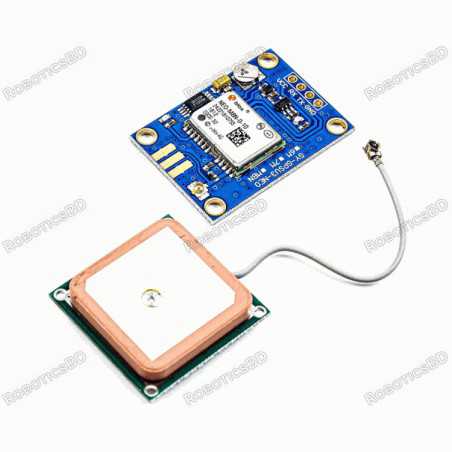

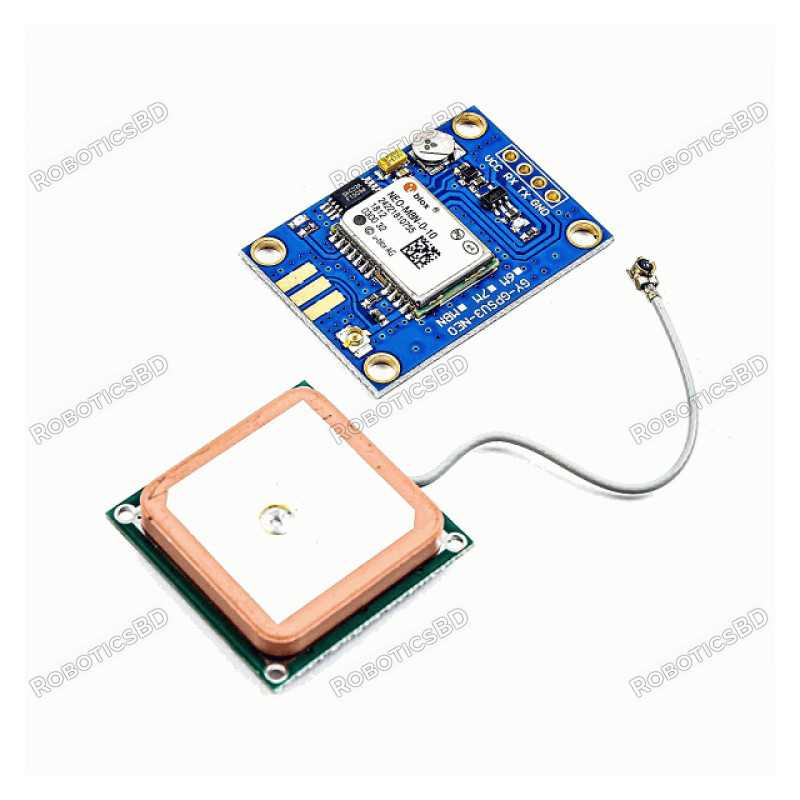

NEO-M8N GPS Module with Ceramic Active Antenna

RBD-1722

  • Antenna Size : approx. 26 x 26 x 9 (LxWxH) mm.
  • Module Size : approx. 26 x 36 x 4 (LxWxH) mm.
  • Net weight : approx. 16 gm.
  • Gross weight : approx. 17 gm.
  • Mounting : approx. 3 mm.
  • The default baud rate : 9600.
BDT 1,580.00
BDT 1,580.00 BDT 1,580.00 BDT 1,580.00 BDT 1,580.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,580.00 Tax excluded
BDT 1,580.00 Tax included
BDT 0.00 Tax
BDT 1,580.00 Tax excluded
BDT 0.00 Tax
BDT 1,580.00 Tax included
Quantity
In-Stock
21 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The APM2.5 NEO-M8N GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications. RoboticsBD

The NEO-M8 series of concurrent GNSS modules are built on the high performing M8 GNSS engine in the industry proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications. RoboticsBD

Note: It is a manual measurement, there may be 2-3 mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

 Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

The GY-NEO-8M module is an advanced GPS module based on uBlox m8N that supports UART communication protocol with active antenna. You can interface this module easily with a microcontroller. This module has a rechargeable battery and can also be connected directly to a computer using a USB to TTL converter

The on-board LED starts blinking when module is connecting to GPS satellites.

Features :

  1. The ceramic antenna provides a very strong signal
  2. With LED indicator lamp
  3. The default baud rate: 9600.
  4. With data backup battery.
  5. LED signal indicator.
  6. Compatible with various flight controller module.
  7. EEPROM save the configuration parameter data when power-down.
  8. Assistance AssistNow GNSS Online
  9. AssistNow GNSS Offline (up to 35 days)
  10. AssistNow Autonomous (up to 6 days)
  11. OMA SUPL & 3GPP compliant
  12. Oscillator TCXO
  13. Built-in RTC crystal
  14. Anti-jamming Active CW detection and removal.
  15. Extra onboard SAW bandpass filter
  16. Memory Flash
  17. Supported antennas Active and passive
  18. Odometer Travelled distance
  19. Data-logger For position, velocity, and time

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model Ublox NEO-M8N
Receiver Type 72-channel Ublox M8 engine.
Input Supply Voltage (VDC) 3 ~ 5
Main Chip Ublox NEO-M8N
Sensitivity (dBm) 156
Cold Start (without aiding): -147 dBm
Position Accuracy (Meter) 2
2.5
Acceleration (g) <4
Navigation Update Rate up to 18 HZ.
Operating Temperature Range (°C) -45 to 105
Tracking Sensitivity (dBm) -161 dBm
Co-Ordinate System WGS-84
Capture Time 0.1s Average
Avg Cold Start Time (s) 30
Warm Start Time (s) 1
Boot Time 1S
Maximum Altitude (m) 18000
Dimensions (mm) LxWxH Antenna: 26 x 26 x 9
Module: 26 x 36 x 4
Weight (gm) 17
Shipment Weight 0.06 kg
Shipment Dimensions 9 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Interfacing NEO-8M GPS Module with Arduino

Package Includes :

1 x APM 2.5 NEO M8N GPS Module.

1 x Ceramic Active Antenna.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1722
21 Items

Specific References

EAN13
1722
