ISL29125 RGB Color Light Sensor Module 3.
  • ISL29125 RGB Color Light Sensor Module 3.

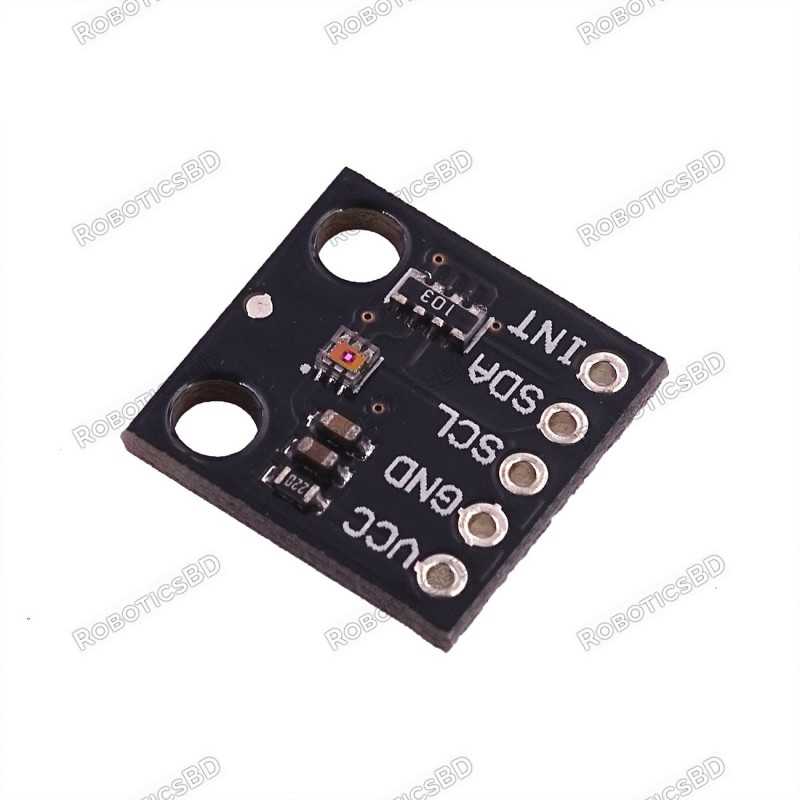

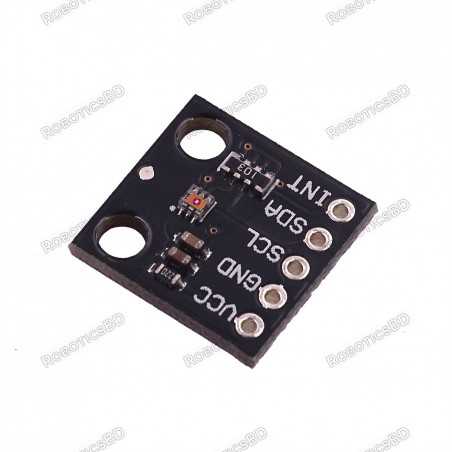

ISL29125 RGB Color Light Sensor Module 3.3V

RBD-2363

This module is based on ISL29125 that is a low power, high sensitivity, RED, GREEN and BLUE color light sensor (RGB) with an I2C (SMBus compatible) interface. Its state-of-the-art photodiode array provides an accurate RGB spectral response and excellent light source to light source variation (LS2LS).

BDT 1,490.00
BDT 1,490.00 BDT 1,490.00 BDT 1,490.00 BDT 1,490.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,490.00 Tax excluded
BDT 1,490.00 Tax included
BDT 0.00 Tax
BDT 1,490.00 Tax excluded
BDT 0.00 Tax
BDT 1,490.00 Tax included
Quantity
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Description:
This module is based on ISL29125 that is a low power, high sensitivity, RED, GREEN and BLUE color light sensor (RGB) with an I2C (SMBus compatible) interface. Its state-of-the-art photodiode array provides an accurate RGB spectral response and excellent light source to light source variation (LS2LS).
The ISL29125 is designed to reject IR in light sources allowing the device to operate in environments from sunlight to dark rooms. The integrating ADC rejects 50Hz and 60Hz flicker caused by artificial light sources. A selectable range allows the user to optimize sensitivity, that is suitable for the specific application. In normal operation mode, the device consumes 56µA, which reduces to 0.5µA in power-down mode. The ISL29125 supports hardware and software user-programmable interrupt thresholds.
The Interrupt persistency feature reduces false trigger notifications. The device operates on supplies (VDD) from 2.25V to 3.63V, I2C supply from 1.7V to 3.63V, and operating temperature across the -40°C to +85°C range.

Interfaces
Interface Type I2C
Sensor Parameters
Internal ADC 16 bit
Measuring range Range0 = 5.7m lux ~ 375 lux , Range1 = 0.152 lux ~ 10,000 lux
Output Type Digital
Electrical Parameters
Input Voltage 2.25V ~ 3.3V
Current 56uA
Board Parameters
Main Chip ISL29125
Pin Count 5 Pins
Physical Parameters
Size 15mm x 15mm
Environmental Conditions and Safety
Operating Temperature -40°C ~ +85°C

Features:
Chip: ISL29125
Input Voltage: 2.25V ~ 3.63V
Operating Current: 56uA
Shutdown Current: 0.5uA
Output Type: Digital
Interface: I2C
ADC: 16 bits
Two Optical Sensitivity Ranges:
Range 0 = 5.7m lux to 375 lux
Range 1 = 0.152 lux to 10,000 lux
Pin Number: 5 Pins
Operating Temperature: -40°C ~ +85°C
Size: 15mm x 15mm

Applications:
Smartphone, PDA, GPS, tablet PCs, LCD-TVs, digital picture frames, digital cameras
Dynamic Display Color Balancing
Printer Color Enhancement
Industrial/Commercial LED Lighting Color Management
Ambient Light Color Detection/Correction
OLED Display Aging Compensation

Package Include:
1 x  CJMCU-29125 RGB Color Light Sensor
