TSOP1738 IR Infrared Receiver Robotics Bangladesh
  • TSOP1738 IR Infrared Receiver Robotics Bangladesh

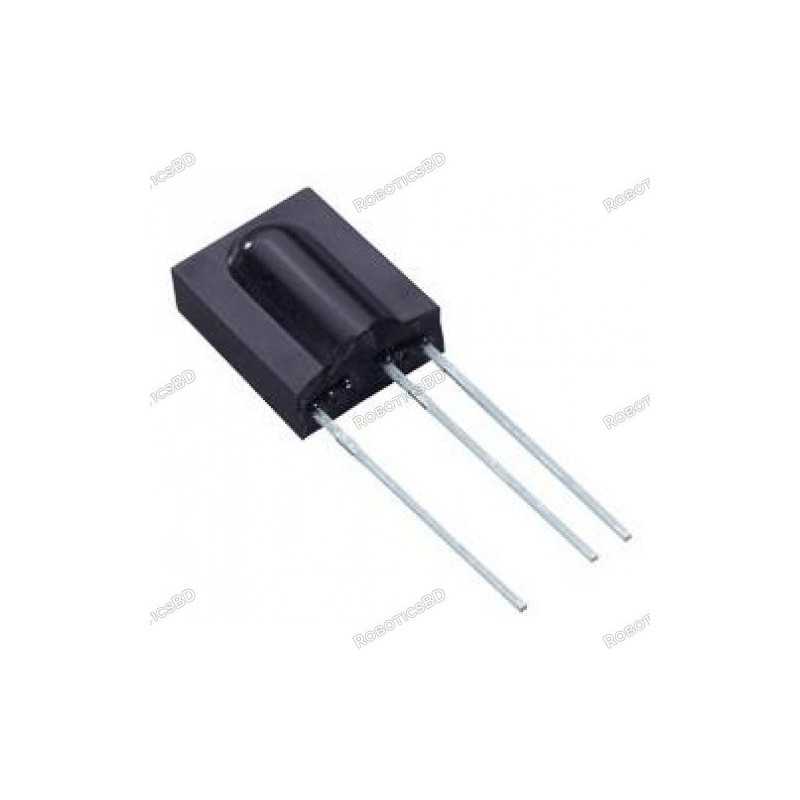

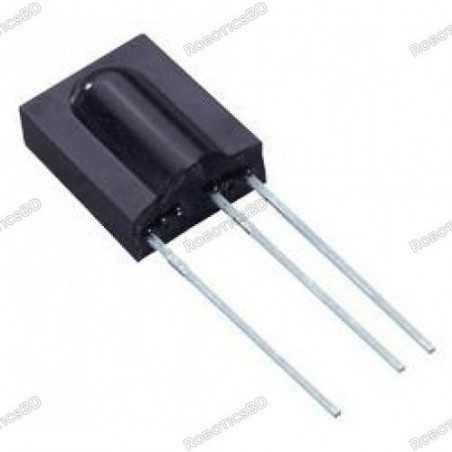

TSOP1738 IR Infrared Receiver

RBD-1196

  • Photo Detector, IR Filter, Preamplifier and PCM frequency filter in one package
  • Shielding against EMI or RFI interference
  • CMOS and TTL Compatible
  • Active Low Output
  • Immunity against ambient light
  • Low Power Consumption
  • Able to transfer data continuously up to 2400bps
  • Supply Voltage : 4.5 – 5.5V

BDT 54.00
BDT 54.00 BDT 54.00 BDT 54.00 BDT 54.00
Tax included Tax excluded Tax included Tax excluded
BDT 54.00 Tax excluded
BDT 54.00 Tax included
BDT 0.00 Tax
BDT 54.00 Tax excluded
BDT 0.00 Tax
BDT 54.00 Tax included
Quantity
In-Stock
66 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The TSOP17.. – series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. TSOP17.. is the standard IR remote control receiver series, supporting all major transmission codes. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Photo detector and preamplifier in one package
  2. Internal filter for PCM frequency
  3. Improved shielding against electrical field disturbance
  4. Output active low
  5. TTL and CMOS compatibility
  6. Low power consumption
  7. High immunity against ambient light
  8. Continuous data transmission possible (up to 2400 bps)
  9. Suitable burst length ≥10 cycles/burst

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Supply Voltage (Pin 2) VS –0.3...6.0 V
Supply Current (Pin 2) IS 5 mA
Output Voltage (Pin 3) VO –0.3...6.0 V
Output Current (Pin 3) IO 5 mA
Junction Temperature Tj 100 degree C
Storage Temperature Range Tstg –25...+85 C
Operating Temperature Range Tamb –25...+85 C
Power Consumption Ptot 50 mW
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes :

1 x TSOP1736 IR Receiver.
