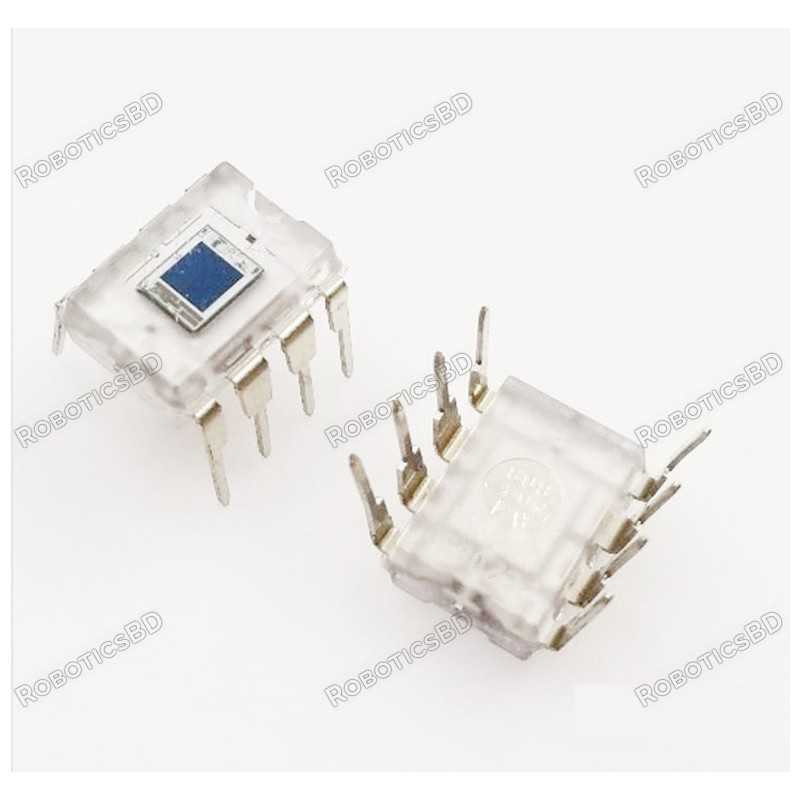

OPT101P PHOTODIODE/AMPLIFIER

RBD-1210

  • Single Supply:2.7-36V
  • High Responsivity:0.45A/W(650nm)
  • Bandwidth:14Khz
BDT 850.00
BDT 850.00 BDT 850.00 BDT 850.00 BDT 850.00
Tax included Tax excluded Tax included Tax excluded
BDT 850.00 Tax excluded
BDT 850.00 Tax included
BDT 0.00 Tax
BDT 850.00 Tax excluded
BDT 0.00 Tax
BDT 850.00 Tax included
Quantity
In-Stock
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The OPT101 is a monolithic photodiode with on-chip transimpedance amplifier. The ingrate combination of photodiode and transimpedance amplifier on a single chip eliminates the problems commonly encountered in discrete designs, such as leakage current errors, noise pick-up, and gain peaking as a result of stray capacitance. Output voltage increases linearly with light intensity. The amplifier is designed for singlr or dual power-supply operation. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Medical Instrumentation
  2. Laboratory Instrumentation
  3. Position and Proximity Sensors
  4. Photographic Analyzers
  5. Barcode Scanners
  6. Smoke Detectors
  7. Currency Changers

Specifications:

  1. Single Supply:2.7-36V
  2. High Responsivity:0.45A/W(650nm)
  3. Bandwidth:14Khz
  4. Low Quiescent Current:120UA

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
size: 12x20mm
color: purple
material: plastic
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. OPT101 Analog Light Sensor Datasheet

Package Includes:

1 x OPT101 Analog Light Sensor.
