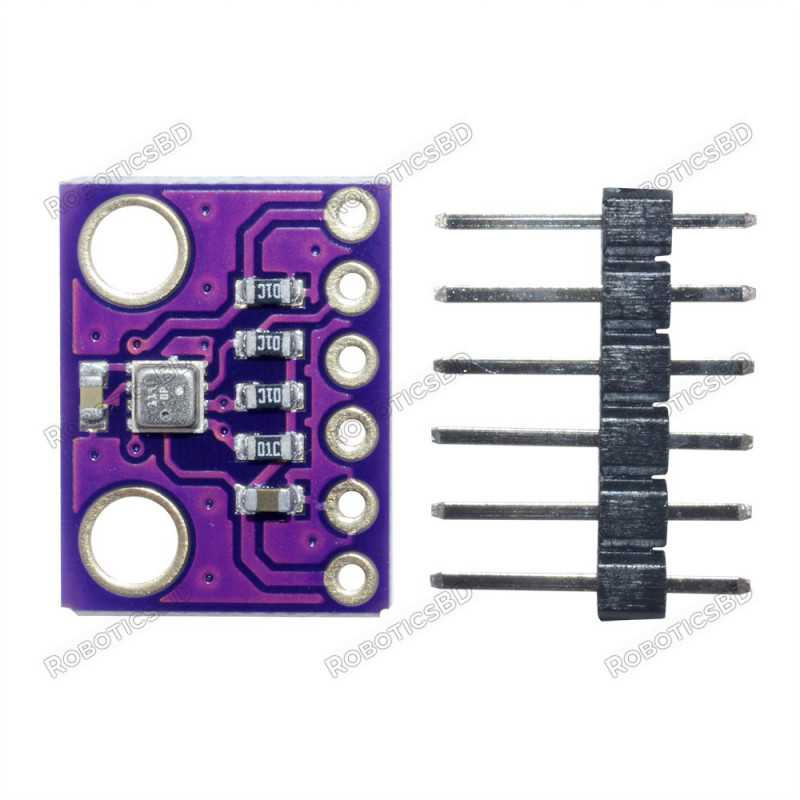

GY-BME280-3.3 BME280 Atmospheric Pressure Sensor Module.ME-BME280 is a Breakout Board featuring a Bosch Sensortec ME280 Temperature, Humidity & Pressure Sensor. RoboticsBD. Featured By RoboticsBD.
ME-BME280 is a Breakout Board featuring a Bosch Sensortec ME280 Temperature, Humidity & Pressure Sensor.
The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.
Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.
If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1! RoboticsBD. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: PCB might be different from the picture as per stock
RoboticsBD. Featured By RoboticsBD.
RoboticsBD. Featured By RoboticsBD.
General Specification | |
Model | GY-BME280-3.3 |
Chip | BME280 |
Power Supply | 3.3V |
Peak Current | 1.12mA |
Air Pressure Range | 300-1100hPa (equi. to +9000…-500m above sea level) |
Temperature Range | -40 to +85 °C |
Digital Interfaces | I2C (up to 3.4 MHz) SPI (3 and 4 wire, up to 10 MHz) |
Length (mm) | 15.5 |
Width (mm) | 12 |
Height (mm) | 2.4 |
Weight (gm) | 0.8 |
Shipment Weight | 0.01 kg |
Shipment Dimensions | 6 × 6 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x GY-BME280-3.3 Precision Altimeter Atmospheric Pressure Sensor Module
1 x 6 pin Male Header
