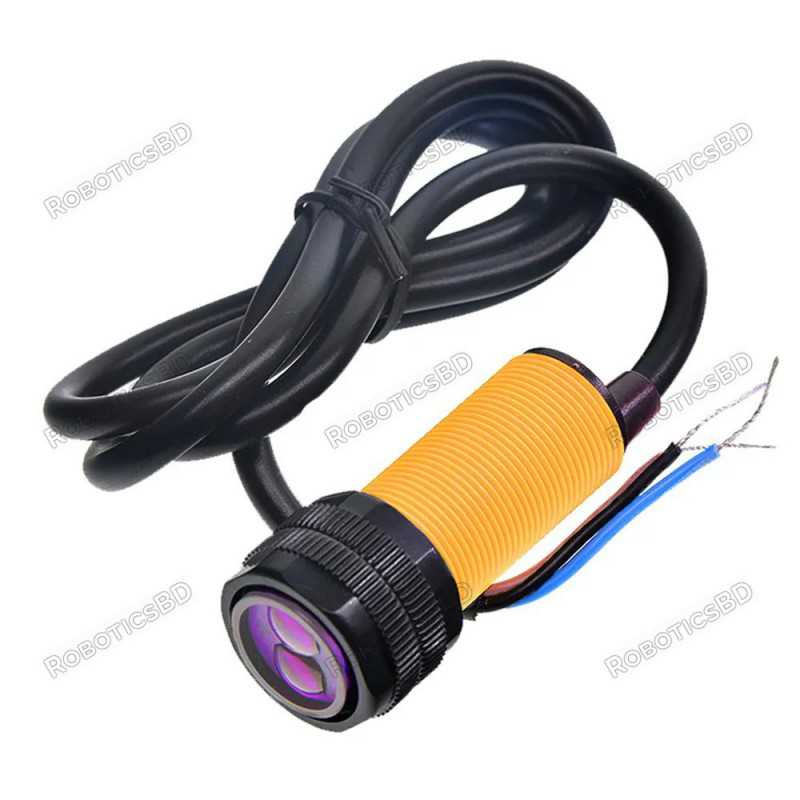

E18-D80NK Adjustable Infrared Proximity Sensor Switch 3-80cm

RBD-2313

  1. Sensing range: 3 – 80cm.
  2. Input voltage: 5VDC.
  3. Current Consumption: 300mA.
  4. Digital Output.
  5. Cable length: 1m.
  6. Diffuse reflective type.
BDT 290.00
BDT 290.00 BDT 290.00 BDT 290.00 BDT 290.00
Tax included Tax excluded Tax included Tax excluded
BDT 290.00 Tax excluded
BDT 290.00 Tax included
BDT 0.00 Tax
BDT 290.00 Tax excluded
BDT 0.00 Tax
BDT 290.00 Tax included
Quantity
80 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm.

The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.

The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm.

Connection:
  1. Red wire: +5V
  2. Green wire: GND
  3. Yellow wire: Digital output

OR

  1. Brown wire: +5V
  2. Blue wire: GND
  3. Black wire: Digital output.

Features:

  • Less influence on the color of reflected objects, reflectivity.
  • Compact size.
  • Industrial grade quality.
  • Can detect colour difference from certain range.
  • TTL output low whenever sensor senses a obstacle.
  • Adjustable Detection distance of 3cm to 80cm.
  • External control circuit unnecessary.
  • Low cost.
  • Output indication LED.
  • Digital output.
  • Low consumption.

Specifications:

Light source Infrared
Sensing Range 3cm to 80cm
Input Voltage 5V DC
Current Consumption 300mA
Dimensions (Dia.xLength.) 17.68 x 50mm
Cable Length 1 Meter

Package Includes:

1 x E18-D80NK Adjustable Infrared Sensor Switch 3-80cm.

Product Details
RBD-2313
80 Items

Specific References

EAN13
2313
