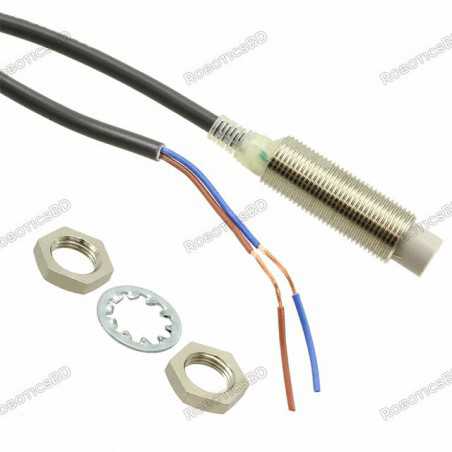

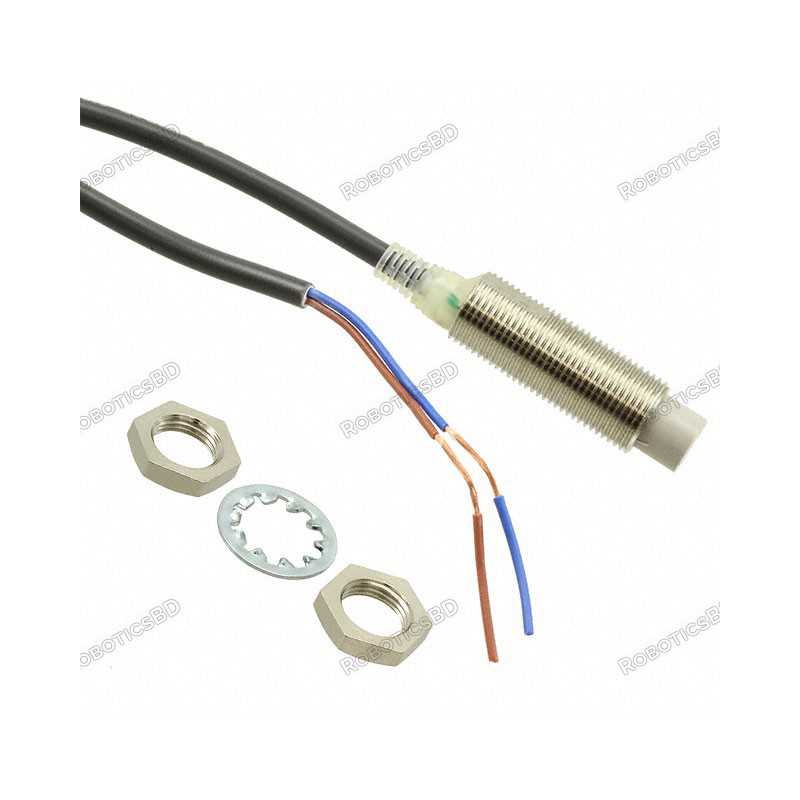

| General Specification |
| Sensing head size |
M12 |
| Type |
Cylinder type (with screw), Unshielded |
| Power source |
DC Three-wires models |
| Sensing distance |
5 mm ±10% |
| Setting distance |
0 to 4 mm |
| Differential distance |
10% max. of sensing distance |
| Sensing object |
Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object |
Iron 15 x 15 x 1 mm |
| Response frequency |
0.4 kHz |
| Power supply voltage |
12 to 24 VDC ripple (p-p) 10% max. |
| Operating voltage range |
10 to 30 VDC |
| Current consumption |
13 mA max. |
| Control output (Output type) |
PNP collector load built-in output |
| Control output (Switching capacity) |
200 mA max. |
| Control output (Residual voltage) |
2 V max. (Load current 200 mA with cable length of 2 m) |
| Indicator |
Operation indicator (red) |
| Operation mode |
NC |
| Protective circuit |
Output short-cut protection
Reverse polarity protection
Surge suppressor |
| Ambient temperature (Operating) |
-40 to 85 ℃ |
| Ambient temperature (Storage) |
-40 to 85 ℃ |
| Ambient humidity (Operating) |
35 to 95% RH |
| Ambient humidity (Storage) |
35 to 95% RH |
| Temperature influence |
±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
±15% max. of sensing distance at 23 ℃ in the temperature range of -40 to 85 ℃ |
| Voltage influence |
±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Insulation resistance |
Between charged parts and the case: 5 MΩ min. at 500 VDC |
| Dielectric strength |
Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min |
| Vibration resistance |
Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock resistance |
Destruction: 1000 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection |
IEC: IP67
Company standard: Oil-proof |
| Connection method |
Pre-wired models (2 m) |
| Weight |
Package: Approx. 75 g |
| Material |
Case: Brass nickel plating
Sensing surface: Polybutylene terephthalate (PBT)
Clamping nuts: Brass nickel plating
Toothed washers: Iron zinc plating |
| Accessories |
Instruction manual |
| Shipment Weight |
0.08 kg |
| Shipment Dimensions |
18 × 18 × 6 cm |
