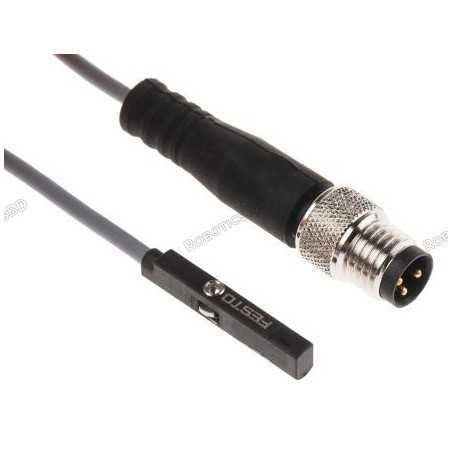

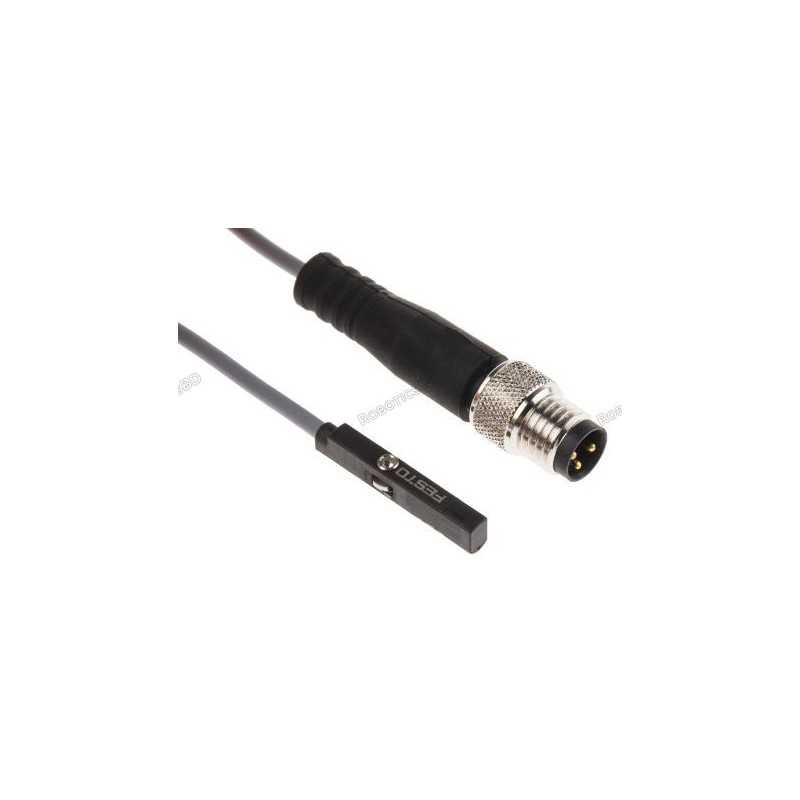

Festo SMT-10M-PS-24V-E-0,3-L-M8D

RBD-1401

  • Measured variable Position
  • Measuring principle Magneto-resistive
  • Ambient temperature -40 °C ... 70 °C
  • Repetition accuracy 0.2 mm
  • Switching output PNP
  • Switching element function N/O contact
  • On time ≤1.3 ms
  • Switch-off time ≤1.4 ms
  • Max. switching frequency 150 Hz
  • Max. output current 100 mA
  • Max. output current in mounting kits 50 mA
  • Max. switching capacity DC 2.8 W
  • Max. switching capacity DC in mounting kits 1.5 W
  • Voltage drop ≤1.7 V

BDT 12,000.00
BDT 12,000.00 BDT 12,000.00 BDT 12,000.00 BDT 12,000.00
Tax included Tax excluded Tax included Tax excluded
BDT 12,000.00 Tax excluded
BDT 12,000.00 Tax included
BDT 0.00 Tax
BDT 12,000.00 Tax excluded
BDT 0.00 Tax
BDT 12,000.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Festo SMT/SME-10M Series C-Slot proximity sensors are fully compatible with all Festo cylinders that have C-slots and round cylinders with corresponding mounting kits. The SME/SMT range provides a reliable sensing solution in a variety of switching options. RoboticsBD

All sensors have cables suitable for use in energy chains and on robot applications as standard. This ensures maximum dependability and process reliability. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Sturdy central mounting guarantees that the sensor is securely screwed into the slot
  2. Vibration, shock and tensile forces applied to the cable will neither cause the sensor to come loose nor lead to unreliable sensor functioning
  3. The proximity sensors are compatible with all Festo C-Slots
  4. 24 V dc operating voltage
  5. Switching outputs include PNP, NPN, and contacting

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Manufacturer Series SMT
Compatible With C-Slot
Type Magneto Resistive
LED Indicator Yes
IP Rating IP65, IP68
Supply Voltage 24V dc
Operation NO
Minimum Operating Temperature -40°C
Maximum Operating Temperature (+70°C)
Shipment Weight 0.055 kg
Shipment Dimensions 17 × 15 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x Festo SMT-10M-PS-24V-E-0,3-L-M8D.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1401

Specific References

EAN13
1401
