GPS GSM GPRS SIM808 Module (Arduino Compatible)
  • GPS GSM GPRS SIM808 Module (Arduino Compatible)
  • GPS GSM GPRS SIM808 Module (Arduino Compatible)

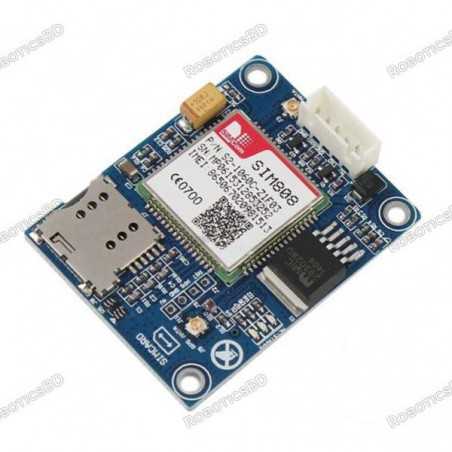

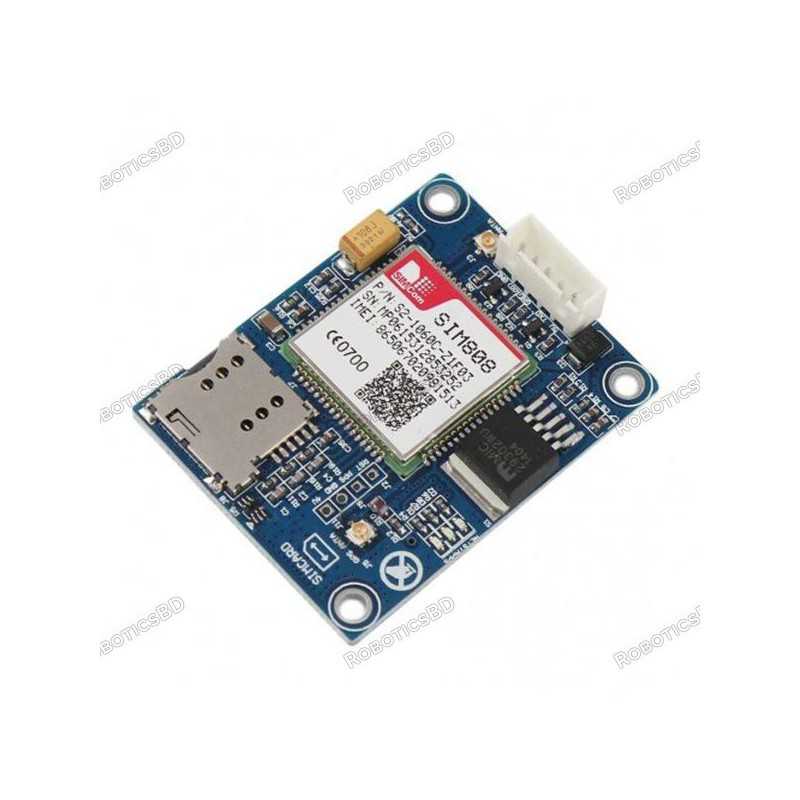

GPS GSM GPRS SIM808 Module (Arduino Compatible)

RBD-0579

  • Quad-band 850/900/1800/1900MHz
  • GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
  • GPRS mobile station class B
  • Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
  • Supports charging control for Li-Ion battery
  • Supports Real-Time Clock
  • Integrated GPS/CNSS and supports A-GPS
  • Low power consumption, 10mA in sleep mode. RoboticsBD
BDT 3,450.00
BDT 3,450.00 BDT 3,450.00 BDT 3,450.00 BDT 3,450.00
Tax included Tax excluded Tax included Tax excluded
BDT 3,450.00 Tax excluded
BDT 3,450.00 Tax included
BDT 0.00 Tax
BDT 3,450.00 Tax excluded
BDT 0.00 Tax
BDT 3,450.00 Tax included
Quantity
In-Stock
20 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SIM808 module is a GSM and GPS two-in-one function module. It is based on the latest GSM/GPS module SIM808 from SIMCOM, supports GSM/GPRS Quad-Band network and combines GPS technology for satellite navigation.  It features ultra-low power consumption in sleep mode and integrated with charging circuit for Li-Ion batteries, that make it get a super long standby time and convenient for projects that use rechargeable Li-Ion battery. It has high GPS receive sensitivity with 22 tracking and 66 acquisition receiver channels. Besides, it also supports A-GPS that available for indoor localization.  The module is controlled by AT command via UART and supports 3.3V and 5V logical level. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Sample Applications:

  • Send a text message in English. RoboticsBD
  • Specified calls, automatically hang up after 1 minute.
  • Received specified text messages, control LED open circuit.
  • Detection module registered to the network, send the message until reading a SIM card.
  • Connect to the specified server and send the specified data by GPRS.
  • Provide information of dormant power consumption at about 10 MA

Features:

  1. Quad-band 850/900/1800/1900MHz
  2. GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
  3. GPRS mobile station class B
  4. Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
  5. Supports charging control for Li-Ion battery
  6. Supports Real-Time Clock
  7. Integrated GPS/CNSS and supports A-GPS
  8. Low power consumption, 10mA in sleep mode
  9. Supports GPS NMEA protocol
  10. AT command operation, can support SMS, phone, GPRS data, GPS data is automatically output, embedded TCP protocol to support transparent mode and command mode, supports HTTP protocol to support DTMF decoding, support MMS, support recording function, etc.
  11. Standard SIM Card. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage Range 5-18V
Lithium Battery Interface Voltage 3.4-4.4V
Operating Temperature -40 to+85°c
GSM/GPRS Characteristic Bands: GSM 850,EGSM900,DCS 1800,PCS 1900
Transmit Power Class 4(2W)at GSM 850 and EGSM 900
Class 1(1W)at DCS 1800 and PCS 1900
GPRS Transmission Rate GPRS Downlink Data Transmission: max.85.6kbps
GPRS Uplink Data Transmission: max.85.6kbps
SIM Card Interface Support SIM card: 1.8V,3V
Support 2G/3G/4G Mobile Unicom card
Serial Port Support baud rate auto recognization
Rate:1200-115200bps
GPS Characteristic Horizontal Accuracy: <2.5m
Speed Accuracy(DGPS): 0.05m/s
Timing Accuracy: 10ns
Power Consumption Acquisition: 42mA (3.8V at -130dBm,GSM IDLE)
Bluetooth Characteristic Integrated AT Command Control
Fully Compliant with Bluetooth specification 3.0+EDR
Fully Integrated PA provide 10dbm output power
Max. support 4 way ACL link
Length (mm) 50
Width (mm) 43
Height (mm) 10
Weight (gm) 17
Shipment Weight 0.03 kg
Shipment Dimensions 6 × 5 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. SIM808 V2.2.5 user manual V1.2
  2. SIM800 Series_GNSS_Application Note_V1.00

Package Includes:

1 x GPS GSM GPRS SIM808 Module (Arduino Compatible)
