Nextion NX3224T024 - Generic 2.4" TFT LCD Touch Display

RBD-1217

  • Nextion is a seamless Human Machine Interface (HMI) solution.
  • Nextion provides a control and visualization interface between a human and a process, machine, application or appliance.
  • Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field.
BDT 3,099.00
BDT 3,099.00 BDT 3,099.00 BDT 3,099.00 BDT 3,099.00
Tax included Tax excluded Tax included Tax excluded
BDT 3,099.00 Tax excluded
BDT 3,099.00 Tax included
BDT 0.00 Tax
BDT 3,099.00 Tax excluded
BDT 0.00 Tax
BDT 3,099.00 Tax included
Quantity
In-Stock
15 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Nextion NX3224T024-Generic 2.4″ TFT Intelligent Man Machine Interface HMI kernel LCD Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. RoboticsBD

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

NX2432T024 is a powerful 2.4'' HMI, which is member of Nextion family. Features include: a 2.4" TFT 320 x 240 resistive touch screen display, 4M Flash, 2K Byte RAM, 65k colors.

Features:

  1. 320 x 240 Resolution
  2. Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
  3. RGB 65K true to life colors
  4. TFT Screen with integrated 4-wire Resistive Touch Panel
  5. Easy 4 pin interface to any TTL Serial Host
  6. 4M Flash memory for User Application Code and Data
  7. Onboard micro-SD card for firmware upgrade
  8. Visual Area:36.72mm(L)×48.96mm(W)
  9. Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
  10. 5V90mA power consumption
  11. Generic using for all Arduino or Raspberry Pi project
  12. CE/EMC, RoHS certified (certificates)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model No. NX3224T024
Display Type NX3224T024_011R (R: Resistive touchscreen)
Operating Voltage (VDC) 4.75 ~ 7
Max. Operating Current (mA) 90
Display Layout Size (L x W x H) mm 74.4 × 42.9 × 5.8
Net weight (gm) 31
Touch Type Yes
Colors 65K (65536)
Recommended Power Supply 5V, 500mA, DC
Working Temperature Range (°C) -20 to 70
Working Humidity Range 10% to 90% RH
USB Interface No
Micro-SD Card Slot Yes (FAT32 format), support maximum 32G Micro SD Card
Flash Memory 4 MB
RAM 3584 BYTE
Shipment Weight 0.033 kg
Shipment Dimensions 10 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Nextion Software
  2. Nextion video
  3. Nextion Wiki

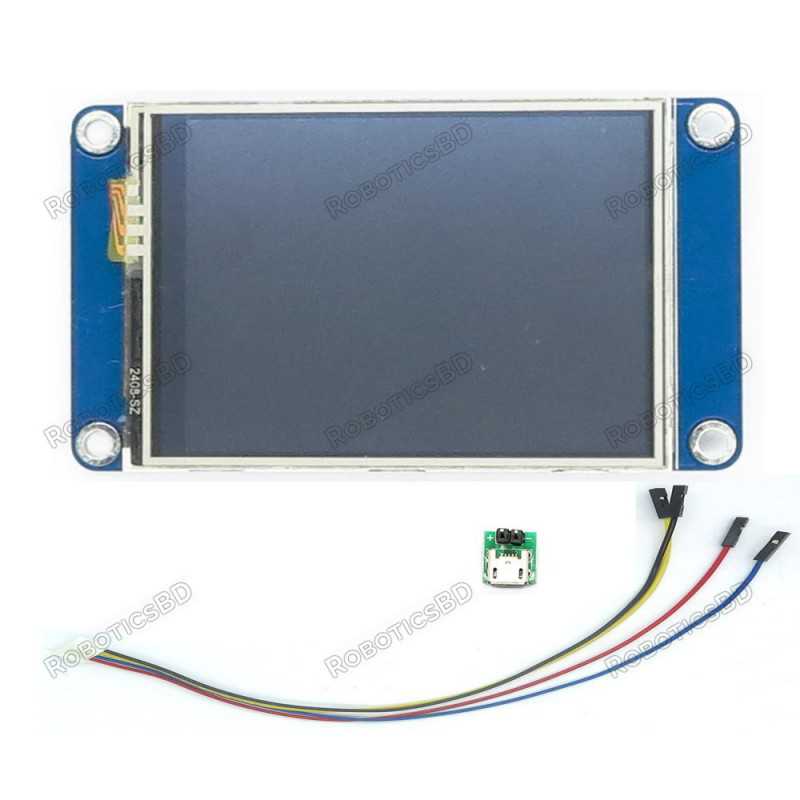

Package Includes:

1 x Nextion NX3224T024 – Generic 2.4″ TFT Intelligent LCD Touch Display

1 x Connecting Cable

1 x Power Supply Test Board.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1217
15 Items

Specific References

EAN13
1217
