3.5inch LCD Display Shield for Arduino

RBD-1219

  • Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
  • 480X320 resolution, clear display
  • Support 16-bit RGB 65K color display, display rich colors
  • 8-bit parallel bus, faster than serial SPI refresh
  • On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
  • Easy to expand the experiment with SD card slot
  • Provides an Arduino library with a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support
BDT 1,680.00
BDT 1,680.00 BDT 1,680.00 BDT 1,680.00 BDT 1,680.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,680.00 Tax excluded
BDT 1,680.00 Tax included
BDT 0.00 Tax
BDT 1,680.00 Tax excluded
BDT 0.00 Tax
BDT 1,680.00 Tax included
Quantity
In-Stock
8 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

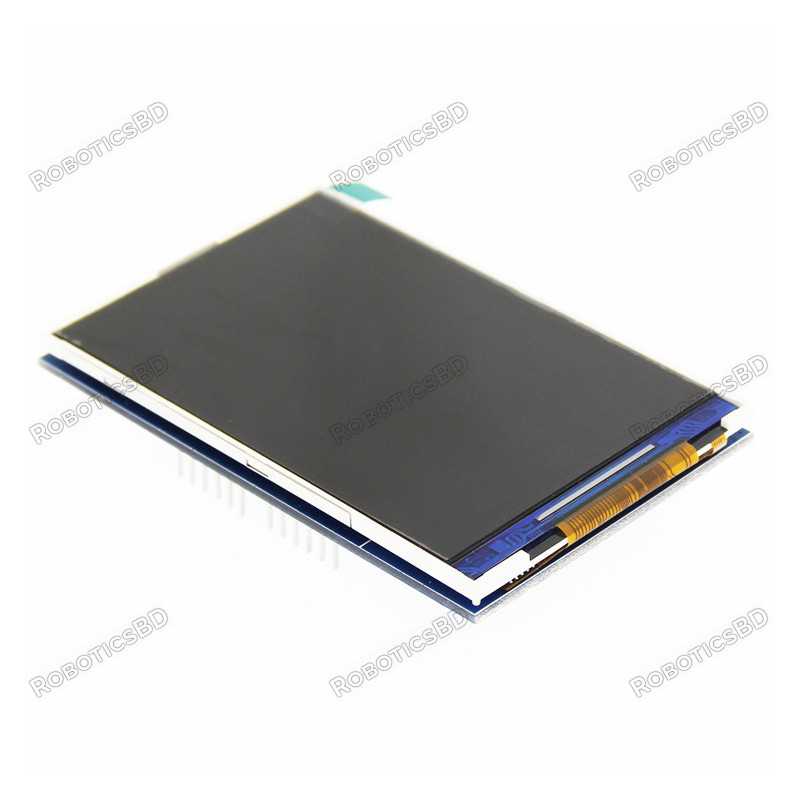

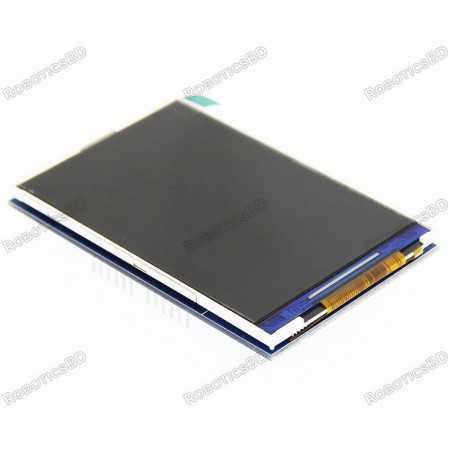

The 3.5 inch TFT LCD Display Shield for Arduino Uno is fully assembled, tested and ready to go, no soldering! Simply plug it in and load up a library – you’ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board. RoboticsBD

So spice up your Arduino UNO project with a beautiful large screen display shield with a built-in microSD card connection. This TFT display is big (3.5″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades)!

The Display comes with 480×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. 3.5″ diagonal LCD TFT display, with bright 4 white-LED backlights, default state: on
  2. It can control the backlight to connect the transistor to a digital pin
  3. 480×320 Pixels, with colorful and 18-bit, 262,000 different kinds of shade
  4. 8-bit digital interface, plus 4 control lines
  5. IL9486 Driver
  6. No Tocuh

Connect to Arduino:

Interface Definition
Number Pin Label Pin Description
1 LCD_RST LCD bus reset signal, low level reset
2 LCD_CS LCD bus chip select signal, low level enable
3 LCD_RS LCD bus command / data selection signal,low level: command, high level: data
4 LCD_WR LCD bus write signal
5 LCD_RD LCD bus read signal
6 GND Power ground
7 5V 5V power input
8 3V3 3.3V power input, this pin can be disconnected
9 LCD_D0 LCD 8-bit data Bit0
10 LCD_D1 LCD 8-bit data Bit1
11 LCD_D2 LCD 8-bit data Bit2
12 LCD_D3 LCD 8-bit data Bit3
13 LCD_D4 LCD 8-bit data Bit4
14 LCD_D5 LCD 8-bit data Bit5
15 LCD_D6 LCD 8-bit data Bit6
16 LCD_D7 LCD 8-bit data Bit7
17 SD_SS SD card SPI bus chip select signal, low level enable
18 SD_DI SD card SPI bus MOSI signal
19 SD_DO SD card SPI bus MISO signal
20 SD_SCK SD card SPI bus clock signal

Interfacing with Arduino:

  1. Program Download (3.5inch_Arduino_8BIT_Module_ILI9486_MAR3501_V1.1)

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Display Color RGB 65K color
SKU MAR3502(have no touch screen)
Screen Size 3.5(inch)
Type TFT
Driver IC ILI9486
Resolution 480*320 (Pixel)
Module Interface 8-bit parallel interface
Active Area 73.44*48.96(mm)
Module PCB Size 85.49*55.63(mm)
Operating Temperature -20℃~70℃
Storage Temperature -40℃~70℃
Operating Voltage 5V/3.3V
Power Consumption TBD
Product Weight(Package containing) 55g(have no touch screen)
Shipment Weight 0.053 kg
Shipment Dimensions 14 × 10 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. LCD WIKI
  2. 3.5inch_Arduino_8BIT_Module_MAR3501_User_Manual_EN.pdf
  3. datasheet_ILI9486.pdf
  4. QD3501 Specification

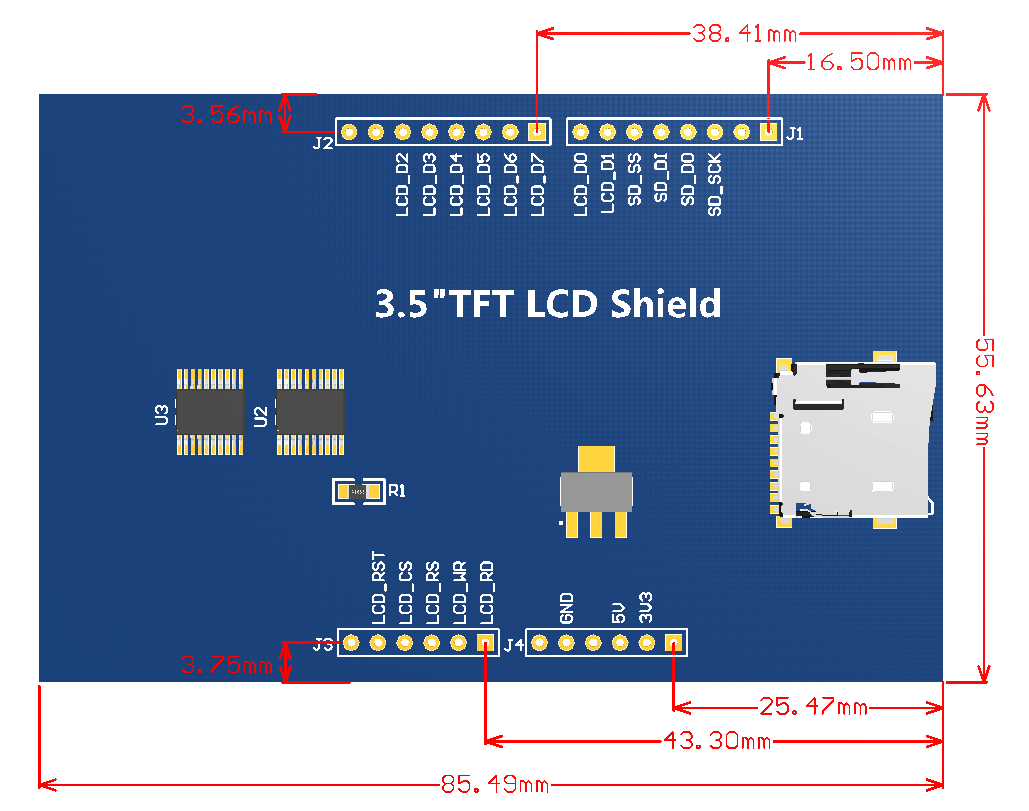

  5. Size

Package Includes:

1 x 3.5inch Arduino Display-UNO

1 x Stylus.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1219
8 Items

Specific References

EAN13
1219
