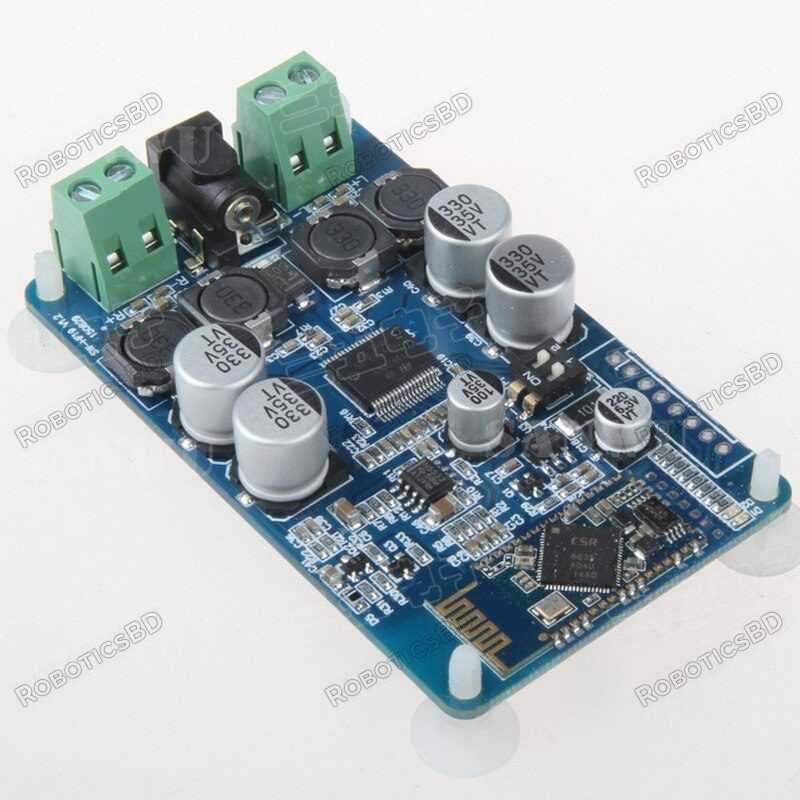

This is TDA7492p based is Class-D audio amplifier. This module has integrated a Bluetooth module, all the used components in the amplifying process, output connectors and control buttons. All you need to do is supply 12V to 36A to it, connect an 8-ohm 50W speaker to each output and connect a Bluetooth device to it and enjoy and control your favorite music wirelessly.
**Terminal Connector position is different from the picture as per stock
In the layout above you can see that the board has 5 control buttons. You can also use those to change the track or control the volume. There is a DIP 2 switches button. Combining the up/down position of each switch you can obtain 4 different filters for the output. In the layout above you can see each combination and the applied gain in each case. RoboticsBD
This Amplifier has Audio stereo input and connectivity to all versions of the Bluetooth connection, using CSR8635 Bluetooth chip with Bluetooth V4.0. Output Impedance of module is 8 ohms per channel. TDA7492 digital amplifier chip, designed to optimize the circuit layout, the sound quality is very good, big power DIP switches can be adjusted directly after the amp gain more respect and better promote greater damping horn. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 25 W + 25 W continuous output power at THD = 10% with VCC= 20 V and RL= 8 Ω
- Wide-range single-supply operation (8 – 26 V)
- High efficiency (η = 90%)
- Four selectable, fixed gain settings of nominally 21.6 dB, 27.6 dB, 31.1 dB and 33.6 dB
- Differential inputs minimize common-mode noise
- Standby and mute features
- Short-circuit protection
- Thermal overload protection
- Externally synchronizable
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Operating Voltage |
8 ~ 24VDC |
| Speaker Output Power |
25W+25W at THD 10% 8Ω @ 20Vdc. |
| Bluetooth |
CSR8635 Audio Bluetooth V4.0. |
| Input Power Jack |
5 mm DC jack |
| Compatible Speaker Impedance |
8Ω. |
| Headphone Output |
32Ω. Stereo 3.5mm Jack. |
| Fixed gain settings |
21.6dB, 27.6dB, 31.1dB and 33.6dB. |
| Length (mm) |
82 |
| Width (mm) |
50 |
| Height (mm) |
12 |
| Weight (gm) |
37 |
| Shipment Weight |
0.039 kg |
| Shipment Dimensions |
8 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x TDA7492P Bluetooth 4.2 CSR8635 Bluetooth Receiver Amplifier Audio Board 2x25W for 4/6/8/16 Ohm Speakers Module Parts Component.
