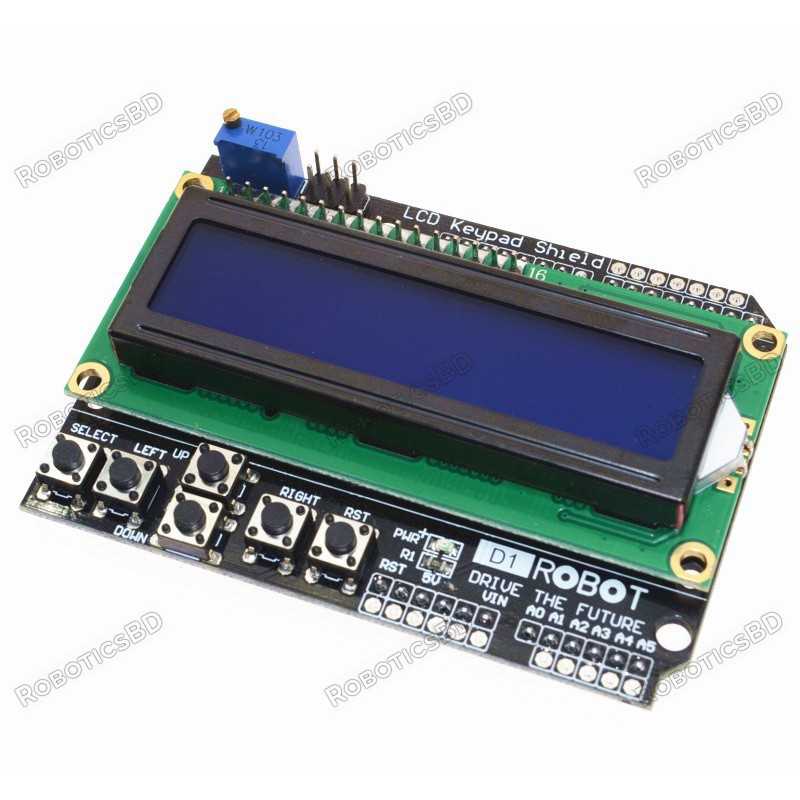

LCD Keypad Shield for Arduino

RBD-0159

  • Provides a user-friendly interface that allows users to go through the menu, make selections etc.
  • It consists of a 1602 white character blue backlight LCD.
  • The keypad consists of 6 keys select, up, right, down, left and reset.
  • To save the digital IO pins, the keypad interface only uses one ADC channel.
  • The key value is read out through a 5 stage voltage divider.
BDT 550.00
BDT 550.00 BDT 550.00 BDT 550.00 BDT 550.00
Tax included Tax excluded Tax included Tax excluded
BDT 550.00 Tax excluded
BDT 550.00 Tax included
BDT 0.00 Tax
BDT 550.00 Tax excluded
BDT 0.00 Tax
BDT 550.00 Tax included
Quantity
In-Stock
33 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The 1602 LCD Board Keypad Shield is sometimes called navigation shield because it comes with 6 momentary push buttons for menu navigation. Besides the push button, it also includes a 2×16 LCD.

This is a very popular LCD Keypad shield for Arduino and other variants. It includes a 2×16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD. The onboard LED indicates power on.

 Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. The LCD Keypad shield is developed for Arduino compatible boards, to provide a user-friendly interface that allows users to go through the menu, make selections etc.
  2. It consists of a 1602 white character blue backlight LCD.
  3. The keypad consists of 6 keys select, up, right, down, left and reset.
  4. To save the digital IO pins, the keypad interface only uses one ADC channel.
  5. The key value is read out through a 5 stage voltage divider.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 5
Push Buttons 5
Reset Button YES (Separate)
LCD Model 1602
Characters 16
Character Color White
Backlight Blue
Shield PCB Dimensions (mm) 80×58
Total Height (mm) 26
Weight (gm) 45
Shipment Weight 0.05 kg
Shipment Dimensions 6 × 5 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x 1602 LCD Board Keypad Shield
