RF Transceiver Radio Module nRF905 433/868/915MHz with Antenna

RBD-2928

Radio module (transmitter and receiver) operating in 433 MHz band with SPI communication interface. Powered by 2.7 V - 3.3 V, the outputs are goldpin connectors.It has an external antenna with SMA connector.

BDT 490.00
BDT 490.00 BDT 490.00 BDT 490.00 BDT 490.00
Tax included Tax excluded Tax included Tax excluded
BDT 490.00 Tax excluded
BDT 490.00 Tax included
BDT 0.00 Tax
BDT 490.00 Tax excluded
BDT 0.00 Tax
BDT 490.00 Tax included
Quantity
30 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

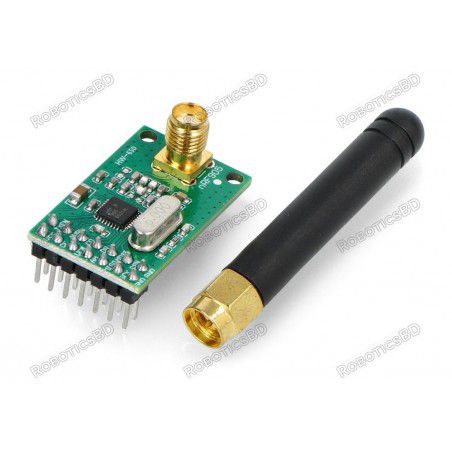

Product description: nRF905 433 / 868 / 915 MHz radio module - THT transceiver with antenna

Radio module (transmitter and receiver) operating in 433 MHz, 868 MHz and 915 MHz band with SPI communication interface. It is powered by2.7 V - 3.3 V.The devicehas an external antenna which is connected to the SMA connector, the signals are led to the goldpin connectors.


Since the device works with voltage up to 3.3 V, in order to connect with boards operating on 5 V (e.g.Arduino Uno) it is necessary to usea converter.

Product compatible with Arduino

On the Internet you can findconnection instructionsand sample programs for Arduino onGitHub.

Radio module specification nRF905 433 / 868 / 915 MHz

  • Power supply voltage: 1.7 V - 3.3 V
  • Power consumption: 12.5 mA - RX, 30 mA - TX
  • Maximum output power: 10 dBm
  • The sensitivity of the receiver: - 100 dBm
  • Frequency of operation: 433 MHz, 868 MHz, 915 MHz
  • Communication interface: SPI
  • GMSK modulation
  • SMA connector (external antenna included)
  • Dimensions: 31 x 19 mm
  • Mounting: threaded - raster 2.54(goldpin connectors)

Product Details
RBD-2928
30 Items

Specific References

EAN13
2928
