SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module Robotics Bangladesh
  • SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module Robotics Bangladesh

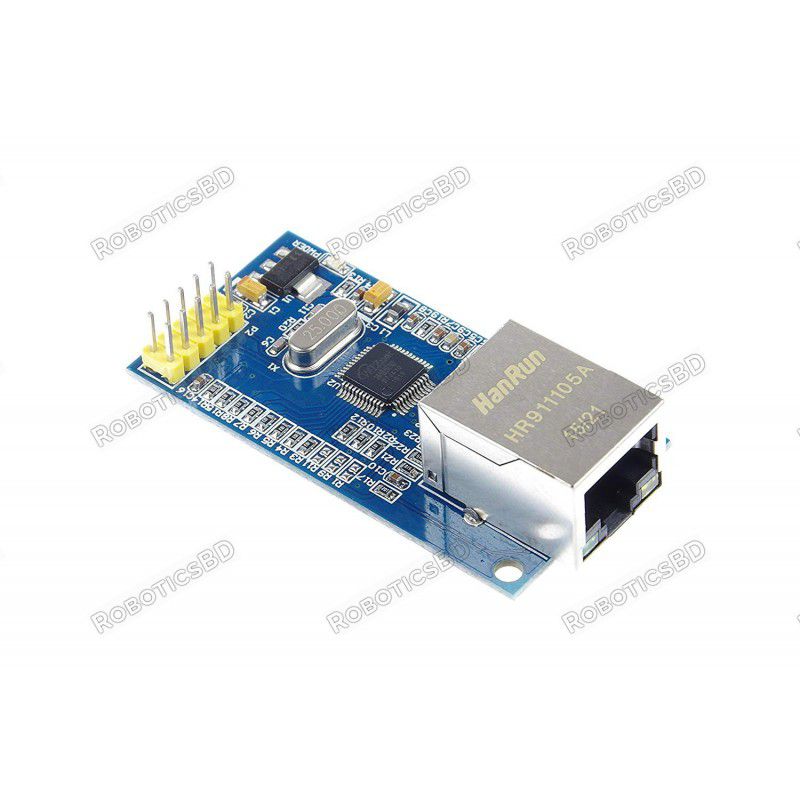

SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module

RBD-2720

  1. Chip type: W5500.
  2. Supports both 3.3V & 5V.
  3. Support Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE.
  4. 10BaseT/100BaseTX Ethernet PHY embedded.
  5. Supports automatic response (full duplex/half duplex mode).
  6. Internal 32Kbytes Memory for Tx/Rx Buffers.
BDT 650.00
BDT 650.00 BDT 650.00 BDT 650.00 BDT 650.00
Tax included Tax excluded Tax included Tax excluded
BDT 650.00 Tax excluded
BDT 650.00 Tax included
BDT 0.00 Tax
BDT 650.00 Tax excluded
BDT 0.00 Tax
BDT 650.00 Tax included
Quantity
29 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. W5500 enables users to have the Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC and PHY embedded.

The SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module based on Ethernet WIZNET new type of chip W5500, module integrates the whole hardware TCP/IP protocol stack, no need code implements the TCP/IP protocol stack. The module Supports transmission rate of 10/100MBPS.  Also, support sleep mode and wake on LAN, Within the integrated 32K TX/RX cache.

SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module has 8 independent ports run at the same time, Module supports 3.3V or 5V power supply, convenient for the user to use in the SCM system different, module and MCU system communication mode is SPI protocol.  Support SPI clock frequencies up to 80M, provide STM32 and 51 SCM client, server, three modes of UDP routines.

Applications:

  1. Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters
  2. Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc.
  3. Parallel-to-Ethernet: POS / Mini Printers, Copiers
  4. USB-to-Ethernet: Storage Devices, Network Printers
  5. GPIO-to-Ethernet: Home Network Sensors
  6. Security Systems: DVRs, Network Cameras, Kiosks
  7. Factory and Building Automation
  8. Medical Monitoring Equipment
  9. Embedded Servers

Features:

  1. 10BaseT/100BaseTX Ethernet PHY embedded.
  2. Supports automatic response (full duplex/half duplex mode).
  3. Supports 8 independent sockets simultaneously.
  4. Internal 32Kbytes Memory for Tx/Rx Buffers.
  5. Power off mode: support.
  6. Network wake: support.
  7. SPI interface (SPI MODE 0, 3), convenient connection with MCU.

Package Includes:

1 x SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module.

Product Details
RBD-2720
29 Items

Specific References

EAN13
2720
