A6 Pro Serial GPRS GSM Module Core Developemnt Board
  • A6 Pro Serial GPRS GSM Module Core Developemnt Board

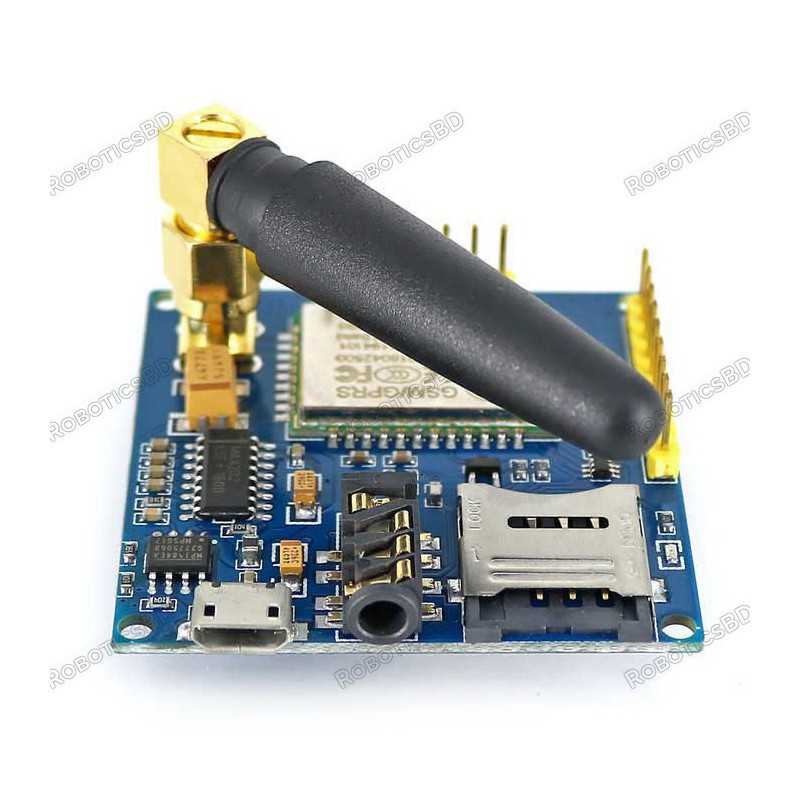

A6 Pro Serial GPRS GSM Module Core Development Board

RBD-0552

  • Working frequency: quad-band network, 850 / 900 / 1800 / 1900MHz
  • Working voltage: 4.8-9VDC(On-board voltage regulator circuit supply power for A6 module)
  • Working Current: maximum of 2A. RoboticsBD
BDT 1,100.00
BDT 1,100.00 BDT 1,100.00 BDT 1,100.00 BDT 1,100.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,100.00 Tax excluded
BDT 1,100.00 Tax included
BDT 0.00 Tax
BDT 1,100.00 Tax excluded
BDT 0.00 Tax
BDT 1,100.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is professional version serial GSM / GPRS core development board based on GPRS A6 module. It supports dual-band GSM/GPRS network, available for GPRS and SMS message data remote transmission. RoboticsBD

The board features compact size and low current consumption. With power saving technique, the current consumption is as low as 3mA in sleep mode.

It communicates with microcontroller via UART port, supports command including GSM 07.07, GSM 07.05 and Ai-Thinker enhanced AT Commands.

 Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Caution: Use a resistor divider circuit before interfacing it with Arduino to avoid the damage to the module.

Development Board Features :

  1. Working frequency: quad-band network, 850 / 900 / 1800 / 1900MHz
  2. Working voltage: 4.8-9VDC(On-board voltage regulator circuit supply power for A6 module)
  3. Working Current: maximum of 2A
  4. Sleep Current: 5mA
  5. Onboard Micro SIM card holder, you can install Micro SIM card
  6. Onboard Micro USB interface for external power supply
  7. Communication Interface: TTL serial port / RS232 serial port
  8. Baud rate: 115200bps and it can also be set by AT command.
  9. Interface logic voltage: 3.3V
  10. Make and answer phone calls using a headset and electret microphone.
  11. Send and receive SMS messages.
  12. Send and receive GPRS data (TCP/IP, HTTP, etc.) RoboticsBD
  13. Be used to test the Ai-Thinker GPRS A6 module
  14. Pin pitch: 2.54mm
  15. Onboard antenna interface: SMA and IPX

Antenna Features :

  1. Suitable for SIM800L GSM modules / for Arduino SIM900 GPRS Shield
  2. Working voltage: 4.8-9VDC(On-board voltage regulator circuit supply power for A6 module)
  3. Antenna gain: +2.0 ± 0.7 dBi @ 880 MHz, +2.0 ± 0.7 dBi @ 1800 MHz
  4. S.W.R <= 2.0 @ 2100 MHz ~ 2500 MHz
  5. Output Impedance: 50 Ohm
  6. Antenna interface: SMA

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Form Color Blue and Black
Material PCB Alloy and Plastic
Frequency 850/900/1800/1900Mhz
Working Voltage DC 4.8~9V
Shipment Weight 0.019 kg
Shipment Dimensions 4.5 × 4.5 × 1.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Basic project with A6 Pro Serial GPRS GSM Module Core Development Board

Package Includes :

1 x A6 Pro Serial GPRS GSM Module Core Development Board.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0552

Specific References

EAN13
0552
