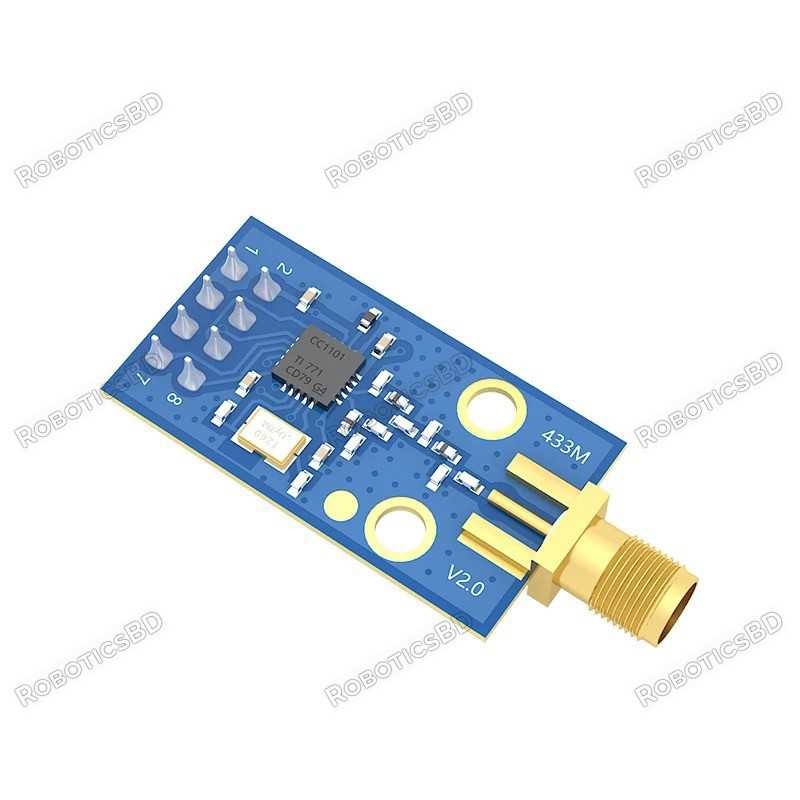

CC1101 433mhz 100mW SMA Antenna E07-M1101D-SMA uhf Wireless Transceiver Module

RBD-2368

This is a self-developed, small-size, 433 MHz DIP wireless module with a maximum tx power of 10mW based on CC1101 of Texas Instruments. Due to the adoption of the very mature CC1101 as the core chip, its stability has been unanimously praised by user. The module is mainly used in smart home, industrial, scientific research and medical, as well as short-range wireless communication equipment.

BDT 550.00
BDT 550.00 BDT 550.00 BDT 550.00 BDT 550.00
Tax included Tax excluded Tax included Tax excluded
BDT 550.00 Tax excluded
BDT 550.00 Tax included
BDT 0.00 Tax
BDT 550.00 Tax excluded
BDT 0.00 Tax
BDT 550.00 Tax included
Quantity
20 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

E07-M1101D-SMA CC1101 433mhz 100mW SMA Antenna uhf Wireless Transceiver Dip 433 MHz Transmitter and Receiver rf Module



RF Parameter

Value

Remark

Working frequency

387~464 MHz

Default:  433MHz (26MHz oscillator)

Transmitting power

10 dBm

Max. Power (10mW)

Receiving sensitivity

-108 dBm

Air data rate: 0.6kbps

Air data rate

0.6k~500kbps

Default: 0.6kbps

Test distance

1000m

In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 0.6kbps


Hardware Parameter

Value

Remark

Size

15 * 30 mm

Without SMA-K

Antenna type

SMA-K



Communication interface

SPI



Package

DIP




Electronic parameter

Min.

Typ.

Max.

Unit

Condition

Power supply

1.8

3.3

3.6

V



Communication level

1.8

3.3

3.6

V



Transmitting current

27

29

32

mA

10dBm(10mW)

Receiving current

16

18

20

mA



Sleep current

0.3

0.6

2.1

μA



Operating temperature

-40

20

+85

℃



Operating humidity

10

60

90

%



Storage temperature

-40

20

+125

℃


Se2535bbb3f7f4db7b6e99a2d362a587b3.jpg?width=960&height=1142&hash=2102 S02259215d7b74be3acc7d15daa5840a35.jpg?width=960&height=337&hash=1297
Product Details
RBD-2368
20 Items

Specific References

EAN13
2368
