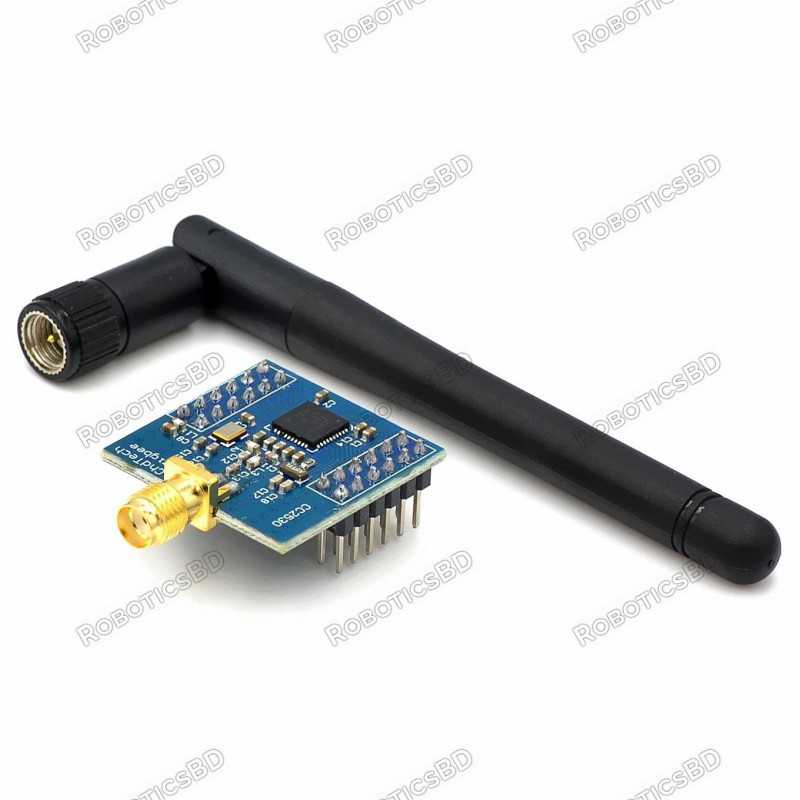

CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port Robotics Bangladesh
  • CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port Robotics Bangladesh
  • CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port Robotics Bangladesh
  • CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port Robotics Bangladesh

CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port

RBD-2136

  • Very Few External Components
  • Excellent Receiver Sensitivity and Robustness to Interference.
  • Programmable Output Power Up to 4.5 dBm.
  • High-Quality Construction
BDT 950.00
BDT 950.00 BDT 950.00 BDT 950.00 BDT 950.00
Tax included Tax excluded Tax included Tax excluded
BDT 950.00 Tax excluded
BDT 950.00 Tax included
BDT 0.00 Tax
BDT 950.00 Tax excluded
BDT 0.00 Tax
BDT 950.00 Tax included
Quantity
In-Stock
19 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a Wireless Core Development Board based on CC2530, which supports Zigbee Protocol. The Module has a 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver, with Excellent Receiver Sensitivity and Robustness to Interference this module has programmable output power up to 4.5 dBm. Made with very few external components, this module supports 2.4-GHz IEEE 802.15.4 systems.. Featured By RoboticsBD.

The pin configuration is given below:

Pin Number/Name Pin Name
P03 TX
P02 RX
VCC 3.3V
GND GND
P21 Debug Data
P22 Debug Clock
RST Reset

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver.
  2. Excellent Receiver Sensitivity and Robustness to Interference.
  3. Programmable Output Power Up to 4.5 dBm.
  4. Very Few External Components
  5. 2.4-GHz IEEE 802.15.4 Systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Home/Building Automation.
  2. Lighting Systems.
  3. Industrial Control and Monitoring.
  4. Low-Power Wireless Sensor Networks.
  5. Consumer Electronics.
  6. Health Care.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 3.3
Operating Current (A) 0.0205
CPU Core 8051
Antenna Type External
GPIO 21
Operating Temperature (°C) -40 ~ +125
Frequency Bands 2394-2507MHz
Length (mm) 50
Width (mm) 30
Height (mm) 10
Weight (gm) 50
Shipment Weight 0.055 kg
Shipment Dimensions 5 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. To flash this module, Follow the instructions given on this link .

Package Includes:

1 x CC2530 Zigbee Module UART Wireless Core Board Development Board CC2530F256 Serial Port Wireless Module 2.4GHz Zigbee

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2136
19 Items

Specific References

EAN13
2136
