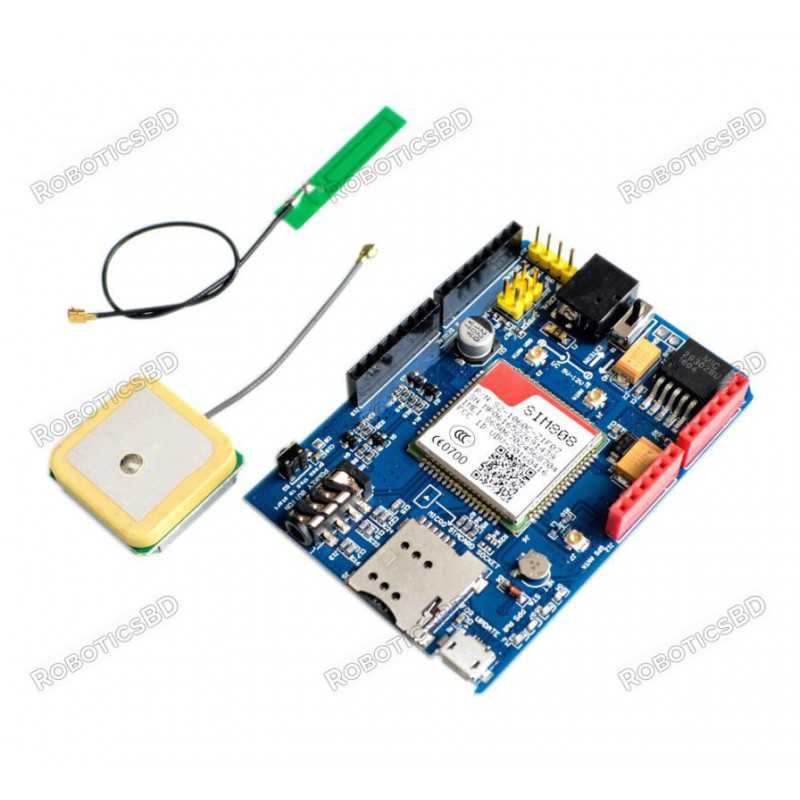

SIM808 GPRS/GSM+GPS Shield

RBD-1037

  • Quad-band 850/900/1800/1900MHz
  • Inner MT3337 GPS receiver, -165dBm precision, control on a same serial port.
  • Earphone/ microphone outputs on a card or external 32-ohm speaker + supports voice calls with an electret microphone.
  • Sending and receiving SMS.
BDT 3,950.00
BDT 3,950.00 BDT 3,950.00 BDT 3,950.00 BDT 3,950.00
Tax included Tax excluded Tax included Tax excluded
BDT 3,950.00 Tax excluded
BDT 3,950.00 Tax included
BDT 0.00 Tax
BDT 3,950.00 Tax excluded
BDT 0.00 Tax
BDT 3,950.00 Tax included
Quantity
In-Stock
39 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SIM808 module is a GSM/GPS/BT three-in-one function module. It is based on the latest GSM/GPS/BT module SIM808 from SIMCOM, supports GSM/GPRS Quad-Band network and combines GPS technology for satellite navigation. It has high GPS receive sensitivity with 22 tracking and 66 acquisition receiver channels. Besides, it supports A-GPS that available for indoor localization， and it also supports for Bluetooth 3.0.

The module is controlled by AT command via UART and supports 3.3V and 5V logical level.

This shield is built to directly work with Arduino

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Application:

  1. M2M (Machine 2 Machine) Application - To transfer control data using SMS or GPRS between two machines located at two different factories.
  2. Remote control of appliances - Send SMS while you are at your office to turn on or off your washing machine at home.
  3. Remote Weather station or a Wireless Sensor Network - Make it with [Crowduino v1.0|Crowduino v1.0] and create a sensor node capable of transferring sensor data (like from a weather station - temperature, humidity, etc.) to a web server
  4. Vehicle Tracking System - Install GPRS+GSM+GPS Shield in your car and publish your location live on the internet. Can be used as an automotive burglar alarm. RoboticsBD

Features:

  1. Quad-band 850/900/1800/1900MHz
  2. GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
  3. GPRS mobile station class B
  4. Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
  5. Supports charging control for Li-Ion battery
  6. Supports Real-Time Clock
  7. Integrated GPS/CNSS and supports A-GPS
  8. Low power consumption, 10mA in sleep mode
  9. Supports GPS NMEA protocol
  10. AT command operation, can support SMS, phone, GPRS data, GPS data is automatically output, embedded TCP protocol to support transparent mode and command mode, supports HTTP protocol to support DTMF decoding, support MMS, support recording function, etc.
  11. Standard Micro SIM Card. RoboticsBD

Interface Function:

GPRS+GSM+GPS Shield interface.jpg

Power supply - Vin connected to external 5~9VDC power supply

Antenna interface - connected to external antenna

Serial port select - select either software serial port or hareware serial port to be connected to GPRS+GSM+GPS Shield Shield

Hardware Serial - D0/D1 of Arduino/Crowduino

Software serial - D7/D8 of Arduino/Crowduino

Status LED - tell whether the power of SIM808 is on

Net light - tell the status about SIM808 linking to the net

1PPS - tell the status about SIM808 get the location

UART of SIM808 - UART pins breakout of SIM808

Microphone - to answer the phone call

Speaker - to answer the phone call

GPIO,PWM and ADC of SIM808 - GPIO,PWM and ADC pins breakout of SIM808

Power key - power up and down for SIM808

Cautions:

  1. Make sure your SIM card is unlocked.
  2. The product is provided as is without an insulating enclosure. Please observe ESD precautions especially in dry (low humidity) weather.
  3. The factory default setting for the GPRS Shield UART is autoloading. It supports baud rate from 1200 bps to 115200bps. (Can be changed using AT commands). RoboticsBD

Pins usage on Arduino:

D0 - Unused if you select hardware serial port to communicate with GPRS+GSM+GPS Shield

D1 - Unused if you select hardware serial port to communicate with GPRS+GSM+GPS Shield

D2 - Unused

D3 - Unused

D4 - Unused

D5 - Unused

D6 - Unused

D7 - Used if you select software serial port to communicate with GPRS+GSM+GPS Shield

D8 - Used if you select software serial port to communicate with GPRS+GSM+GPS Shield

D9 - Used for software control the power up or down of the SIM808

D10 - Unused

D11 - Unused

D12 - Unused

D13 - Unused

D14(A0) - Unused

D15(A1) - Unused

D16(A2) - Unused

D17(A3) - Unused

D18(A4) - Unused

D19(A5) - Unused

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model SIM808
Supports 2G Sim
Input Voltage (Volt) 5V
Input current (min) 2A
Operating Voltage (V) 5
Accuracy (meter) Approx. 2.5
Dimensions (mm) 80 x 50 x 14
Weight (gm) 30
Shipment Weight 0.05 kg
Shipment Dimensions 10 × 6 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. SIM808 GPRS/GSM+GPS Shield v1.1
  2. SIM800 Series AT Command Manual V1.05
  3. SIM800 Series AT Command Manual V1.09
  4. SIM900 Series GNSS Application Note V1.00
  5. SIM808_Hardware Design_V1.02

Package Includes:

1 x SIM808 GPRS/GSM+GPS Shield.
