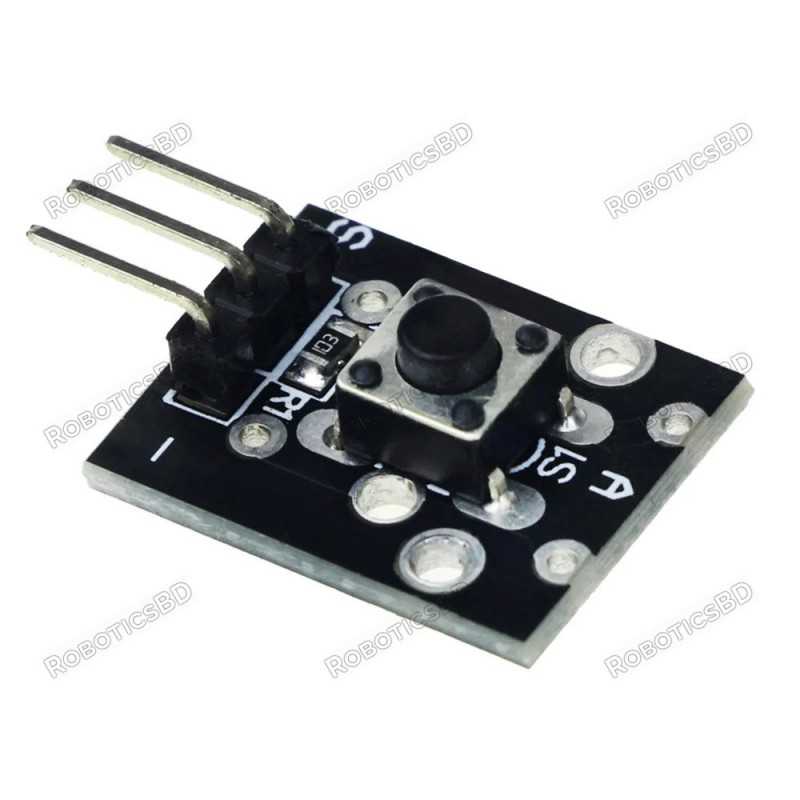

Momentary Tactile Push Button Module DC 5V Switch

RBD-2086

  • Operating Voltage: 5V
  • Contact Resistance : 50mΩ max (initial)
  • Electrically Life:100,000 cycles
  • Environment temperature: -25°C to +105°C
  • Operating Force: 180/230(±20gf)
  • Seal temperature:250ºC-280ºC
  • I/O pins: 3 pins
BDT 50.00
BDT 50.00 BDT 50.00 BDT 50.00 BDT 50.00
Tax included Tax excluded Tax included Tax excluded
BDT 50.00 Tax excluded
BDT 50.00 Tax included
BDT 0.00 Tax
BDT 50.00 Tax excluded
BDT 0.00 Tax
BDT 50.00 Tax included
Quantity
In-Stock
140 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This Momentary Tactile Push Button Module DC 5V 12V Switch is ideally suited to add a button to your projects and gives a high signal when it is pressed.

The module of the push button is a fully-fledged device with which you can install it immediately in the project, without using a pull-up or tightening resistances, because this is already in the circuit. The button together with the resistor is located on the board, where there are holes for installation. The built-in resistor has a rating of 10 kΩ.

The module is designed for two contacts: when pressed, they are closed and open when released. There are also 3 outputs on the board: I, S, + 5V. Contact I is connected to the common wire of the circuit, S is the output of the module and + 5V is connected to the power supply.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

Note: PCB might be different from the picture as per stock

General Specification
Operating Voltage (VDC) 5
Contact Resistance ≤50 MΩ
Operating Temperature Range (°C) -25 to 105
Mech. & Electrical Lifecycle ≈ 100,000
PCB thickness 1.5 mm
Length (mm) 20
Width (mm) 16
Height (mm) 7
Weight (gm) 1 (approx.)
Shipment Weight 0.01 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

Package Includes:

1 x Momentary Tactile Push Button Module DC 5V 12V Switch
