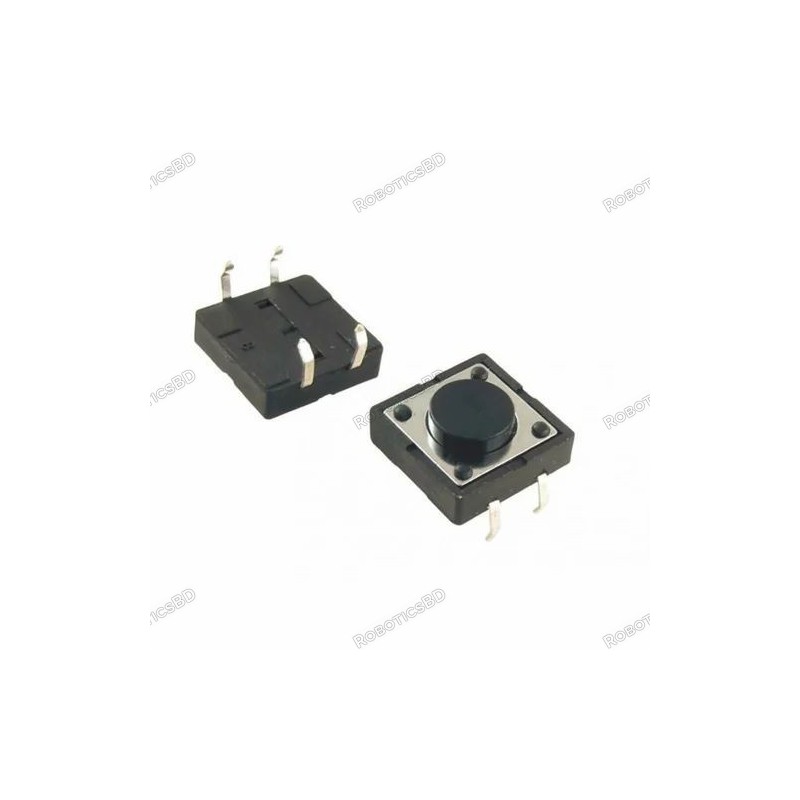

Push Button Switch 4 Pin(12MM*12MM) Robotics Bangladesh

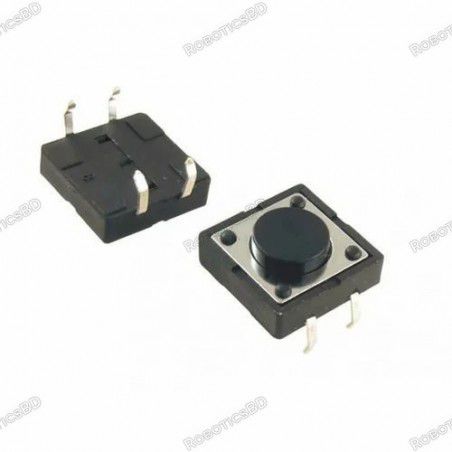

  • Push Button Switch 4 Pin (12MM*12MM) Robotics Bangladesh
  • Push Button Switch 4 Pin(12MM*12MM) Robotics Bangladesh

Push Button Switch 4 Pin (12MM*12MM)

RBD-1788

  • Through-hole design.
  • Shaft Shape: Round
  • Function: Push to ON
  • High operating force (3.0N or 3.6N) suited to automotive equipment requirements
  • The long life of 300,000 cycles realized despite the high operating force

BDT 7.00
BDT 7.00 BDT 7.00 BDT 7.00 BDT 7.00
Tax included Tax excluded Tax included Tax excluded
BDT 7.00 Tax excluded
BDT 7.00 Tax included
BDT 0.00 Tax
BDT 7.00 Tax excluded
BDT 0.00 Tax
BDT 7.00 Tax included
Quantity
In-Stock
934 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

12x12 mm Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Features :

  1. Through-hole design.
  2. Shaft Shape: Round
  3. High operating force (3.0N or 3.6N) suited to automotive equipment requirements
  4. The long life of 300,000 cycles realized despite the high operating force
  5. Used in the fields of electronic products, household appliances and more.
  6. High precision mechanism design offers acute operation and long service life.
  7. Compact and lightweight, easy to carry and dismantling.
  8. Good electrical conductivity.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage 12 V DC
Operating Current 50mA
On/Off Function Push to ON
Switch Type Momentary
Mounting Type Through-hole
Contact Material Aluminium alloy
Contact Resistance 50mΩ
Insulation Resistance 100MΩ
Operating Temperature Range -20°C to +70°C
Operation Force About 3-5N
Operation Stroke 1.05mm
Body Material Plastic
Mech. & Electrical Life 300,000 Cycles
Protection Grade IP65
Length (mm) 12
Width (mm) 12
Height (mm) 12/10/8/6
Weight (gm) 1 (approx) (each)
Shipment Weight 0.01 kg
Shipment Dimensions 5 × 5 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Push Button Switch 4 Pin (12MM*12MM)
