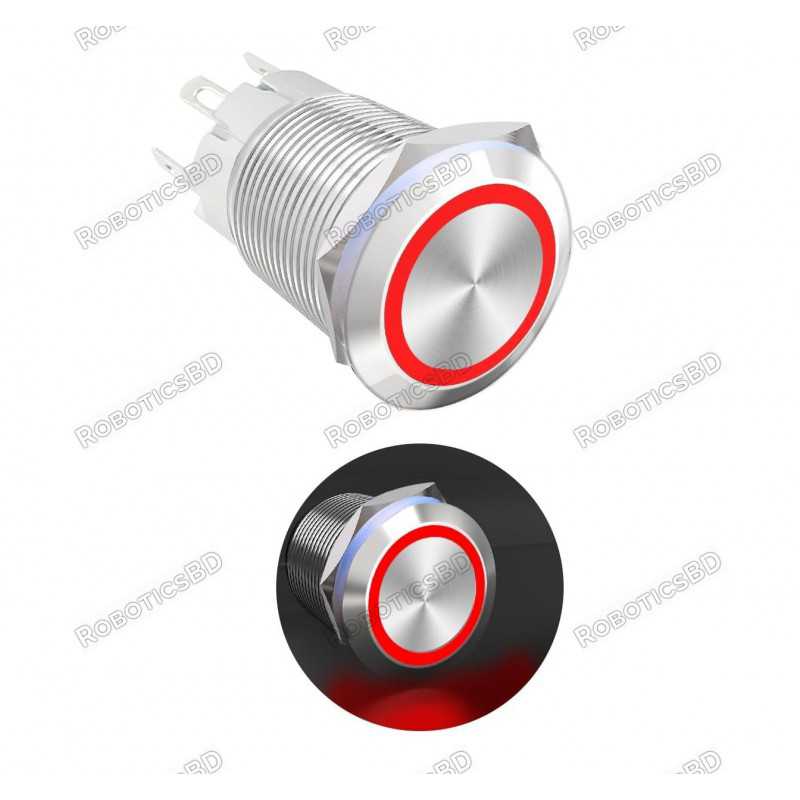

Metal Pushbutton with Red LED Ring - 16mm Momentary

RBD-0887

  • Rugged chrome-plated metal pushbutton with red LED ring
  • Ideal for panels up to 1/2" thick
  • Easy installation with a simple drill hole
  • Built-in resistor for LED
  • Supports 3 to 6V for LED operation
  • Momentary pushbutton design
BDT 219.00
BDT 219.00 BDT 219.00 BDT 219.00 BDT 219.00
Tax included Tax excluded Tax included Tax excluded
BDT 219.00 Tax excluded
BDT 219.00 Tax included
BDT 0.00 Tax
BDT 219.00 Tax excluded
BDT 0.00 Tax
BDT 219.00 Tax included
Quantity
In-Stock
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Enhance your control panels with the stylish and durable Metal Pushbutton with Red LED Ring - 16mm Momentary. This chrome-plated metal button features a sleek design, a bright red LED ring, and a momentary pushbutton mechanism. It's perfect for a wide range of applications, from industrial control panels to home automation projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Chrome-plated metal construction for durability and aesthetics
  2. Red LED ring for clear visual indication
  3. Momentary pushbutton design for easy operation
  4. Built-in resistor for LED
  5. Supports 3 to 6V for LED operation
  6. Versatile wiring options for LED
  7. Easy installation with a simple drill hole

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Industrial control panels
  2. Automation systems
  3. Robotics
  4. Medical equipment
  5. Home automation projects
  6. DIY electronics projects

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Drill hole diameter 16mm
Switch rating 3A / 250VDC
Switch contacts 1 NO, 1 NC
Material Chrome plated brass
Contact resistance 1000 Mohm
Temperature -20 C to +55 C
Mechanical life > 500,000
Electrical life > 50,000
Panel thickness 1-13mm
Operating pressure 1.5 - 2.5 N
Operating stroke 2mm
Lamp rated voltage 6V
Shipment Weight 0.015 kg
Shipment Dimensions 5 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x Metal Pushbutton with Red LED Ring - 16mm Momentary
