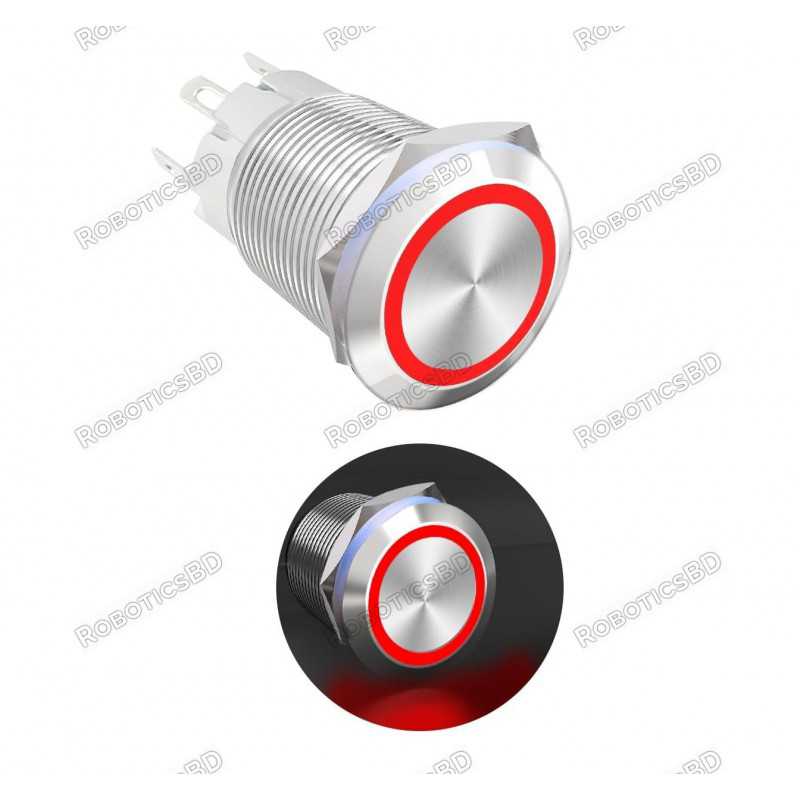

Metal Self-Locking Switch with Red LED Ring - 16mm Latching

RBD-0890

  • Rugged chrome-plated metal pushbutton with red LED ring
  • Latching design for maintaining the switch state
  • Built-in resistor for LED
  • Supports 3 to 6V for LED operation
  • IP65 and IK08 protection ratings
  • Durable stainless steel and chrome-plated brass construction
BDT 249.00
BDT 249.00 BDT 249.00 BDT 249.00 BDT 249.00
Tax included Tax excluded Tax included Tax excluded
BDT 249.00 Tax excluded
BDT 249.00 Tax included
BDT 0.00 Tax
BDT 249.00 Tax excluded
BDT 0.00 Tax
BDT 249.00 Tax included
Quantity
In-Stock
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Enhance your control panels with the stylish and durable Metal Self-Locking Switch with Red LED Ring - 16mm Latching. This chrome-plated metal button features a sleek design, a vibrant red LED ring, and a latching pushbutton mechanism. It's perfect for a wide range of applications, from industrial control panels to home automation projects. Featured By RoboticsBD.

This button is a latching push button, when you press and release it the 'normally-open' contact shorts to the common contact and stays that way. When you press and release it a second time, the contacts open up again.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Chrome-plated metal construction for durability and aesthetics
  2. Red LED ring for clear visual indication
  3. Latching pushbutton design for maintaining the switch state
  4. Built-in resistor for LED
  5. Supports 3 to 6V for LED operation
  6. IP65 and IK08 protection ratings for water resistance and impact resistance
  7. Durable stainless steel and chrome-plated brass construction

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Industrial control panels
  2. Automation systems
  3. Robotics
  4. Medical equipment
  5. Home automation projects
  6. DIY electronics projects

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Panel Cutout Φ16mm
Rating 0.5A/220VAC
Contact Configuration 1NO1NC
Protection Class IP65,IK08
Pin Terminal 2.8×0.5mm
Switching C(Single-break slow-motion contact)
Panel Thickness 1～8mm
Torque About 0.6Nm
Mechanical Life 500,000 cycles
Electrical Life 50,000 cycles
Actuator Stainless steel/Chrome plated brass/Black plated brass
Body Stainless steel/Chrome plated brass/Black plated brass
Base PA
Actuation Force About 1.7N
Actuation Travel About 3mm
Shipment Weight 0.015 kg
Shipment Dimensions 7 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x Metal Self-Locking Switch with Red LED Ring - 16mm Latching
