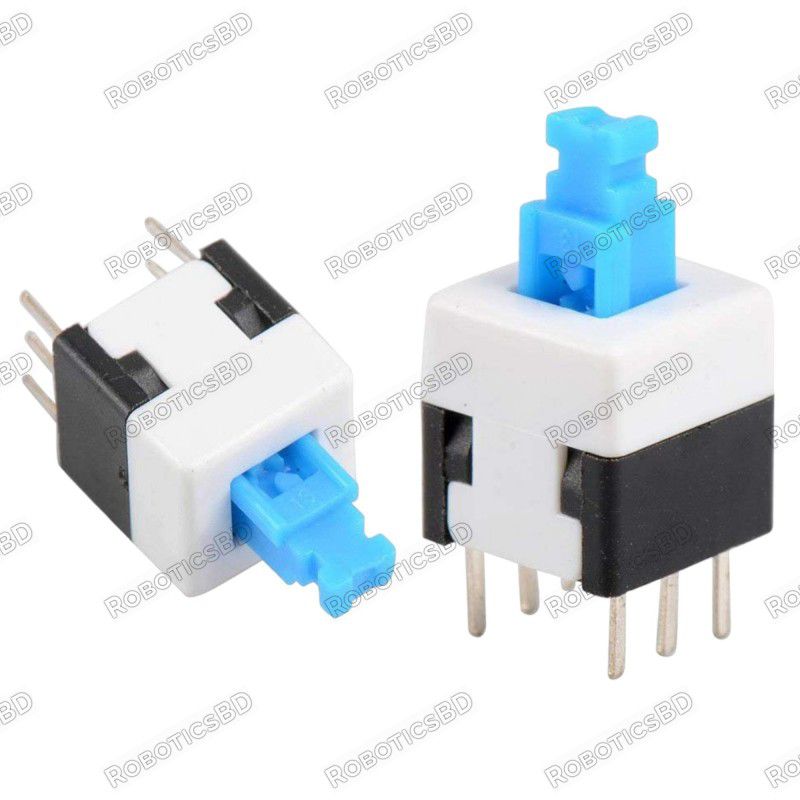

7x7mm latching Push Telephone Switch

RBD-1888

  • Switch type: Momentary
  • Small  7 x 7 mm. Size
  • PCB through-hole mounting
  • Maximum voltage DC30V
  • Operating Current 0.1 A
BDT 10.00
BDT 10.00 BDT 10.00 BDT 10.00 BDT 10.00
Tax included Tax excluded Tax included Tax excluded
BDT 10.00 Tax excluded
BDT 10.00 Tax included
BDT 0.00 Tax
BDT 10.00 Tax excluded
BDT 0.00 Tax
BDT 10.00 Tax included
Quantity
In-Stock
335 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This 7×7 mm 5 Pin DPDT latching Push switch” is also named “Mini Telephone Switch and Mini DPDT Push Switch”

This is a Momentary Switch The mini push button 5 pin switch is useful in controlling power connections most of the time. The blue colored square push button is  DIP through-hole for mounting on PCB.

This 7x7mm 5 Pin DPDT latching Push switch has a High-precision mechanism design, perfect operation and long service life. Mostly used in electronic products, household appliances dashboard and other fields. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Switch type: Momentary Switch
  2. Small  7 x 7 mm. Size
  3. PCB through-hole mounting
  4. Maximum voltage DC30V
  5. Operating Current 0.1 A

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Rating DC 30V, 0.1A
Circuit DPDT
Operation force 1.8N±0.3N
Operating Temperature Range -5~35℃
Travel Full 1.8
Material Plastic and metal
Contact Resistance 100mΩ max
Heat Resistance 80±2℃,72h
Moisture resistance 72h,40±2℃
Operation life 10,000 cycles
Shipment Weight 0.01 kg
Shipment Dimensions 4 × 4 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x 7x7mm 5 Pin DPDT latching Push Switch.
