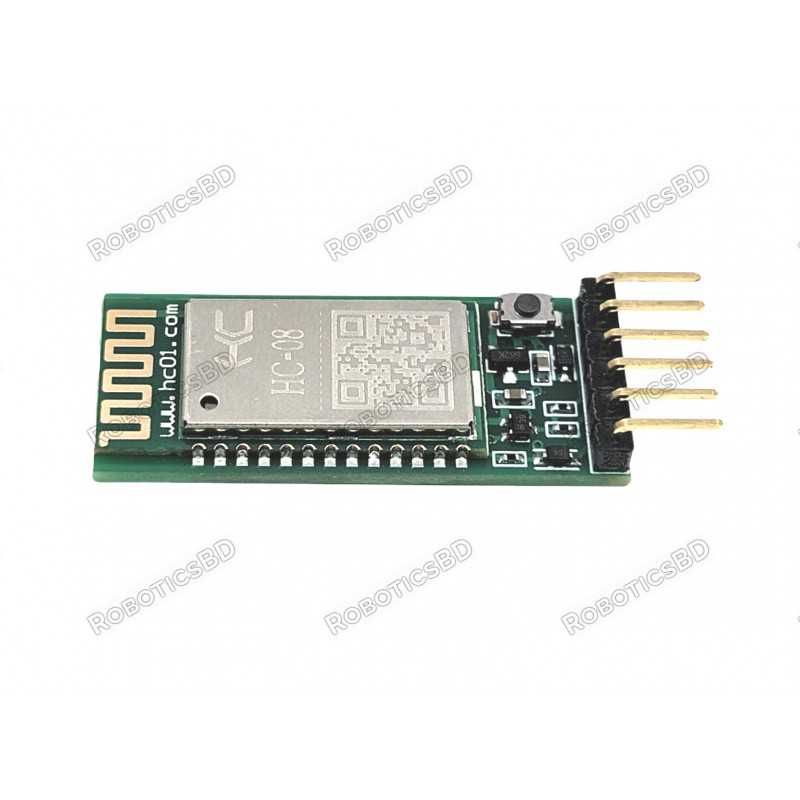

The HC-08 Bluetooth 4.0BLE Serial Port Module uses BLE (Bluetooth Low Energy) protocol. The main difference between Bluetooth and BLE is power consumption. Bluetooth consumes more power than BLE but can handle a lot of data. BLE is more appropriate for quickly transferring small amounts of data between nearby devices. BLE is less power-hungry, so the devices running this protocol can operate for years with a small battery; perfect for IoT!
HC-08 is a Bluetooth 4.0 low energy module, it can easily connect to iOS 5 and Android 4.3 or above by using a serial terminal app. You can use the Bluetooth communication up to 87 yards (80 meters) with this Bluetooth BLE module. It also runs on a 2.4GHz frequency. The chipset is CC2540 with 256K Byte space. You can change the role and serial baud rate and it supports AT commands for configuration.
HC-08 is a relatively new module made by an experienced Bluetooth design and manufacturing supplier in China. Its mass produced and therefore well-tested. It can be incorporated into products or projects without worrying about being able to get it again. It’s already widely used in many Bluetooth projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Frequency: 2.4GHz ISM.
- Protocol: BLE 4.0.
- Max transmitting power: max. 4dBm.
- Modulation System: GFSK.
- Serial Baud Rate: 1200 to 115200 bps.
- Reference Distance: 80 meters.
- Speed: 1Mbps (Max).
- Power supply: 2.0 – 3.6 V.
- Sleep Mode Current: 0.4uA (MODE 2).
- Communication Port: UART 3.3V TTL.
- Working temperature: -20 ~ +75°C.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Version |
HC-4.0 |
| Supply Voltage(V) |
2 – 5 |
| Serial Baud Rate |
1200 to 115200 bps |
| Speed |
1Mbps (Max) |
| Dimensions (mm) |
38 x 16 x 4 |
| Weight (gm) |
2 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
5 × 4 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Use Bluetooth 4.0 HC-08 Module to Control Addressable LEDs - an Arduino Uno Tutorial
Package Includes :
1 x HC-08 Bluetooth 4.0BLE Serial Port Module
