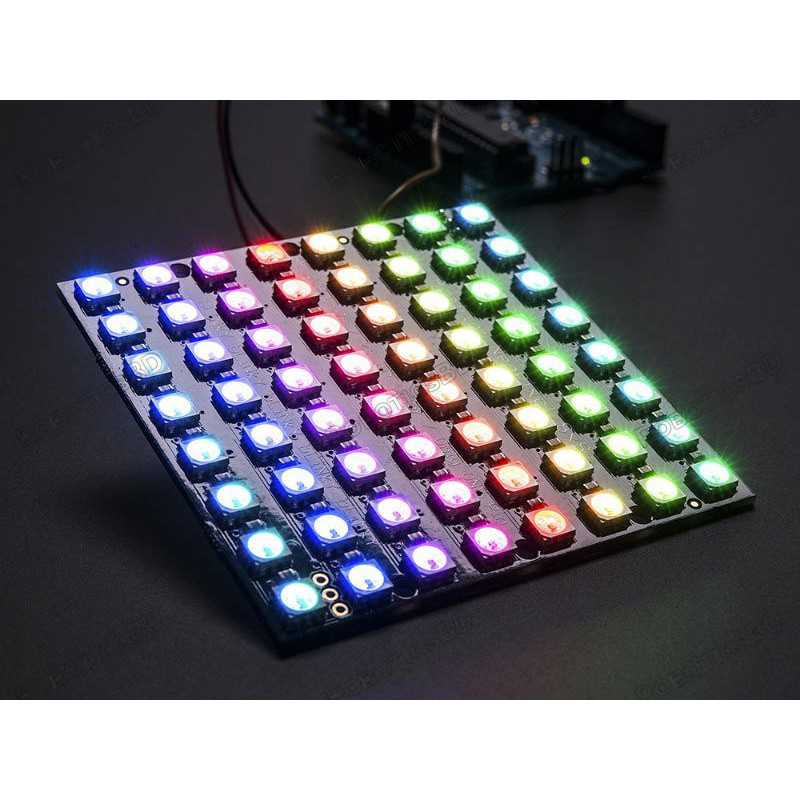

NeoPixel NeoMatrix 8x8 - 64 RGB LED Pixel Matrix WS2812 5050 RGB LED
  • NeoPixel NeoMatrix 8x8 - 64 RGB LED Pixel Matrix WS2812 5050 RGB LED
  • NeoPixel NeoMatrix 8x8 - 64 RGB LED Pixel Matrix WS2812 5050 RGB LED
  • NeoPixel NeoMatrix 8x8 - 64 RGB LED Pixel Matrix WS2812 5050 RGB LED

NeoPixel NeoMatrix 8x8 - 64 RGB LED Pixel Matrix WS2812 5050 RGB LED

RBD-0980

  • Dimensions : 66 x 66 x 3 mm.
  • Weight : 25 gm.
  • Supply Voltage : 5 VDC.
  • Interface : IO .
  • 8 x 8 = 64 RGB.
  • Chip : WS2812.
BDT 425.00
BDT 425.00 BDT 425.00 BDT 425.00 BDT 425.00
Tax included Tax excluded Tax included Tax excluded
BDT 425.00 Tax excluded
BDT 425.00 Tax included
BDT 0.00 Tax
BDT 425.00 Tax excluded
BDT 0.00 Tax
BDT 425.00 Tax included
Quantity
In-Stock
25 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

CJMCU 64 Bit 8×8 RGB LED Driver Development Board a large board with 64 WS2812 RGB LEDs arranged in an 8×8 matrix. Each LED is capable of drawing as much as 60mA (at peak brightness the matrix can draw just over 3.5 Amps at 5 Volts), this adds up so it is suggested to use a 5V 2A power supply. For most users, you’ll see about 1-2A of current per panel. RoboticsBD

There are two 3-pin connection ports to the wiring board. Solder wires to the input port and provide 5VDC to the +5V and ground pins, then connect the DIN pin to your micro-controller and make a common ground from the 5V power supply to the micro-controller/Arduino. RoboticsBD

Additionally, you can chain as many panels together as you’d like. For the second panel, connect the DIN connection to the first panel’s DOUT, connect the ground pins together and power with 5V. It should be noted that after four or more panels you may run low on RAM if you’re using an Arduino Uno and you may need a 5V 10A power supply for so many of these! RoboticsBD

Every stick is equipped with a single data line with a very timing-specific protocol requiring a real-time micro-controller with an 8MHz or faster processor such as an AVR, Arduino, PIC etc. There are solder pads on the back for connecting wires or breadboard pins and two mounting holes for securing this board to many different surfaces. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Supply Voltage : 5 VDC
  2. Interface : IO
  3. Chip : WS2812

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
IC Chip WS2812
Input Supply Voltage (VDC) 5
LED 8×8 (64 RGB)
PCB Size ( L x W ) mm 66 x 66
Weight (gm) 25
Shipment Weight 0.03 kg
Shipment Dimensions 8 × 8 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation :

  1. Bit Banging Step-by-step: Arduino Control of WS2811, WS2812, and WS2812B RGB LEDs
  2. Adafruit NeoPixel NeoMatrix 8x8 - 64 RGB LED Pixel Matrix
  3. Chip : WS2812

Package Includes :

1 x NeoPixel NeoMatrix 8x8 - 64 RGB LED Pixel Matrix WS2812 5050 RGB LED.
