XD-21 LM358 Gain Amplification Module Operational Amplifier Module Robotics Bangladesh
  • XD-21 LM358 Gain Amplification Module Operational Amplifier Module Robotics Bangladesh

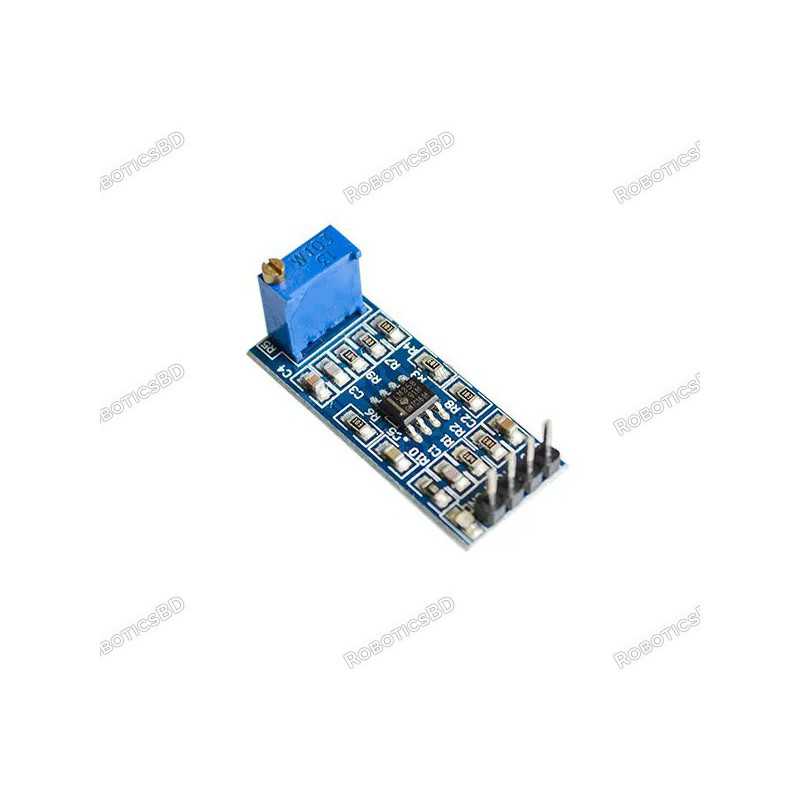

XD-21 LM358 Gain Amplification Module Operational Amplifier Module

RBD-1911

  • LM358 chip onboard.
  • 100 gain of the circuit design.
  • 10K onboard adjustable resistance, you can adjust the magnification.
  • Onboard power indicator.
  • The chip has led major pin can be directly input and output signals.
BDT 120.00
BDT 120.00 BDT 120.00 BDT 120.00 BDT 120.00
Tax included Tax excluded Tax included Tax excluded
BDT 120.00 Tax excluded
BDT 120.00 Tax included
BDT 0.00 Tax
BDT 120.00 Tax excluded
BDT 0.00 Tax
BDT 120.00 Tax included
Quantity
In-Stock
33 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

XD-21 LM358 Gain Amplification Module Operational Amplifier Module is based on the LM358 operational amplifier which is a high-gain, frequency compensated operational amplifier designed to operate from a single power supply over a wide range of voltages. It is used in conventional operational amplifier circuits that need to be operated from a single power rail. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Specifications

  1. On-board LM358 chip
  2. Adjustable gain up to 100x
  3. On-board 10K adjustable resistor for gain adjustment
  4. On-board power indicator
  5. Chip has been drawn out to the main pins for direct input and output of signals
  6. Working Voltage Range: 5 V to 12 V
  7. Board Size: 32.7 x 13.3 mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
IC Chip LM358
Operating Voltage (VDC) 5 ~ 12
PCB Size ( L x W ) mm 34 x 14
Weight (gm) 3
Shipment Weight 0.005 kg
Shipment Dimensions 8 × 7 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x XD-21 LM358 Gain Amplification Module.
