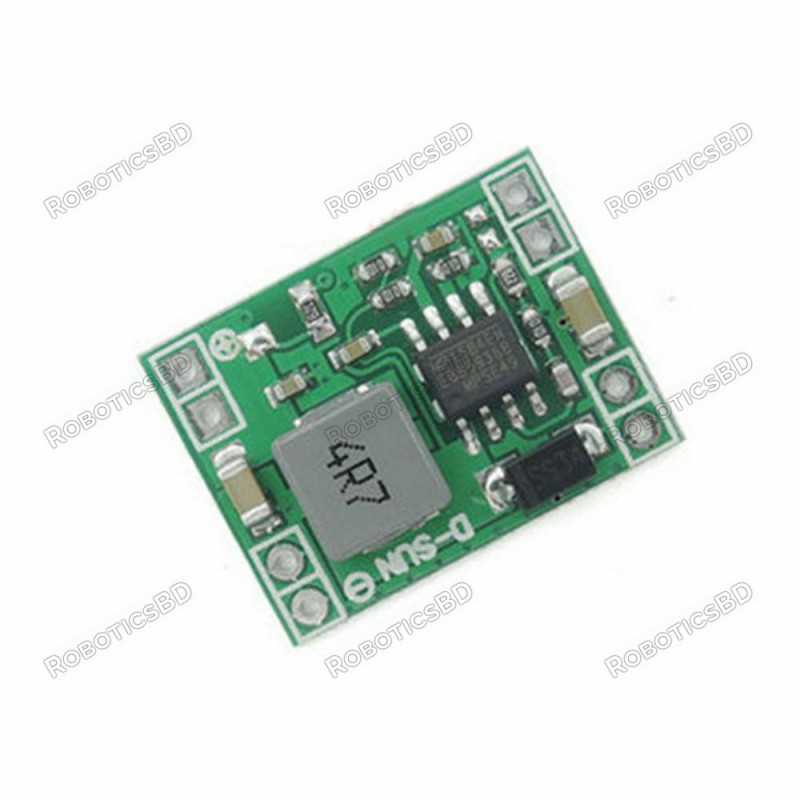

Mini MP1584EN DC-DC BUCK Adjustable Step Down Module

RBD-1769

  • Input Voltage: 4.5V – 28V
  • Output Voltage: 0.8V – 20V
  • Output Voltage Adjustment: On-board potentiometer
  • Output Current:  1.8A (typical), 3.0A (max).
  • Ceramic Capacitor Stable
  • Internal Soft-Start
  • Internally Set Current Limit without a Current Sensing Resistor
BDT 99.00
BDT 99.00 BDT 99.00 BDT 99.00 BDT 99.00
Tax included Tax excluded Tax included Tax excluded
BDT 99.00 Tax excluded
BDT 99.00 Tax included
BDT 0.00 Tax
BDT 99.00 Tax excluded
BDT 0.00 Tax
BDT 99.00 Tax included
Quantity
In-Stock
123 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Mini MP1584 DC-DC 3A Adjustable Buck module is ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter uses an MP1584EN high frequency switching regulator and integrated high voltage power MOSFET. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

It features soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at the insufficient supply voltage.

Small size, light weight, low internal power consumption, and wide input voltage range of 4.5V to 28V makes this module suitable for a variety of different applications where small size and lightweight voltage conversion is needed, including RC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices. RoboticsBD

Applications:

  1. DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects
  2. Robotics
  3. Breadboard power supply
  4. Manual speed adjustment of small DC motors
  5. Power Supply for RC project planes, cars, helicopters
  6. Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack
  7. Receiver/servo power supply
  8. Communications equipment power supply
  9. Mobile equipment power supplies

Note: Set voltage using a voltmeter and adjust to proper output voltage before installing in your device.

Features :

  1. Wide 4.5V to 28V Operating Input Range
  2. High-Efficiency Pulse Skipping Mode for Light Load
  3. Ceramic Capacitor Stable
  4. Internal Soft-Start
  5. Internally Set Current Limit without a Current Sensing Resistor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
IC Chip MP1584EN
Input Voltage (V) 4.5 to 28
Output Voltage(V) 0.8 ~ 20
Max. Output Current (A) 3
Typical Output Voltage(A) 1.8
Typical Switching Frequency(MHz) 1
Maximum Switching Frequency(MHz) 1.5
Conversion Efficiency(%) 96
Output Ripple(mV) <30
Accuracy ±0.5%
Operating Temperature (°C) -50 to 85
Length (mm) 22
Width (mm) 17
Height (mm) 4
Shipment Weight 0.05 kg
Shipment Dimensions 3.5 × 3 × 1.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Mini MP1584 DC-DC 3A Adjustable Buck module.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1769
123 Items

Specific References

EAN13
1769
