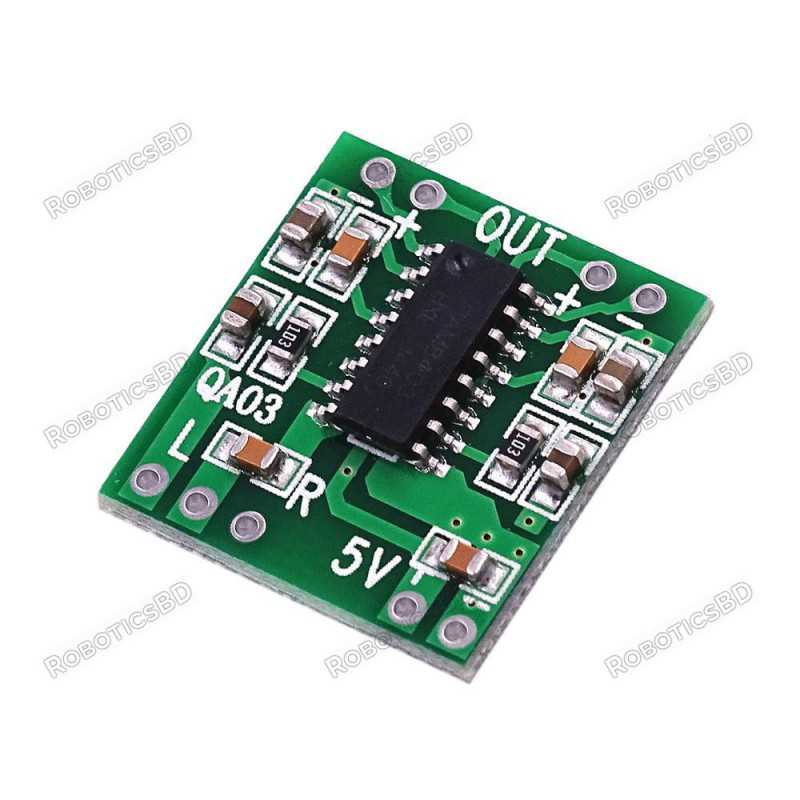

PAM8403 Super Mini Digital Amplifier Board

RBD-1856

  • Dual channel stereo, high output power (3 w + 3 w power @ 5V and 4 ohms load)..
  • Double panel wiring solves crosstalk.
  • Super mini design allows it to be easily placed in a variety of digital products.
  • 3W Output at 10% THD with a 4ΩLoad and 5V Power Supply.
  • Filterless, Low Quiescent Current and Low EMI and Low Noise.
  • Short Circuit Protection and Thermal Shutdown
BDT 40.00
BDT 40.00 BDT 40.00 BDT 40.00 BDT 40.00
Tax included Tax excluded Tax included Tax excluded
BDT 40.00 Tax excluded
BDT 40.00 Tax included
BDT 0.00 Tax
BDT 40.00 Tax excluded
BDT 0.00 Tax
BDT 40.00 Tax included
Quantity
In-Stock
47 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The PAM8403 5V Two-channel Stereo is a 3W+3W, class-D audio amplifier. Allowing it to achieve high-quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Application :
  • Bluetooth Stereo Audio hands-free/headsets
  • In robots that speak or generate sounds to indicate activities
  • Portable Speakers
  • LCD Monitors / TV Projectors
  • Arduino or Raspberry Pi Game Machines
  • Speaker Phones

Features :

  1. Dual channel stereo, high output power (3 w + 3 w power @ 5V and 4 ohms load).
  2. Good sound quality.
  3. Double panel wiring solves crosstalk.
  4. Super mini design allows it to be easily placed in a variety of digital products.
  5. 3W Output at 10% THD with a 4ΩLoad and 5V Power Supply.
  6. Filterless, Low Quiescent Current and Low EMI.
  7. Superior Low Noise.
  8. Short Circuit Protection.
  9. Thermal Shutdown

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 2.5 ~ 5.5
Max Gain 24 dB.
Current Handling Capacity (A) 0.08
Efficiency 87 %.
Amplifier IC PAM 8403.
Load Can direct drive 4 or 8 ohm small speakers.
Dimensions in mm (LxWxH) 21 x 18 x 3
Weight (gm) 5
S/N Ratio (dB) 80
Power supply Rejection ratio -58 dB.
Shipment Weight 0.01 kg
Shipment Dimensions 3 × 2 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x PAM8403 5V Two-channel Stereo Mini Class-D Audio Amplifier.
