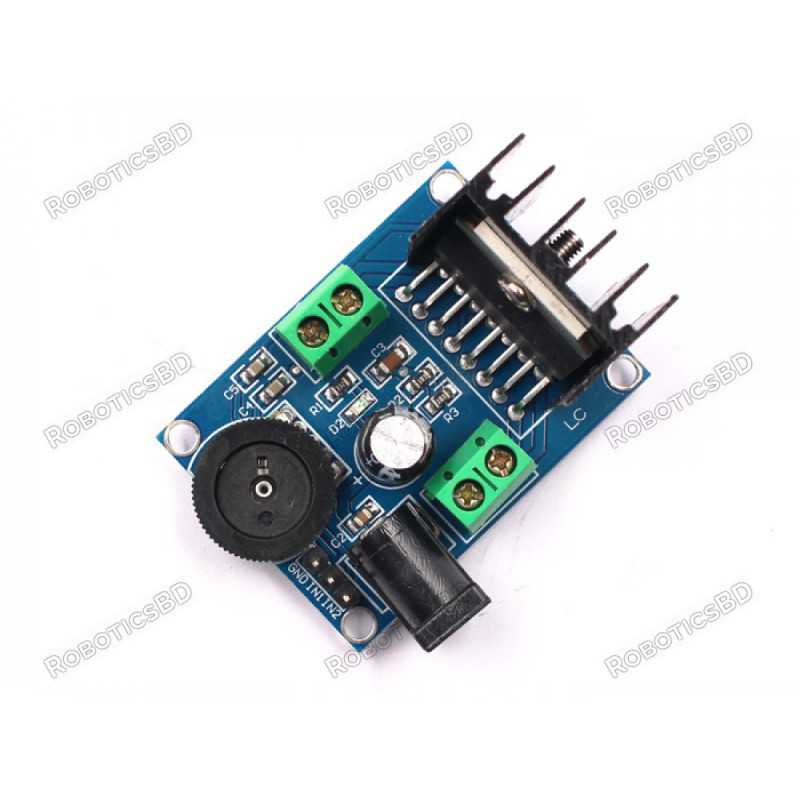

TDA7297 Audio Amplifier Module

RBD-1867

  • Original TDA7297 core technology
  • Easy Plug and Play Operation
  • Dynamic operating Voltage Range: 8 to 16V
  • High fidelity Dual 15W output.
BDT 490.00
BDT 490.00 BDT 490.00 BDT 490.00 BDT 490.00
Tax included Tax excluded Tax included Tax excluded
BDT 490.00 Tax excluded
BDT 490.00 Tax included
BDT 0.00 Tax
BDT 490.00 Tax excluded
BDT 0.00 Tax
BDT 490.00 Tax included
Quantity
In-Stock
15 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Build your own music system with TDA7297 Dual Channel Digital Power Amplifier Module is a newly designed digital audio amplifier board with fine quality is practical to install and use also has good performance. It features a high-efficiency class D audio power amplifier with the latest and original TDA7297 core technology the BTL bridge circuit is more efficient than before.

This product uses the double power supply transformer with a dynamic power supply range from 6V to 18V with high efficiency small quiescent current. Additionally, it is equipped with Perfect protection functions like overvoltage protection and output current limit. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. A strong TDA7297 chip is a digital power amplifier chip, with low idle loss characteristics, which makes it work well and quickly.
  2. Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
  3. It can be used for car vehicle computer speaker, family audio and video, and empty square.
  4. This product has the characteristics of loud sound, the capacitance is large, excellent sound quality.
  5. There is no solder joint on the back of the circuit board, the chip capacitors, and the solder board together, so there is no possibility of a short circuit.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model TDA7297
Operating Voltage Range (VDC) 6 to 18
Output Power (W) 2*15W
Length (mm) 45
Width (mm) 33
Height (mm) 27
Weight (gm) 24
Shipment Weight 0.027 kg
Shipment Dimensions 8 × 11 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x TDA7297 Audio Amplifier Module
