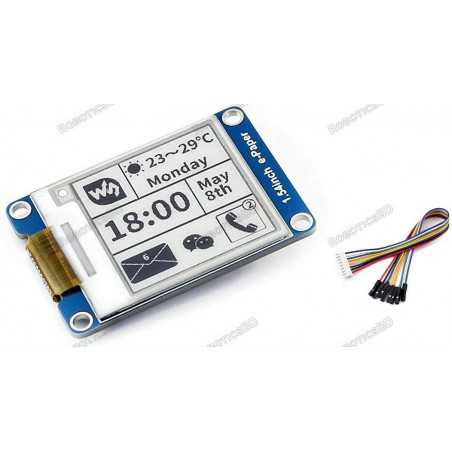

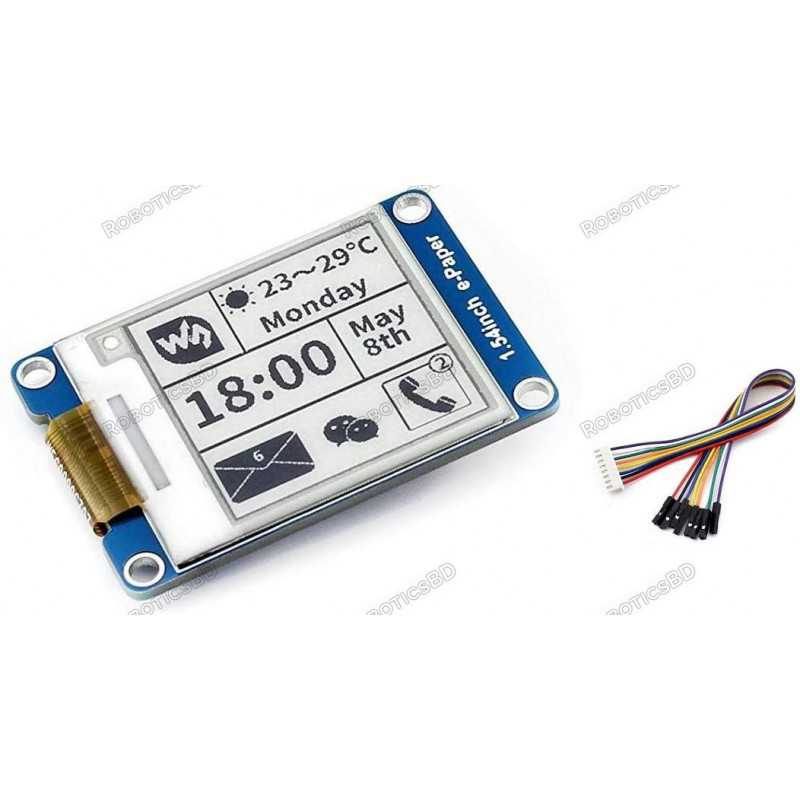

E-Ink Electronic E-paper Display Screen Module 200x200, 1.54inch

RBD-1759
Waveshare

  • Display Resolution: 200 x 200
  • Display Screen Color: Black and White
  • No backlight so keeps displaying last content for a long time even when the power is down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
BDT 1,439.00
BDT 1,439.00 BDT 1,439.00 BDT 1,439.00 BDT 1,439.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,439.00 Tax excluded
BDT 1,439.00 Tax included
BDT 0.00 Tax
BDT 1,439.00 Tax excluded
BDT 0.00 Tax
BDT 1,439.00 Tax included
Quantity
In-Stock
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Waveshare 1.54 inch e-Ink Paper Display Module with SPI Interface comes with 200×200 resolution and embedded controller module. It is communicating via SPI interface and it supports partial refresh. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. No backlight so keeps displaying last content for a long time even when the power is down
  2. Ultra low power consumption, basically power is only required for refreshing
  3. SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
  4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
  5. Wide viewing angle, great viewing effect under sunlight.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 3.3 ~ 5
Interface 3-wire SPI, 4-wire SPI
Display Color Black and White
Grey level 2
Display Resolution 200 x 200
Display Size (inch) 1.54
Partial Refresh Time 0.3s
Full Refresh Time (s) 2
Dot Pitch 0.138 × 0.138
Outline dimension (mm) 48 × 33
Refresh Power 26.4mW(typ.)
Standby Power (mW) <0.017
Viewing Angle >170°
Dimensions in mm (LxWxH) 48 x 34 x 10
Weight (gm) 20
Shipment Weight 0.08 kg
Shipment Dimensions 8 × 7 × 4 cm

Interface:

SYMBOL DESCRIPTION
VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, high active

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Dimensions:

Documentation:

  1. 1.54inch e-Paper Module

Package Includes:

1 x E-Ink Electronic E-paper Display Screen Module 200x200, 1.54inch.
