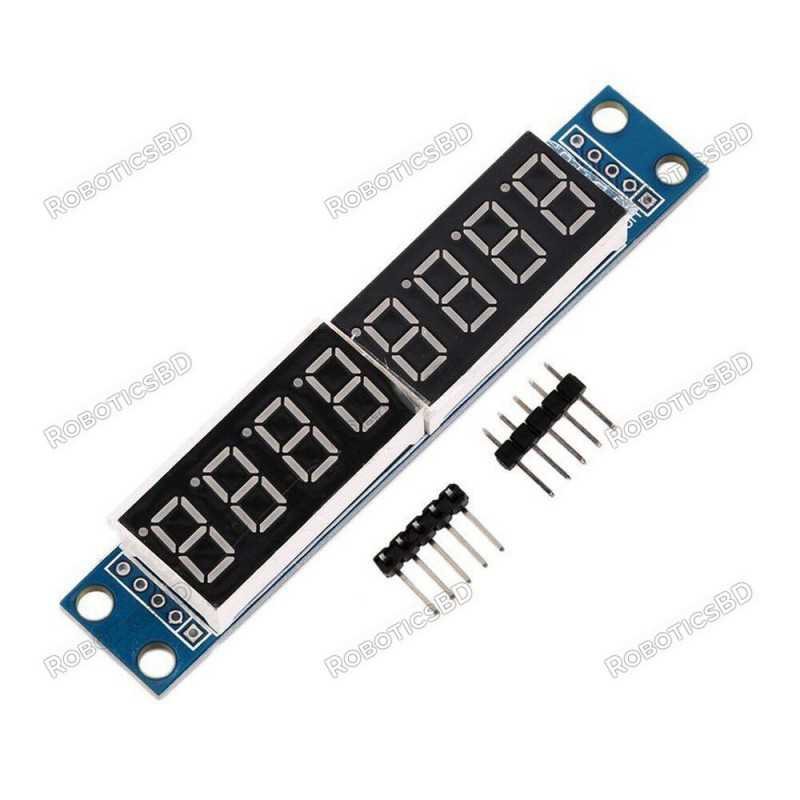

MAX7219 8 Digit Led Tube Display Control Module

RBD-2454

  1. Power: 5V
  2. This module is compatible with 5V and 3.3V microcontrollers.
  3. Material: PCB + Electronic Components
BDT 220.00
BDT 220.00 BDT 220.00 BDT 220.00 BDT 220.00
Tax included Tax excluded Tax included Tax excluded
BDT 220.00 Tax excluded
BDT 220.00 Tax included
BDT 0.00 Tax
BDT 220.00 Tax excluded
BDT 0.00 Tax
BDT 220.00 Tax included
Quantity
21 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

MAX7219 8 Digit Led Tube Display Control Module For Arduino. MAX7219 is an integrated serial input/output common-cathode display driver, which connects your microprocessor to a 7-segment digital LED display with 8 digits.

Wiring instructions(for example, it can connect any IO port, modified the Port Definition in the program):

VCC: 5V
GND: GND
DIN: P00
CS: P01
CLK: P02

Note:
VCC and GND should not be connected reversed, so as not to burn the chip

Features:

  1. 100% Brand new and high quality
  2. MAX7219 digital display control module
  3. This module is compatible with 5V and 3.3V microcontrollers.
  4. You  can use it for Arduino
  5. Only three IO ports are used to drive the eight-digit display. MAX7219 supports flicker-free displays as well as cascading displays.

Package Includes:

1 x MAX7219 8 Digit Led Tube Display Control Module

Product Details
RBD-2454
21 Items

Specific References

EAN13
2454
Comments (0)
Grade
No customer reviews for the moment.
