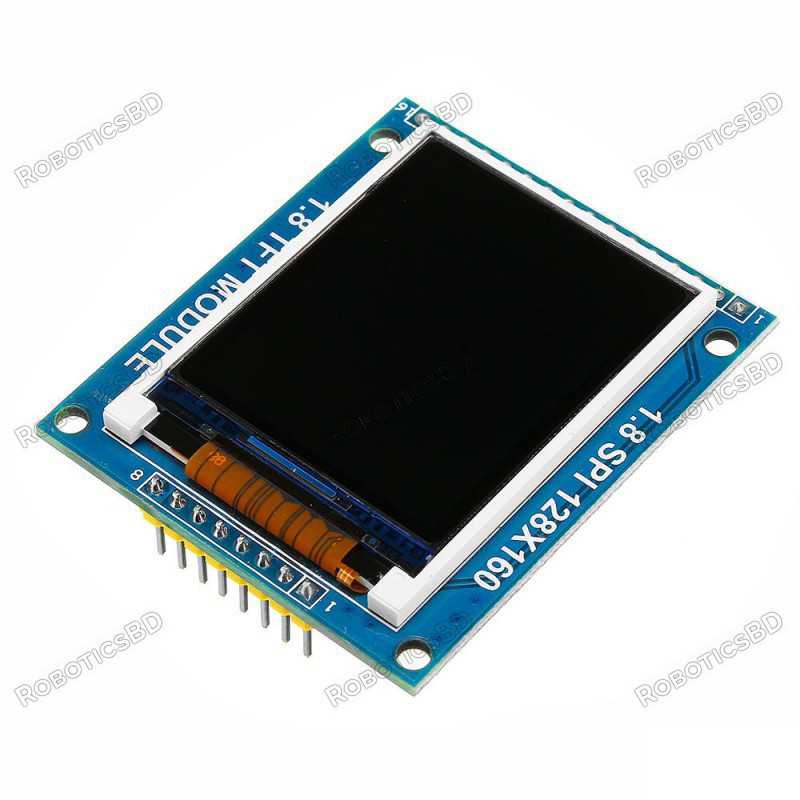

1.8" inch TFT LCD Display module ST7735S 128x160

RBD-0699

  • Display Size: 1.8″
  • Driver IC: ST7735
  • Input Voltage (V): 3.3 to 5
  • Pixel Resolution: 128 x 160
  • Interface Type: SPI
BDT 590.00
BDT 590.00 BDT 590.00 BDT 590.00 BDT 590.00
Tax included Tax excluded Tax included Tax excluded
BDT 590.00 Tax excluded
BDT 590.00 Tax included
BDT 0.00 Tax
BDT 590.00 Tax excluded
BDT 0.00 Tax
BDT 590.00 Tax included
Quantity
In-Stock
15 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This lovely little display breakout is the best way to add a small, colorful, and bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 1.8″ display has 128×160 color pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 18-bit color (262,144 shades!). RoboticsBD

And the 1.8 Inch SPI 128×160 TFT LCD Display Module will always come with the same driver chip so there are no worries that your code will not work from one to the other. RoboticsBD

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. RoboticsBD

It features a microSD card holder so you can easily load full-color bitmaps from a FAT16/FAT32 formatted microSD card. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Connection Diagram:

Features :

  1. Compatible with the 3.3/5V operation voltage level.
  2. It comes with an SD card socket.
  3. Features Backlight Control Circuit
  4. SPI Serial bus-only require 4 IO least
  5. Compatible with QD-UTFT library for Arduino

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Backlight White
Driver IC ST7735
Input Voltage (V) 3.3 to 5
Pixel Resolution 128 x 160
Interface Type SPI
Length (mm) 45
Width (mm) 53
Height (mm) 10
Weight (gm) 16
Shipment Weight 0.02 kg
Shipment Dimensions 10 × 10 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. 1.8" inch TFT LCD Display module User Manual
  2. 1.8" inch TFT LCD Display module ST7735S Specification
  3. 1.8" inch TFT LCD Display module ST7735S Size
  4. 1.8" inch TFT LCD Display module ST7735S schematic
  5. Single-Chip TFT Controller/Driver ST7735S
  6. Arduino IDE usage illustration
  7. Other software installation
  8. STM32 Keil use tutorial
  9. PC to LCD2002
  10. Image to LCD2002
  11. Wikipage
  12. Run Arduino Demo in spi model

Package Include:

1 x 1.8" inch TFT LCD Display module ST7735S 128x160
