If you want to add some visual output to your Arduino projects, you’ll need a display. If you need only a little to display, the Standard LCD 16x2 Display is a quite good solution. RoboticsBD

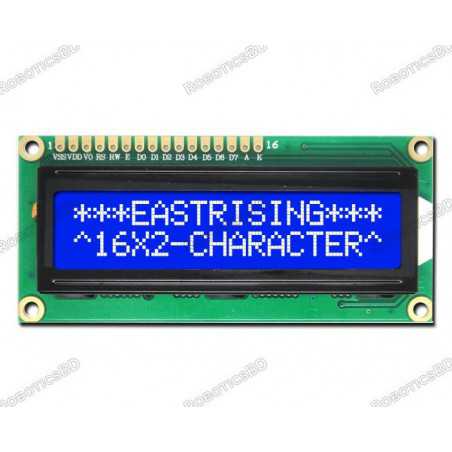

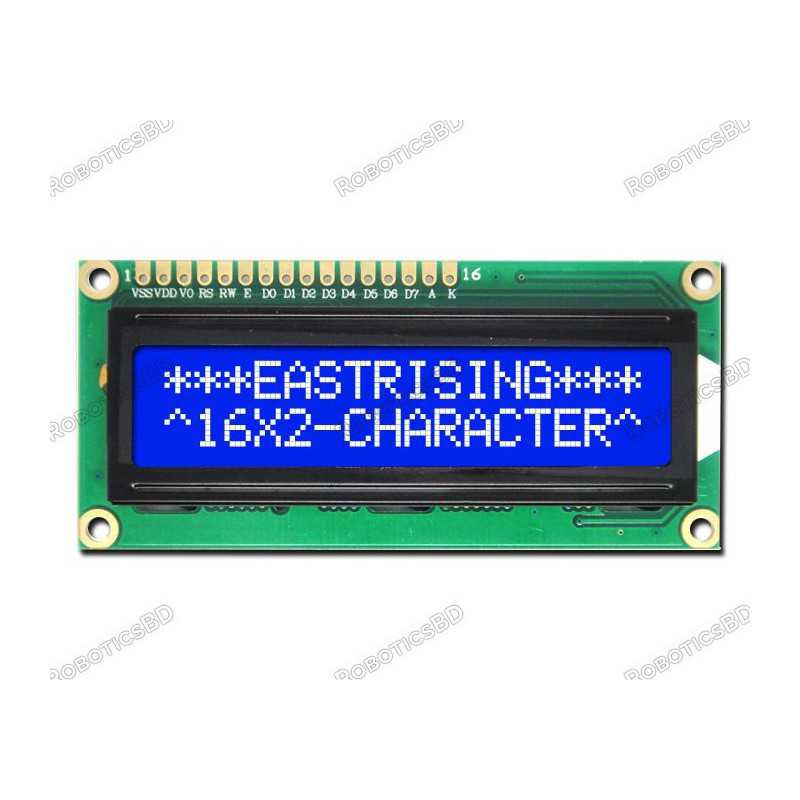

This is Standard LCD 16x2 that provides a simple and cost-effective solution for adding a 16×2 Black on RGB Liquid Crystal Display into your project. The display is 16 character by 2 line display that has a very clear and high contrast black/white text upon a yellow/Blue background/backlight.
This is the great yellow/blue backlight LCD Display. It is fantastic for Arduino-based projects. This Standard LCD 16x2 with Yellow/Blue Backlight is very easy to interface with Arduino or Other Microcontrollers.
The values shown on the display can be either simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing. RoboticsBD
One thing to consider is you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily there exists an I2C adapter that you can solder right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding. We have the same LCD module with a pre-assembled I2C adapter, click on the name below to check it. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: This is Standard LCD 16x2 where color is BLUE (white text on blue background)
Features :
- 16 characters wide, 2 rows
- Black/White text on the yellow/blue background
- Single LED backlight included can be dimmed easily with a resistor or PWM.
- Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Model |
LCD1602 |
| Characters |
1-15 |
| Character Color |
White |
| Backlight |
Blue |
| Input Voltage (V) |
5 |
| Length (mm) |
36 |
| Width (mm) |
80 |
| Height (mm) |
10 |
| Weight (gm) |
30 |
| Shipment Weight |
0.033 kg |
| Shipment Dimensions |
9 × 5 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x Standard LCD 16x2
