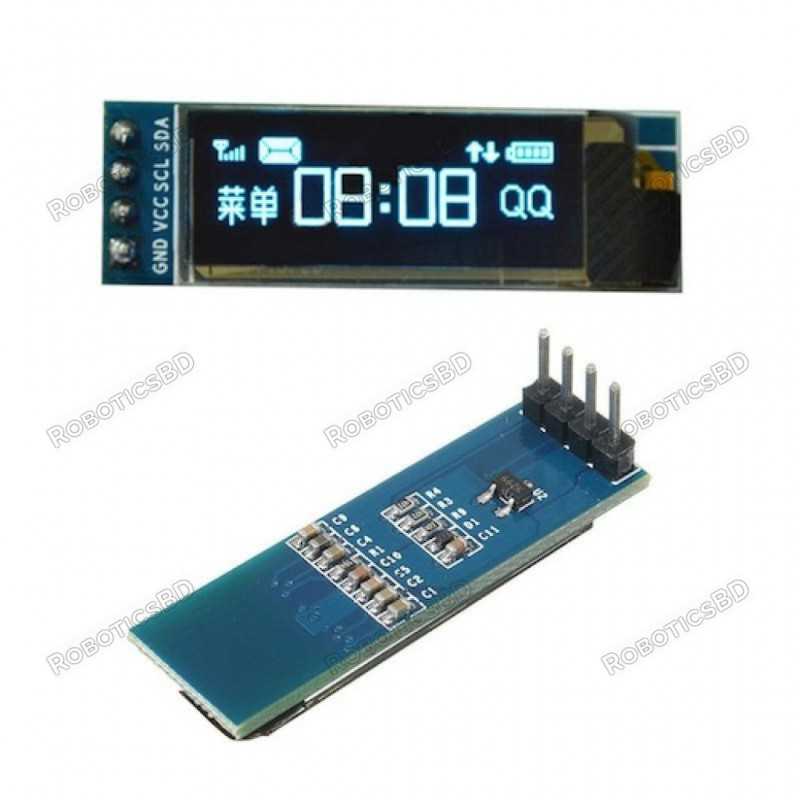

OLED Display Module 0.91 Inch

RBD-1634

  • Size: 0.91 inch
  • Resolution: 128 x 32
  • Controlling Chip: SSD1306
  • Display Area: 22.384 x 5.584mm
  • Driving Voltage: 3-5V
  • Operating Temperature: -40~70 celsius
  • Interface Type: IIC
  • Light Color: White
BDT 320.00
BDT 320.00 BDT 320.00 BDT 320.00 BDT 320.00
Tax included Tax excluded Tax included Tax excluded
BDT 320.00 Tax excluded
BDT 320.00 Tax included
BDT 0.00 Tax
BDT 320.00 Tax excluded
BDT 0.00 Tax
BDT 320.00 Tax included
Quantity
In-Stock
7 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This 0.91” I2C OLED Display is an OLED monochrome 128×32 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display.  The driver IC is SSD1306 with the I2C interface. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3V-5V microcontroller, such as Arduino.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Pin Definition:

1.GND: Power ground
2.VCC: Power positive
3.SCL: Clock wire
4.SDA: Data wire.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Display Size 0.91 Inch
Resolution 128 x 32 Pixels
Controlling Chip SSD1306
Display Area 22.384 x 5.584mm
Driving Voltage 3-5V
Interface Type IIC
Operating Temperature -40º~70º Celsius
Pixel Color White
Length (mm) 38.0
Width (mm) 12.0
Height (mm) 2.6
Weight (gm) 3
Shipment Weight 0.005 kg
Shipment Dimensions 5 × 8 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 0.91 Inch I2C/IIC OLED Display.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1634
7 Items

Specific References

EAN13
1634
