1.3 Inch I2C OLED Display Module 4pin- Blue Robotics Bangladesh
  • 1.3 Inch I2C OLED Display Module 4pin- Blue Robotics Bangladesh

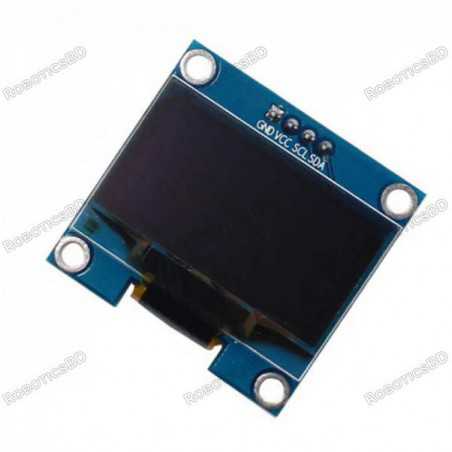

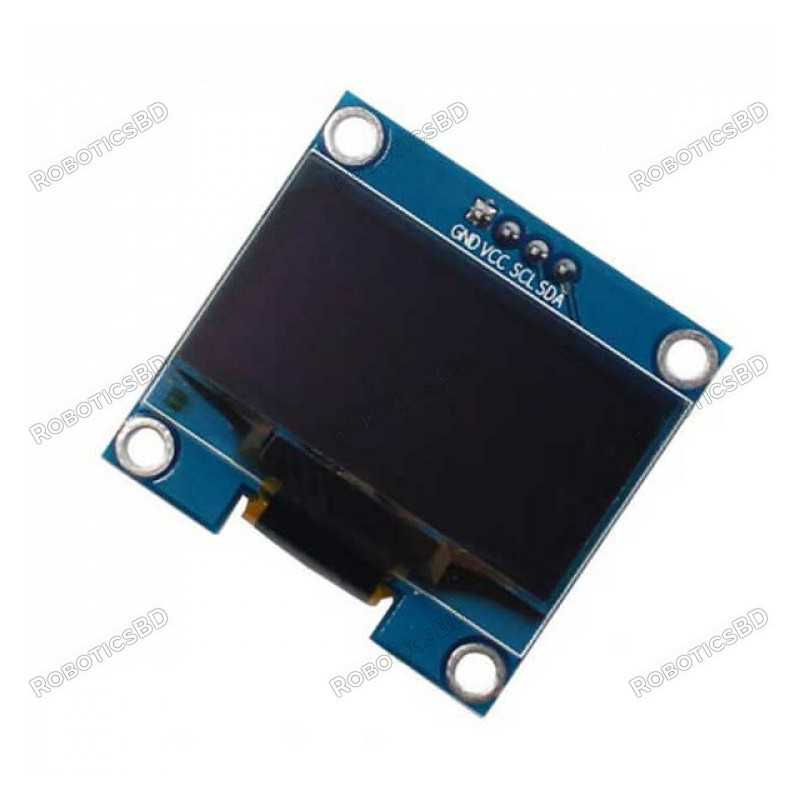

1.3 Inch I2C OLED Display Module 4pin- Blue

RBD-1064

  • Size: 1.3 inch
  • Resolution: 128 x 64
  • Controlling Chip: SSH1106
  • Driving Voltage: 3.3-5V
  • Operating Temperature: -40~70 celsius
  • Interface Type: IIC
  • Light Color: Blue

If you want to purchase White color 1.3 inch OLED display module click here

BDT 630.00
BDT 630.00 BDT 630.00 BDT 630.00 BDT 630.00
Tax included Tax excluded Tax included Tax excluded
BDT 630.00 Tax excluded
BDT 630.00 Tax included
BDT 0.00 Tax
BDT 630.00 Tax excluded
BDT 0.00 Tax
BDT 630.00 Tax included
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a 1.3 inch blue OLED display module. The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128×64. The package includes a display board, display, 4 pin male header pre-soldered to board. RoboticsBD

OLED (Organic Light-Emitting Diode) is a self-light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays. RoboticsBD

OLEDs basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL). By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively. The holes and electrons combine inside the EML to form excitons, after which electroluminescence occurs. The transfer material, emission layer material, and choice of electrode are the key factors that determine the quality of OLED components. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note: Product images/ Components brand may vary from actual product as our stock rotates.

  • Pin Details:
    1. GND (power ground)
    2. VCC (positive power supply)
    3. SCL (clock line)
    4. SDA (data line)

    Features:

    1. Only Need 2 I/O Port to Control
    2. Resolution : 128×48 pixels
    3. Color: Blue
    4. Fully Compatible with Arduino
    5. Working temperature: -30°C ~ 70°C
    6. Factory configured for SPI protocol (can be easily changed to IIC)

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Operating Voltage 3.3V-5V DC
    Interface type IIC interface
    Display Color Blue
    High Resolution 128 x 64
    Driver IC SH1106
    Display Area 29.42 x 14.7mm
    Operating temperature -40° to 70° C
    Length (mm) 35.5
    Width (mm) 33.5
    Height (mm) 3
    Weight (gm) 6
    Shipment Weight 0.01 kg
    Shipment Dimensions 5 × 5 × 2 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    1. SPI/I2C Library for Arduino
    2. GFX Library for Arduino

    Package Includes:

    1 x 1.3" OLED Module White and Blue Color 128X64

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-1064
1 Item

Specific References

EAN13
1064
