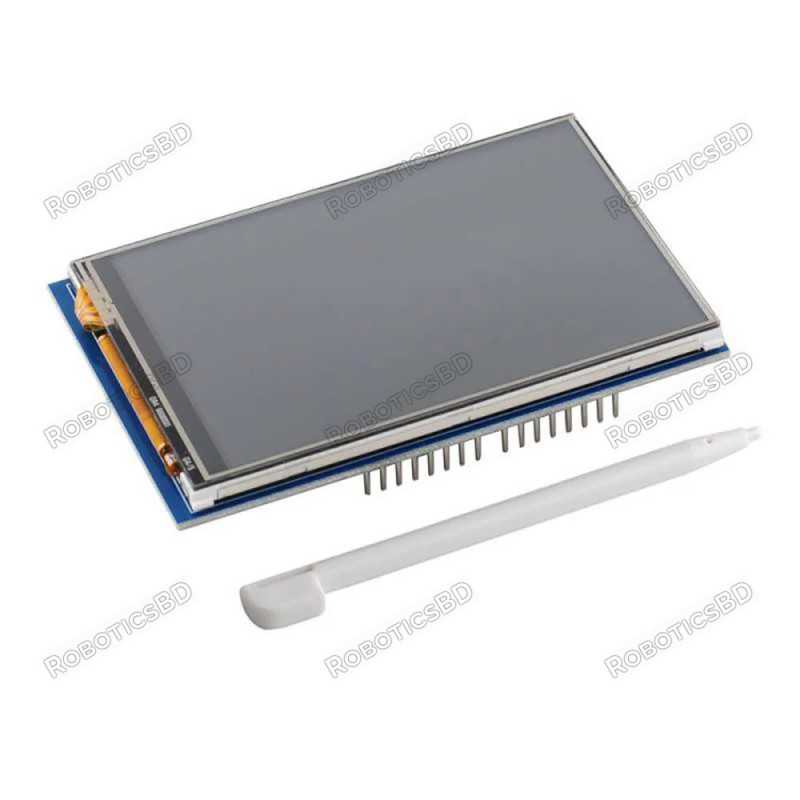

The 3.5 inch TFT LCD Display Shield for Arduino Uno is fully assembled, tested and ready to go, no soldering! Simply plug it in and load up a library – you’ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board. RoboticsBD
So spice up your Arduino UNO project with a beautiful large screen display shield with a built-in microSD card connection. This TFT display is big (3.5″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades)!
The Display comes with 480×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- 3.5″ diagonal LCD TFT display, with bright 4 white-LED backlights, default state: on
- It can control the backlight to connect the transistor to a digital pin
- 480×320 Pixels, with colorful and 18-bit, 262,000 different kinds of shade
- 8-bit digital interface, plus 4 control lines
- IL9486 Driver
- With Tocuh
Connect to Arduino:
| Interface Definition |
| Number |
Pin Label |
Pin Description |
| 1 |
LCD_RST |
LCD bus reset signal, low level reset |
| 2 |
LCD_CS |
LCD bus chip select signal, low level enable |
| 3 |
LCD_RS |
LCD bus command / data selection signal,low level: command, high level: data |
| 4 |
LCD_WR |
LCD bus write signal |
| 5 |
LCD_RD |
LCD bus read signal |
| 6 |
GND |
Power ground |
| 7 |
5V |
5V power input |
| 8 |
3V3 |
3.3V power input, this pin can be disconnected |
| 9 |
LCD_D0 |
LCD 8-bit data Bit0 |
| 10 |
LCD_D1 |
LCD 8-bit data Bit1 |
| 11 |
LCD_D2 |
LCD 8-bit data Bit2 |
| 12 |
LCD_D3 |
LCD 8-bit data Bit3 |
| 13 |
LCD_D4 |
LCD 8-bit data Bit4 |
| 14 |
LCD_D5 |
LCD 8-bit data Bit5 |
| 15 |
LCD_D6 |
LCD 8-bit data Bit6 |
| 16 |
LCD_D7 |
LCD 8-bit data Bit7 |
| 17 |
SD_SS |
SD card SPI bus chip select signal, low level enable |
| 18 |
SD_DI |
SD card SPI bus MOSI signal |
| 19 |
SD_DO |
SD card SPI bus MISO signal |
| 20 |
SD_SCK |
SD card SPI bus clock signal |
Interfacing with Arduino:
- Program Download (3.5inch_Arduino_8BIT_Module_ILI9486_MAR3501_V1.1)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Display Color |
RGB 65K color |
| SKU |
MAR3501 Touch Screen |
| Screen Size |
3.5(inch) |
| Type |
TFT |
| Driver IC |
ILI9486 |
| Resolution |
480*320 (Pixel) |
| Module Interface |
8-bit parallel interface |
| Active Area |
73.44*48.96(mm) |
| Module PCB Size |
85.49*55.63(mm) |
| Operating Temperature |
-20℃~70℃ |
| Storage Temperature |
-40℃~70℃ |
| Operating Voltage |
5V/3.3V |
| Power Consumption |
TBD |
| Product Weight(Package containing) |
|
| Shipment Weight |
0.053 kg |
| Shipment Dimensions |
14 × 10 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- LCD WIKI
- 3.5inch_Arduino_8BIT_Module_MAR3501_User_Manual_EN.pdf
- datasheet_ILI9486.pdf
- QD3501 Specification
- Size
Package Includes:
1 x 3.5inch Arduino Display-UNO
1 x Stylus.
