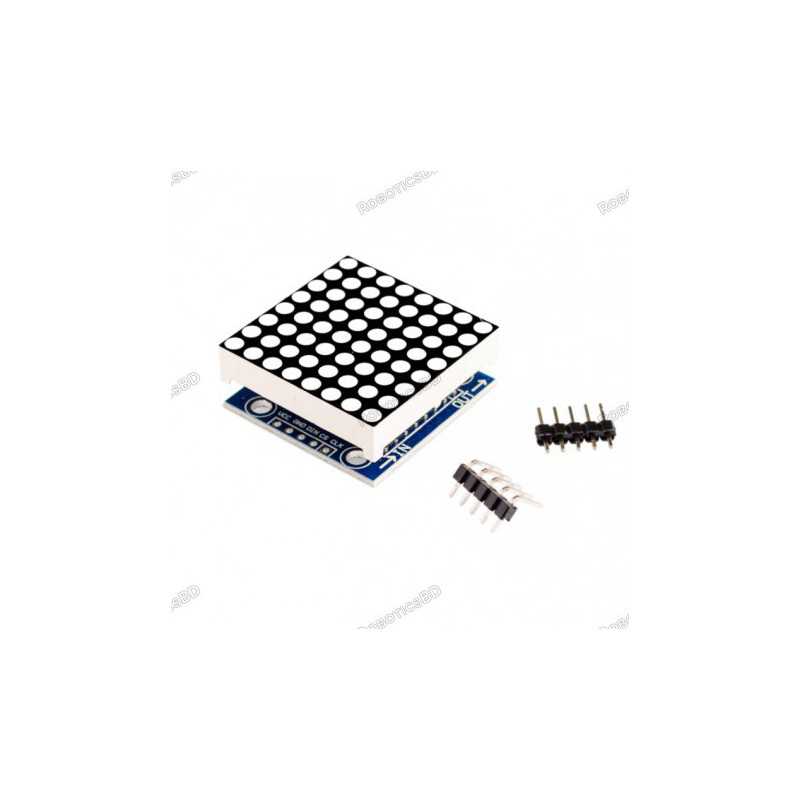

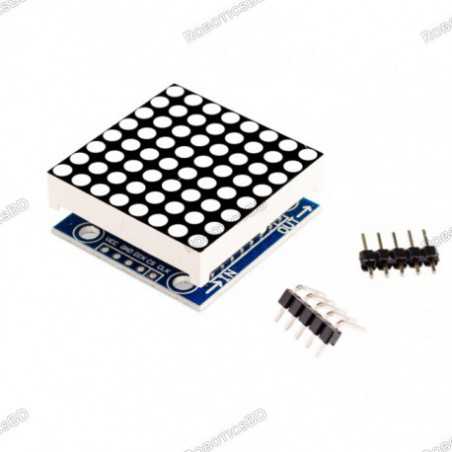

This is Dot Led Matrix Module incorporating MAX7219 Driver chip. By using this dot LED module in your upcoming project, you will be able to add some great cool animation. RoboticsBD
The individual module features 8×8 LED’s, each controlled very precisely by the MAX7219 driver to generate the color pattern you wish. The great advantage of using this is users will have control over all of the 64 LED by just connecting 3 output communication wires to microcontrollers like Arduino etc. RoboticsBD
Connecting the two modules is also very easy. Only connect the output pins of the previous breakout board to the input pins of the new module, thus with such arrangement, you can connect as many DOT LED Modules to the Arduino
The MAX7219 Dot Led Matrix Module is a serial input common-cathode driver that interfaces micro-controllers to LED matrices. All common micro-controllers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your microcontroller projects. Only one external register is used to set the segment current of each LED. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Pin Connection
Dot LED Module to the Arduino
Vcc – 5V
GND – GND
DIN – Pin 12
CS – Pin 10
CLK – Pin 11
Features :
- Requires only 3 communication wires of MCU
- Cascading multiple Matrix LED Module is very easy
- Size of the display is very compact
- The PCB features M3 holes for mounting.
- 8x8 common cathode display
- Operating voltage: 5V
- Dimensions: 3.2 cm x 3.2 cm x 1.3 cm 4x 3mm
- Mounting holes
- Connections: VCC, GND, DIN, CS, CLK
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Driver IC |
MAX7219 |
| Input Voltage (V) |
5 |
| Max. Operating Current (mA) |
320 |
| LED Color |
Red |
| Length (mm) |
32 |
| Width (mm) |
32 |
| Height (mm) |
6 |
| PCB Size ( L x W ) mm |
50 x 32 |
| Weight (gm) |
20 |
| Shipment Weight |
0.022 kg |
| Shipment Dimensions |
7 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x MAX7219 Dot Led Matrix LED Display Module.
