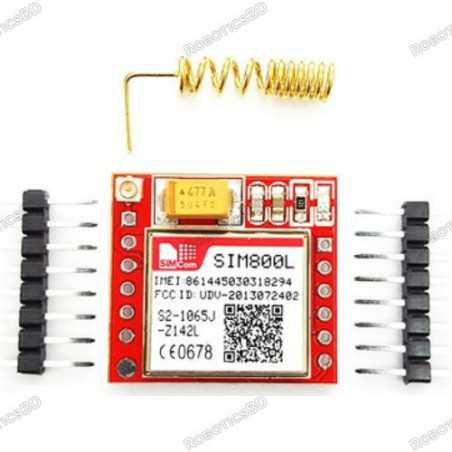

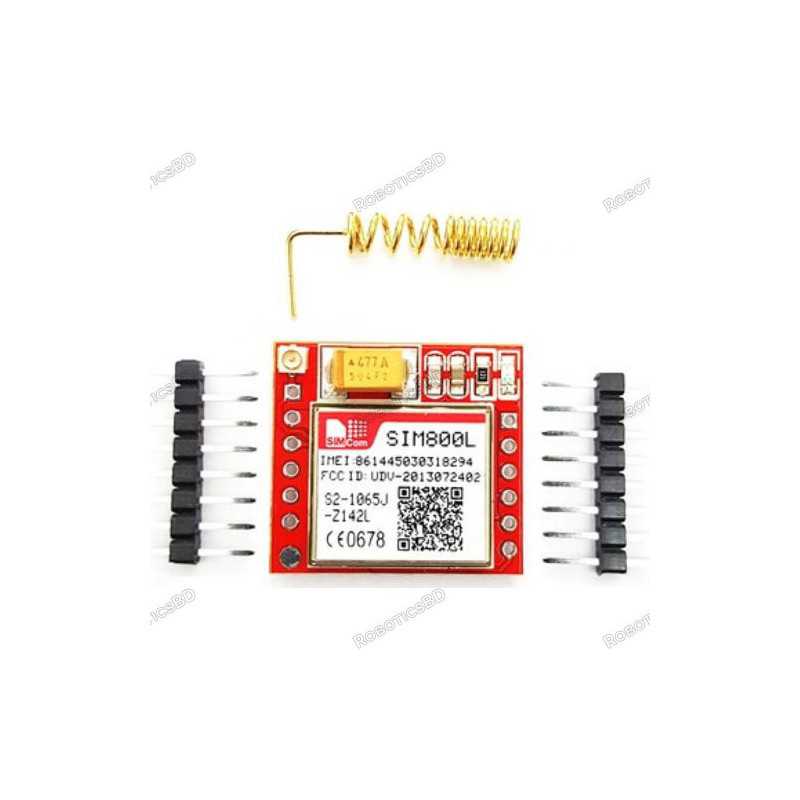

This is Small SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port with the antenna, in this module two antennas have been included.
SIM800L GSM/GPRS module is a miniature GSM modem, which can be integrated into a great number of IoT projects. You can use this module to accomplish almost anything a normal cell phone can; SMS text messages, make or receive phone calls, connecting to the internet through GPRS, TCP/IP, and more! To top it off, the module supports quad-band GSM/GPRS network, meaning it works pretty much anywhere in the world
First is made of wire (which solders directly to NET pin on PCB) – very useful in narrow places. Second – PCB antenna – with double-sided tape and attached pigtail cable with IPX connector. This one has better performance and allows to put your module inside a metal case – as long the antenna is outside. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Caution: Use a resistor divider circuit before interfacing it with Arduino to avoid the damage to the module.
Features :
- TTL serial port for serial port, you can link directly to the micro-controller.
- Don’t need MAX232.
- Power module automatically boots, homing network.
- Onboard signal lights all the way.
- It flashes slowly when there is a signal, it flashes quickly when there is no signal.
This SIM800L breakout board is ideal for projects that needs to save space. This board draws a maximum of 2 A with an input voltage of 3.7 V to 4.2 V. This means you must not connect its pins directly to a 5 V Arduino! It doesn't even run on 3.3 V.
The solution is either to use a regulator or just have the SIM800L draw from a Li-Po (cellphone) battery.
Antennas are essential for this kind of module especially if your project is indoors. Without an antenna, there would not be enough transmitting power for the SIM800L to perform GSM services such as calls and SMS.
Interfacing with Arduino :
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| IC Chip |
SIM800L |
| Operating Voltage (VDC) |
3.7 ~ 4.2 |
| Peak Current (A) |
2 |
| Shipment Weight |
0.01 kg |
| Shipment Dimensions |
9 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation :
- Send Receive SMS & Call with SIM800L GSM Module & Arduino (LastMinuteEngineers)
- Github Link
Package Includes :
1 x SIM800L Mini GPRS GSM Module
1 x PCB Antenna.
